73580 (520 Lxi) - Toro Garden Tractor (SN: 200000001 - 200999999) (2000) AIR FILTER/MUFFLER ASSEMBLY Parts Diagram

Garden Tractor

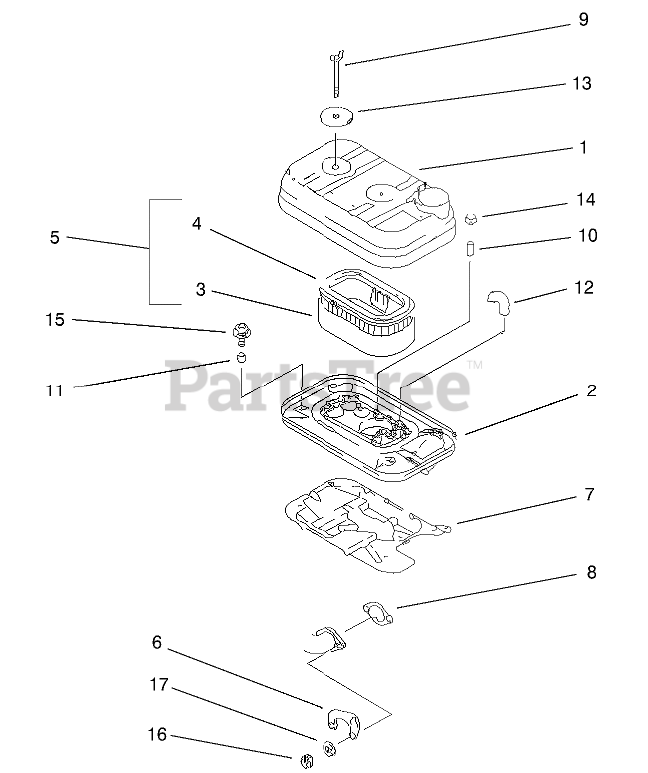

AIR FILTER/MUFFLER ASSEMBLY Parts Diagram

  • Title
1

Toro 95-9896

CASE - AIR FILTER

$

$

Not available

2

Toro 95-9897

CASE - AIR FILTER

$126.99

$

Usually ships in 3-6 days

0

3

Toro 95-9898

ELEMENT - FOAM AIR FILTER

$6.99

$

In Stock, Qty 20+

0

4

Toro 95-9899

ELEMENT - AIR FILTER

$

$

Not available

5

Toro 95-9950

ELEMENT ASM - AIR FILTER

$

$

Not available

6

Toro 95-9951

BRACKET

$32.99

$

Usually ships in 3-6 days

0

7

Toro 95-9952

BRACKET

$

$

Not available

8

Toro 95-9953

GASKET -EXHAUST PIPE

$

$

Not available

9

$

$

Not available

10

Toro 95-9954

COLLAR

$

$

Not available

11

Toro 95-9955

COLLAR

$

$

Not available

12

$

$

Not available

13

Toro 95-9957

WASHER

$19.99

$

Usually ships in 3-6 days

0

14

Toro 95-9958

SCREW - PAN WSP

$

$

Not available

15

Toro 95-9959

SCREW - PAN WSP

$

$

Not available

16

Toro 33013-00

NUT-HEX

$2.49

$

In Stock, only 3 left!

0

17

Toro 93-8655

WASHER-SPRING (6MM)

$1.49

$

Usually ships in 3-6 days

0
