73570 (520 xi) - Toro Garden Tractor (SN: 230000001 - 230999999) (2003) TIE ROD, SPINDLE AND FRONT AXLE ASSEMBLY Parts Diagram

Garden Tractor

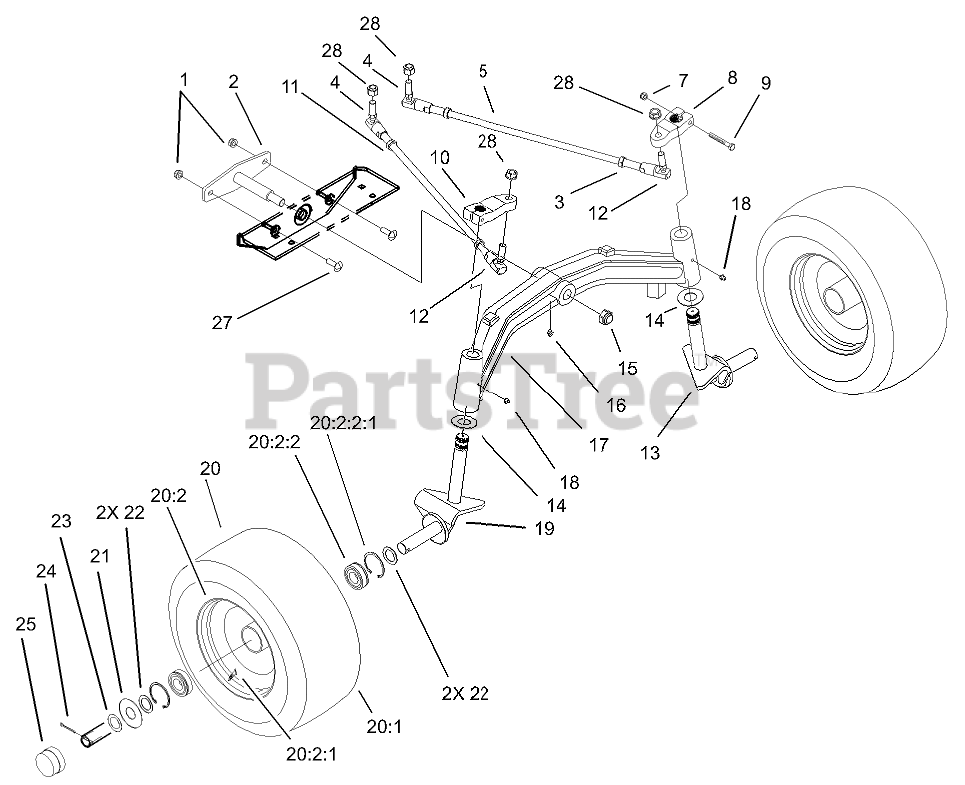

TIE ROD, SPINDLE AND FRONT AXLE ASSEMBLY Parts Diagram

  • Title
1

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

2

Toro 94-2205-03

Pin-Pivot

$

$

Not available

3

Toro 3220-5

NUT-JAM

$1.99

$

In Stock, Qty 19

0

4

Toro 94-7539

BALLJOINT-THREAD, LH

$78.99

$

In Stock, only 4 left!

0

5

Toro 100-1121

ROD-TIE

$

$

Not available

7

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 94-2197

ARM-STEERING, LH

$152.99

$

Usually ships in 3-6 days

0

9

Toro 322-32

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

10

Toro 94-2196

ARM-STEERING, RH

$

$

Not available

11

Toro 3220-12

NUT-HJ (LH THREAD)

$2.49

$

Usually ships in 3-6 days

0

12

Toro 98-8086

BALLJOINT-THREAD. RH

$78.99

$

In Stock, only 2 left!

0

13

Toro 94-7537-03

SPINDLE-LH

$

$

Not available

14

Toro 9548

WASHER-THRUST

$

$

Not available

15

Toro 3296-61

NUT-LOCK

$15.99

$

Usually ships in 3-6 days

0

16

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

17

Toro 94-7568-03

AXLE-FRONT

$

$

Not available

18

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

19

Toro 94-7536-03

SPINDLE-RH

$

$

Not available

20

Toro 99-3695

Wheel & Tire ASM

$

$

Not available

20:1

$142.99

$

Usually ships in 3-6 days

0

20:2

Toro 94-7541

RIM ASM

$

$

Not available

20:2:1

Toro 5108

VALVE

$6.99

$

In Stock, Qty 14

0

20:2:2

Toro 94-7538

BEARING

$62.99

$

Usually ships in 3-6 days

0

20:2:2:1

Toro 94-2053

Ring-Snap
(Superseded to 94-7538)

$62.99

$

Usually ships in 3-6 days

0

Toro 112819

TUBE-INNER

Note: Not illustrated

$46.99

$

Usually ships in 3-6 days

0

21

Toro 95-4060

WASHER-WHEEL

$3.49

$

In Stock, only 2 left!

0

22

Toro 9202514

Washer
(Superseded to 920251)

$3.49

$

In Stock, only 2 left!

0

23

Toro 9202524

WASHER

$1.99

$

Usually ships in 3-6 days

0

24

Toro 3272-18

PIN-COTTER

$2.99

$

Usually ships in 3-6 days

0

25

Toro 94-7871

CAP-DUST

$5.49

$

Usually ships in 3-6 days

0

27

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

28

Toro 98-8089

NUT-LOCK

$2.49

$

In Stock, only 1 left!

0
