73570 (520 xi) - Toro Garden Tractor (SN: 230000001 - 230999999) (2003) LOWER PARKING BRAKE ASSEMBLY Parts Diagram

Garden Tractor

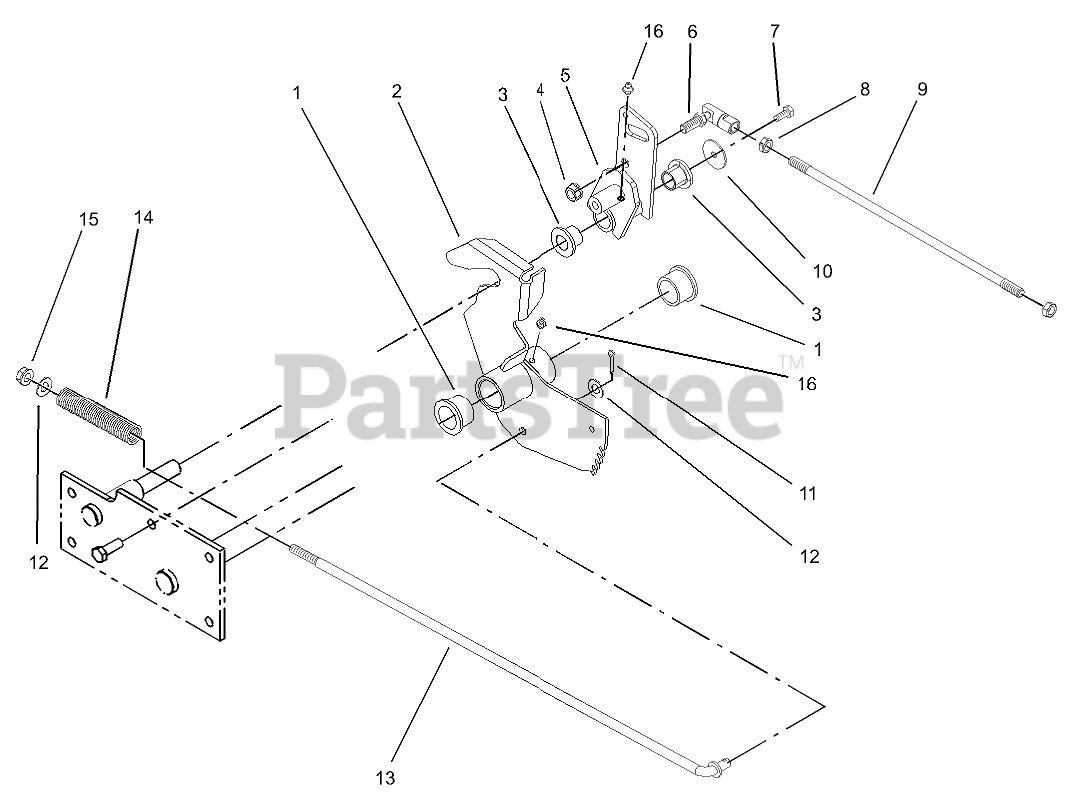

LOWER PARKING BRAKE ASSEMBLY Parts Diagram

  • Title
1

Toro 94-7574

BUSHING-FLANGED

$14.99

$

Usually ships in 3-6 days

0

2

Toro 94-2375-03

PLATE-PIVOT, BRAKE

$

$

Not available

3

Toro 94-7569

BUSHING

$9.49

$

Usually ships in 3-6 days

0

4

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

5

Toro 94-2488-03

PIVOT-HYDRO

$

$

Not available

6

Toro 94-7573

END-TIE ROD, LH

$45.99

$

Usually ships in 3-6 days

0

7

Toro 94-7955

SCREW-HH

$

$

Not available

8

Toro 3220-16

NUT-JAM, LH

$1.99

$

In Stock, Qty 5

0

9

Toro 94-2498

ROD-PIVOT TO PEDAL

$

$

Not available

10

Toro 3256-55

WASHER-FLAT

$5.49

$

In Stock, Qty 11

0

11

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

12

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 94-2393

ROD-BRAKE

$

$

Not available

14

Toro 94-7906

SPRING-COMPRESSION

$

$

Not available

15

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

16

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0
