73570 (520 xi) - Toro Garden Tractor (SN: 230000001 - 230999999) (2003) GRILL AND SIDE PANEL ASSEMBLY Parts Diagram

Garden Tractor

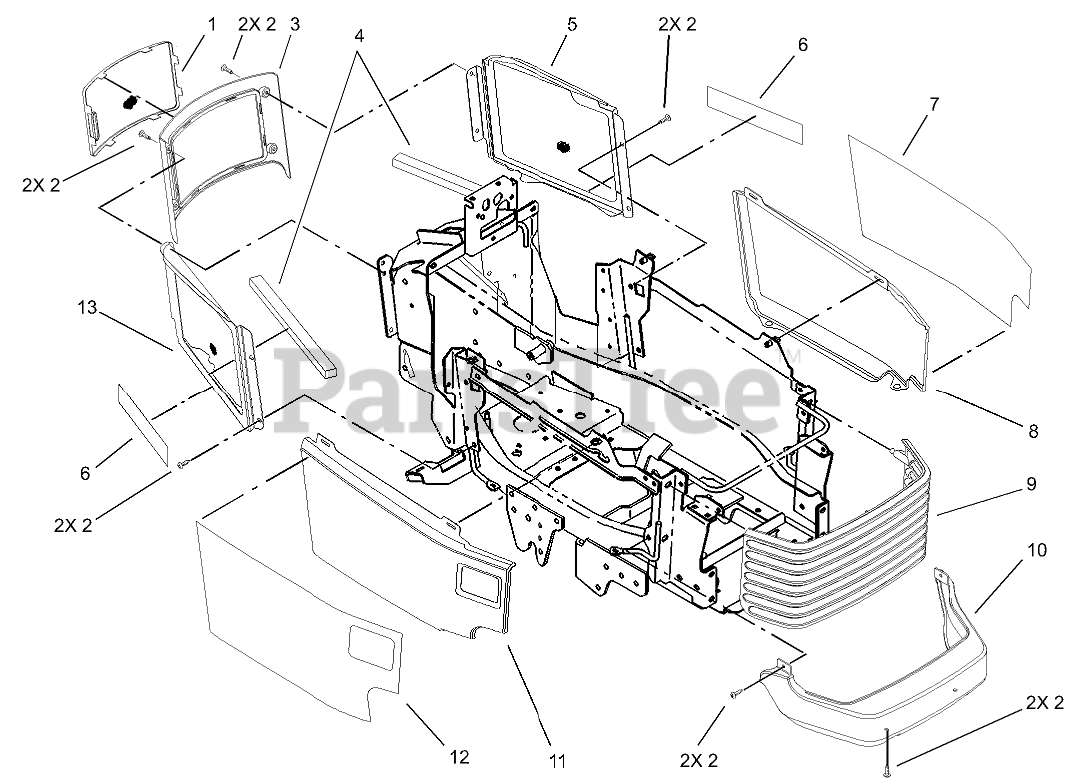

GRILL AND SIDE PANEL ASSEMBLY Parts Diagram

  • Title
1

Toro 98-8714-03

SCREEN-REAR

$

$

Not available

2

Toro 92-7020

SCREW-HH

$

$

Not available

3

Toro 94-2093

COVER-REAR

$

$

Not available

4

Toro 95-4231

FOAM-SEAL, SIDE SCREEN

$37.99

$

Usually ships in 3-6 days

0

5

Toro 95-4114-03

Cover-Side LH

$

$

Not available

6

Toro 106-5834

DECAL-520 XI

$

$

Not available

7

Toro 106-5837

Decal-Hood, LH

$

$

Not available

8

Toro 94-2088-01

PANEL-SIDE, LH HOOD

$

$

Not available

9

Toro 94-2104

GRILL

$

$

Not available

10

Toro 94-2103

COVER-BUMPER

$

$

Not available

11

Toro 94-2087-01

PANEL-SIDE, RH HOOD

$

$

Not available

12

Toro 106-5836

Decal-Hood, RH

$

$

Not available

13

Toro 95-4113-03

Cover-Side, RH

$

$

Not available
