73570 (520 xi) - Toro Garden Tractor (SN: 220000001 - 220999999) (2002) HI-LO SHIFT ASSEMBLY Parts Diagram

Garden Tractor

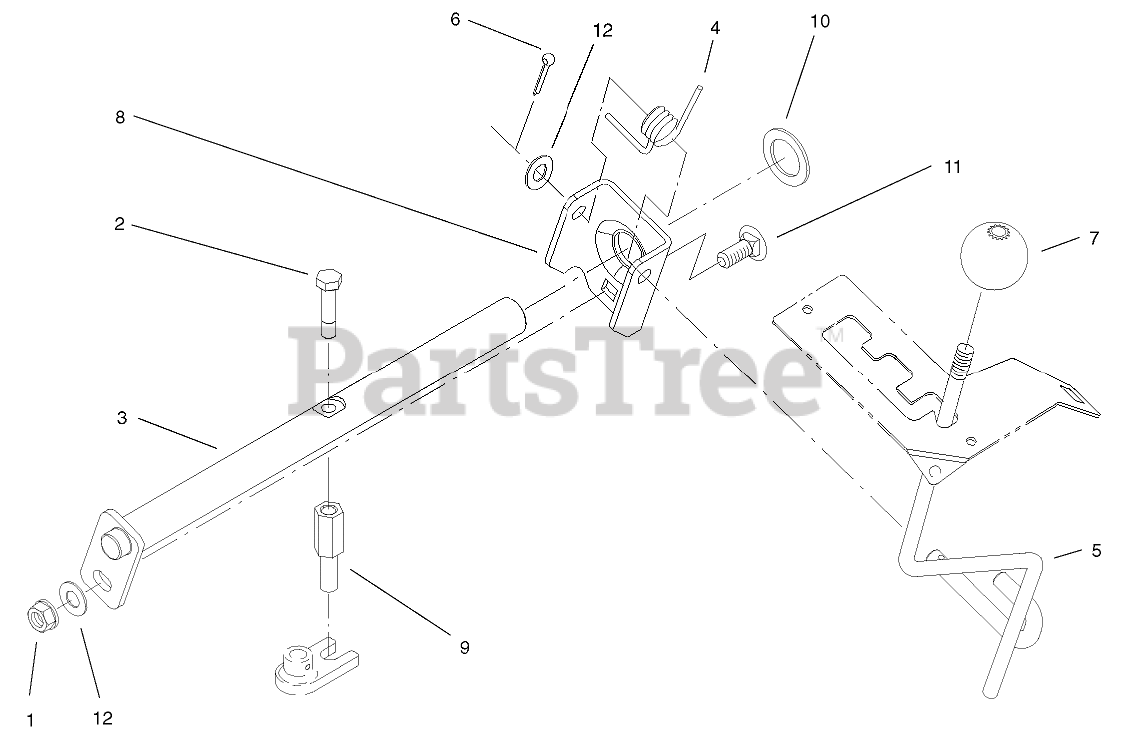

HI-LO SHIFT ASSEMBLY Parts Diagram

  • Title
1

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 16

0

2

Toro 99-4953

SCREW-THREAD LOCKING

$

$

Not available

3

Toro 99-4445

SHIFT ROD ASM

$

$

Not available

4

Toro 99-4446

SPRING-TORSION

$

$

Not available

5

Toro 99-4448

LEVER-SHIFT

$

$

Not available

6

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

7

Toro 95-4022

KNOB-HI / LO SHIFT

$

$

Not available

8

Toro 99-4951

BRACKET-PIVOT

$

$

Not available

9

Toro 99-4952

ROD-PIVOT, SHIFT

$

$

Not available

10

Toro 99-4958

SPACER

$2.99

$

Usually ships in 3-6 days

0

11

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

12

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
