73570 (520 xi) - Toro Garden Tractor (SN: 220000001 - 220999999) (2002) GROUP 6-BLOWER HOUSING & BAFFLES (MODEL 73471 ONLY) Parts Diagram

Garden Tractor

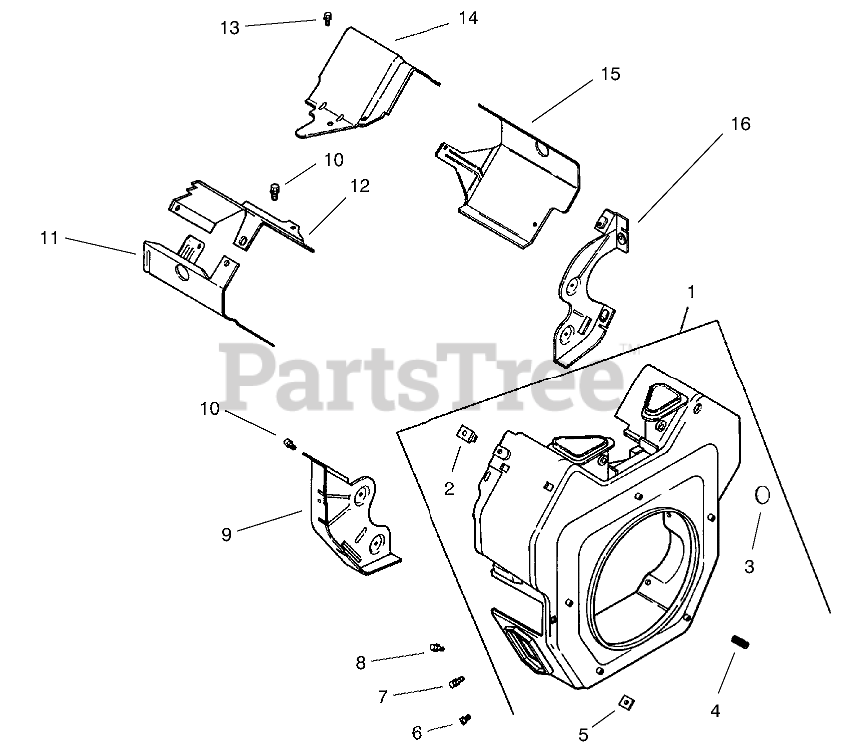

GROUP 6-BLOWER HOUSING & BAFFLES (MODEL 73471 ONLY) Parts Diagram

  • Title

1

2402783

Housing, blower (Includes 2-5)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Not available

2

Kohler 24 100 02

Nut-Plastic
(Superseded to 24 100 02-S)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$2.49

$

Usually ships in 2-5 days

0

3

2475590

Kit, button plug

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Not available

4

Toro 24 086 43

Screw-Set

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Currently unavailable

5

Kohler 24 100 01

Nut
(Superseded to 25 100 37-S)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$2.49

$

In Stock, Qty 11

0

6

Kohler M-0551016

Screw
(Superseded to M-551016-S)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$2.49

$

In Stock, only 1 left!

0

7

Kohler M-0545016

Screw-HF
(Superseded to M-545016)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$2.49

$

In Stock, Qty 15

0

8

Kohler M-0545020

Screw

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Not available

9

2414602

Plate-Backing #2 Side

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Not available

10

Kohler M-0645016

Screw
(Superseded to M-645016)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$3.99

$

In Stock, Qty 15

0

11

Kohler 24 063 20

Baffle-Cylinder, #2
(Superseded to 24 063 88-S)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$28.99

$

Usually ships in 2-5 days

0

12

Kohler 24 063 17

Baffle-Valley, #2 side
(Superseded to 24 063 17-S)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$9.49

$

Usually ships in 2-5 days

0

13

Kohler M-0545010

Screw
(Superseded to M-545010)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$4.49

$

In Stock, only 2 left!

0

14

Kohler 24 063 24

Baffle-Valley, #1 Side
(Superseded to 24 063 24-S)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$6.49

$

In Stock, only 1 left!

0

15

2406330

Baffle-Cyl. #1 Side

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Not available

16

2414608

Plate-Backing #1

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Not available

2411311

Decal-HP

Note: Not illustrated

$

$

Not available

2411311

Decal-HP

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH18S-62579

$

$

Not available
