73570 (520 xi) - Toro Garden Tractor (SN: 220000001 - 220999999) (2002) FENDER, FOOTREST, & SEAT ASSEMBLY Parts Diagram

Garden Tractor

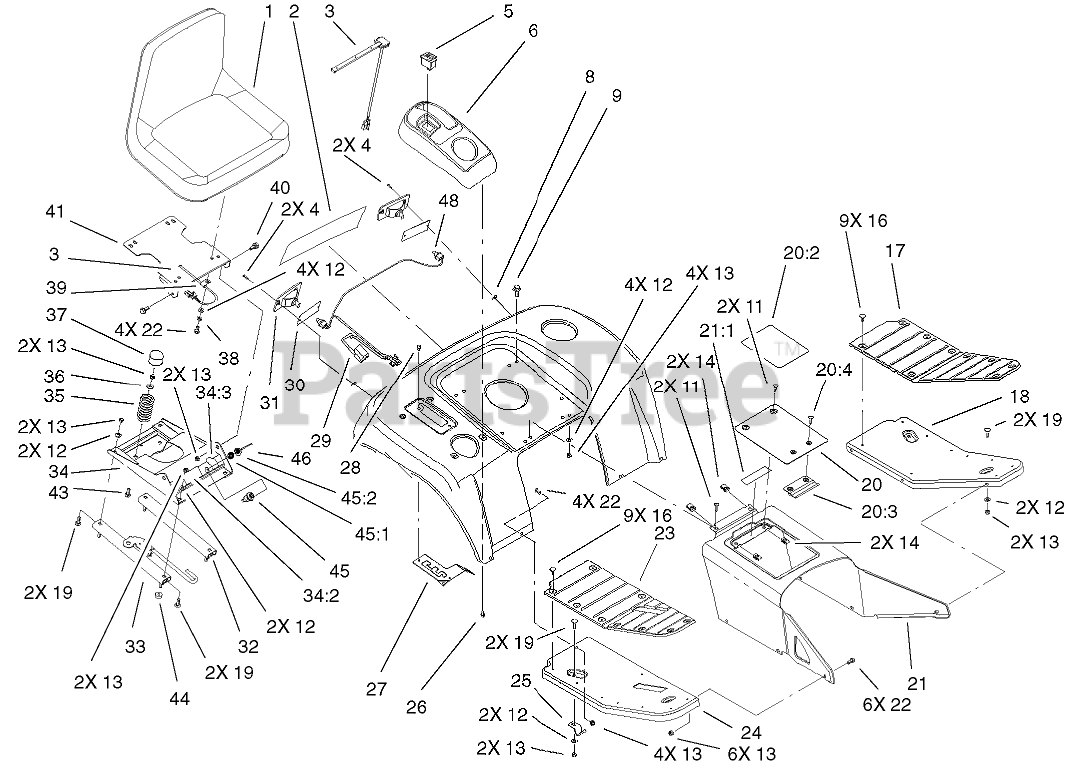

FENDER, FOOTREST, & SEAT ASSEMBLY Parts Diagram

  • Title

1

Toro 92-6511

Seat V-511 (only on: 73471)

$

$

Not available

1

Toro 94-3518

Seat (only on: 73542, 73570)
(Superseded to 98-1625)

$

$

Not available

2

Toro 95-4262

DECAL - FENDER

$

$

Not available

3

Toro 38-1420

SWITCH-SEAT

$

$

Not available

4

Toro 3250-29

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

5

Toro 94-7602

Switch-Cruise (only on: 73542, 73570)

$

$

Not available

6

Toro 95-4001

Pod-Control 18 HP (only on: 73471)

$

$

Not available

6

Toro 95-4000

Pod-Control Int-l (only on: 73570)

$206.99

$

Usually ships in 3-6 days

0

6

Toro 94-2120

Pod-Control (only on: 73542)

$

$

Not available

8

Toro 95-4115

NUT-SPEED

$2.49

$

Usually ships in 3-6 days

0

9

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

11

Toro 92-7020

SCREW-HH

$

$

Not available

12

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

16

Toro 3290-479

FASTENER-PANEL

$4.99

$

In Stock, Qty 20+

0

17

Toro 94-2096

PAD-FOOTREST, LH

$

$

Not available

18

Toro 94-2090-01

FOOTREST-LH

$164.99

$

Usually ships in 3-6 days

0

19

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

20

Toro 99-6089

Cover/Decal ASM (only on: 73471, 73542)

$

$

Not available

20

Toro 98-1623

Tunnel Cover ASM (only on: 73570)

$

$

Not available

20:2

Toro 98-1608

Decal-Danger (only on: 73570)

$

$

Not available

20:2

Toro 99-6090

Decal-Danger (only on: 73471, 73542)

$

$

Not available

20:3

Toro 95-4107

RETAINER-COVER

$

$

Not available

20:4

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

21

Toro 98-5025

Tunnel ASM (only on: 73471, 73542)

$

$

Not available

21

Toro 98-5058

Tunnel ASM (only on: 73570)

$

$

Not available

21:1

Toro 80-8760

Decal-Danger (only on: 73471, 73542)

$

$

Not available

21:1

Toro 98-5015

Decal-Warning (only on: 73570)

$

$

Not available

22

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 16

0

23

Toro 94-2095

PAD-FOOTREST, RH

$

$

Not available

24

Toro 94-2089-01

FOOTREST-RH

$

$

Not available

25

Toro 95-3858

BRACKET-FOOTREST

$

$

Not available

26

Toro 32144-20

SCREW-HHFTF

$2.99

$

In Stock, only 4 left!

0

27

Toro 98-8711-03

GATE-HI / LO SHIFT

$

$

Not available

28

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

29

Toro 99-3726

Harness-Rear (only on: 73542, 73570)

$

$

Not available

30

Toro 95-4123

Gasket-Tail Light (only on: 73471)

$

$

Not available

31

Toro 94-2124

Lamp-Taillight (only on: 73542, 73570)

$

$

Not available

31

Toro 95-4089

Reflector (only on: 73471)

$

$

Not available

32

Toro 94-2112

SLIDE-SLAVE, SEAT

$

$

Not available

33

Toro 94-2177

SLIDE-LATCH, SEAT

$303.99

$

Usually ships in 3-6 days

0

34

Toro 104-5074

Seat Base ASM, Intl Decal (only on: 73570)

$

$

Not available

34

Toro 104-2495

Seat Base ASM (only on: 73471, 73542)

$

$

Not available

34:2

Toro 99-2985

Decal-Danger (only on: 73471, 73542)

$

$

Not available

34:2

Toro 99-2986

Decal-Danger (only on: 73570)

$

$

Not available

34:3

Toro 99-5340

Decal-Switch (only on: 73570)

$4.99

$

Usually ships in 3-6 days

0

34:3

Toro 99-5339

Decal (only on: 73471, 73542)

$

$

Not available

35

Toro 94-2106-03

SPRING-COMPRESSION

$25.99

$

Usually ships in 3-6 days

0

36

Toro 105503

BUSHING

$1.49

$

In Stock, Qty 7

0

37

Toro 95-4242

CAP-SPRING, SEAT

$

$

Not available

38

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

39

Toro 98-2390

CLAMP-R

$

$

Not available

40

Toro 37-8771

BOLT-SHOULDER

$5.49

$

In Stock, only 3 left!

0

41

Toro 104-4345-03

MOUNT-SEAT

$

$

Not available

43

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, only 2 left!

0

44

Toro 4-2390

WASHER-FLAT

$4.49

$

Usually ships in 3-6 days

0

45

Toro 46-5780

STARTER SWITCH ASM

$29.99

$

Usually ships in 3-6 days

0

45:1

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

45:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

46

Toro 62-7770

KEY-IGNITION

$4.99

$

In Stock, only 1 left!

0

48

Toro 109045

LIGHT BULB

$

$

Not available
