73570 (520 xi) - Toro Garden Tractor (SN: 220000001 - 220999999) (2002) ELECTRICAL 18HP ASSEMBLY Parts Diagram

Garden Tractor

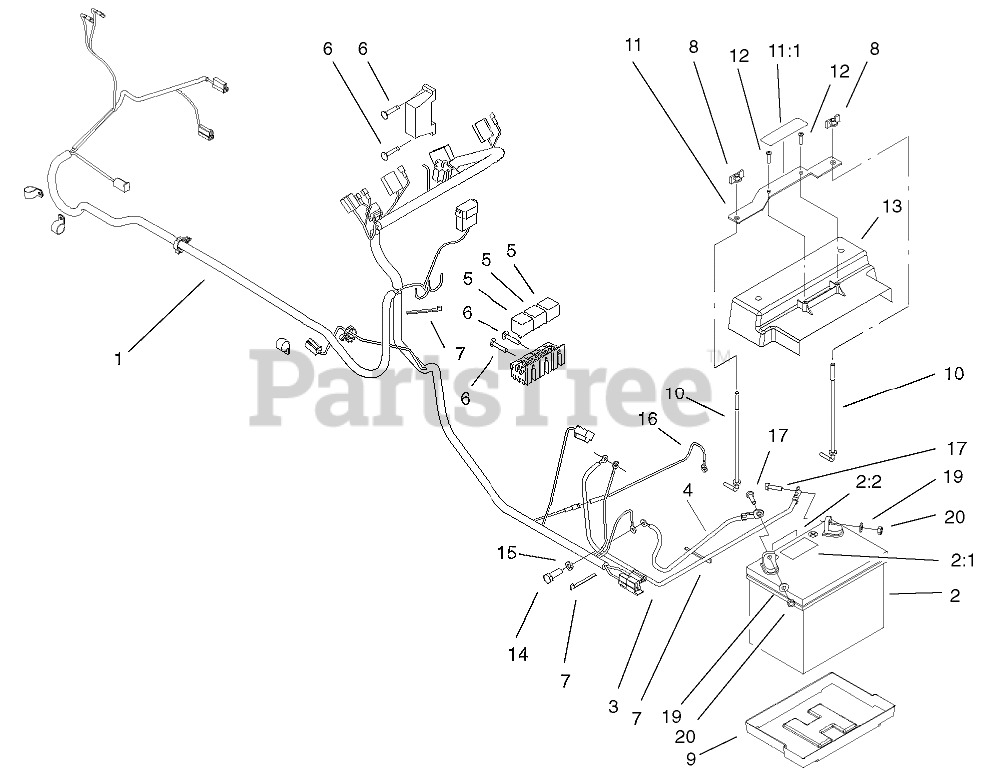

ELECTRICAL 18HP ASSEMBLY Parts Diagram

  • Title
1

Toro 99-3722

Wire Harness 18 HP (only on: 73471)

$

$

Not available

2

Toro 104-2492

Battery (only on: 73471)

$

$

Not available

2:1

Toro 104-4163

Decal-Battery (only on: 73471)

$

$

Currently unavailable

2:2

Toro 104-5091

Decal-Battery (only on: 73471)

$

$

Currently unavailable

3

Toro 95-7854

Cable-Battery, Red 27" (only on: 73471)

$40.99

$

Usually ships in 3-6 days

0

4

Toro 95-7873

Cable-Battery (only on: 73471)

$

$

Not available

5

Toro 98-7249

Relay (only on: 73471)

$22.99

$

In Stock, Qty 12

0

6

Toro 12-5450

Screw (only on: 73471)

$9.99

$

In Stock, only 2 left!

0

7

Toro 614249

Tie-Strap (only on: 73471)

$1.49

$

In Stock, only 2 left!

0

8

Toro 32103-22

Nut-Wing (only on: 73471)

$2.99

$

In Stock, Qty 17

0

9

Toro 106948

Tray-Battery (only on: 73471)

$11.99

$

In Stock, only 2 left!

0

10

Toro 95-4042

Hook-Battery Retain (only on: 73471)

$

$

Not available

11

Toro 98-5056

Strap ASM (only on: 73471)

$

$

Not available

11:1

Toro 93-1265

Decal-Surface, Hot (only on: 73471)

$8.49

$

Usually ships in 3-6 days

0

12

Toro 94-4496

Screw-PPH (only on: 73471)

$1.49

$

In Stock, Qty 20+

0

13

Toro 95-4044

Shield-Battery (only on: 73471)

$

$

Not available

14

Toro 33104-020

Screw-HHF (only on: 73471)

$3.99

$

In Stock, Qty 20+

0

15

Toro 3253-4

Washer-Lock (only on: 73471)

$0.99

$

In Stock, Qty 20+

0

16

Toro 98-1492

Harness-Wire (only on: 73471)

$

$

Not available

17

Toro 321-5

Screw-HH (only on: 73471)

$0.99

$

In Stock, Qty 20+

0

19

Toro 3256-22

Washer-Flat (only on: 73471)

$0.99

$

In Stock, Qty 20+

0

20

Toro 3296-42

Nut-Lock, NI (only on: 73471)

$0.99

$

In Stock, Qty 20+

0

Toro 109102

Fuse-25 Amp (only on: 73471)

Note: Not illustrated

$5.99

$

In Stock, Qty 15

0

Toro 218-578

Fuse-10 Amp (only on: 73471)

Note: Not illustrated

$2.99

$

In Stock, Qty 6

0

Toro NN10277

Fuse-30 Amp (only on: 73471)

Note: Not illustrated

$9.99

$

Usually ships in 3-6 days

0
