73570 (520 xi) - Toro Garden Tractor (SN: 200000001 - 200999999) (2000) GROUP 3-OIL PAN/LUBRICATION (MODELS 73542 & 73570) Parts Diagram

Garden Tractor

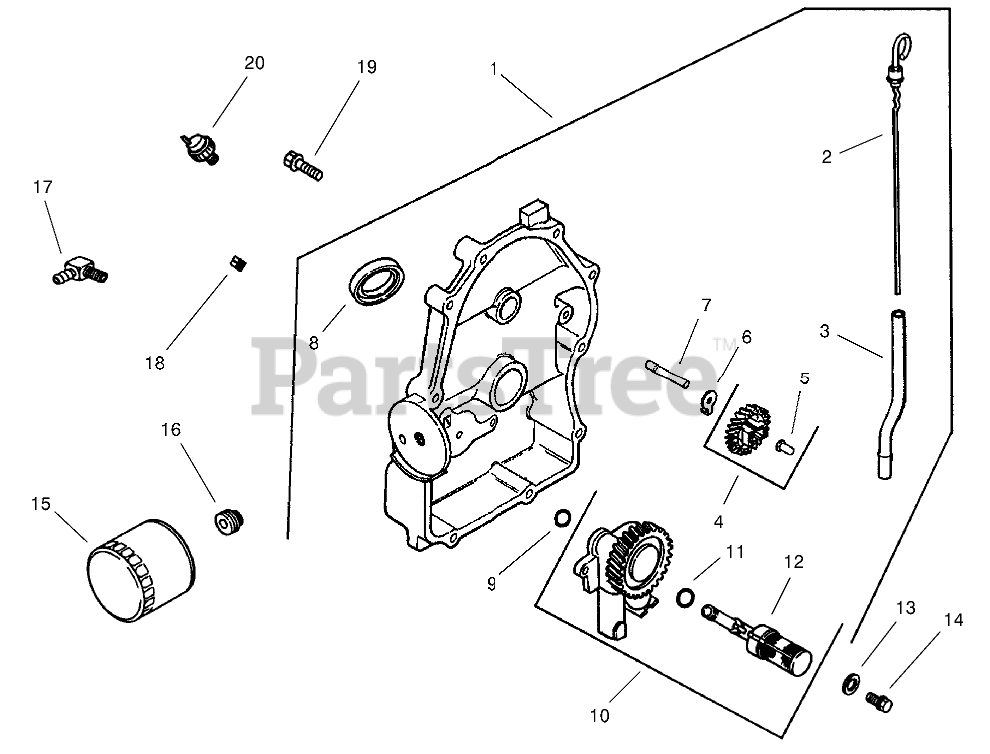

GROUP 3-OIL PAN/LUBRICATION (MODELS 73542 & 73570) Parts Diagram

  • Title

1

5400901

Plate, closure assembly (Includes 2-12)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Not available

2

2403806

Dipstick

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Not available

3

2412308

Tube-Dipstick

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Not available

4

Kohler 24 043 12

Kit, governor gear (Includes 5)
(Superseded to 24 043 12-S)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$68.99

$

In Stock, Qty 12

0

5

Kohler 12 380 01

Pin-Governor
(Superseded to 12 380 01-S)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$3.49

$

In Stock, Qty 10

0

6

Kohler 52 448 02

Tab-Locking
(Superseded to 52 448 02-S)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$2.49

$

In Stock, only 2 left!

0

7

Kohler 12 144 02

Shaft-Gear, Governor
(Superseded to 12 144 02-S)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$4.49

$

In Stock, Qty 8

0

8

Kohler 52 032 08

Seal-Oil
(Superseded to 52 032 08-S)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$10.99

$

In Stock, Qty 20+

0

9

Kohler 24 153 08

O Ring
(Superseded to 24 153 08-S)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$6.99

$

In Stock, only 1 left!

0

10

Kohler 24 393 10

Oil pump assembly (Includes 11,12)
(Superseded to 24 393 10-S)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Not available

11

Kohler 24 153 01

O-Ring
(Superseded to 24 153 01-S)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$2.49

$

In Stock, Qty 8

0

12

Kohler 24 381 04

Pick Up-Oil
(Superseded to 24 381 04-S)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$34.99

$

In Stock, only 1 left!

0

13

Kohler M-0631005

Washer
(Superseded to M-631005)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$2.49

$

In Stock, only 2 left!

0

14

Kohler M-0645025

Screw
(Superseded to M-645025)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$2.49

$

In Stock, only 3 left!

0

15

Kohler 12 050 01

Filter-Oil
(Superseded to 12 050 01-S)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$13.99

$

In Stock, Qty 20+

0

16

Kohler 24 136 01

Nipple-Filter, Oil
(Superseded to 24 136 09-S)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$5.99

$

Usually ships in 2-5 days

0

17

Kohler 25 155 02

Connector
(Superseded to 25 155 02-S)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$14.99

$

In Stock, only 1 left!

0

18

Kohler X-75-23

Plug
(Superseded to X-75-23-S)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$3.49

$

In Stock, only 2 left!

0

19

Kohler 24 086 16

Screw
(Superseded to 24 086 17-S)

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$2.49

$

In Stock, Qty 5

0

20

5209906

Switch, pressure

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Not available

2511305

Decal-Oil Sentry

Note: Not illustrated

$

$

Not available

2511305

Decal-Oil Sentry

Note: Obtain Parts From Your Local Kohler Dealer Kohler Engine Num CH20S-64583

$

$

Not available
