73561 SEI (522 xi) - Toro Indy Special Edition Garden Tractor (SN: 200000001 - 200999999) (2000) STARTING SYSTEM-KOHLER #CH22S-PS-66545 Parts Diagram

Indy Special Edition Garden Tractor

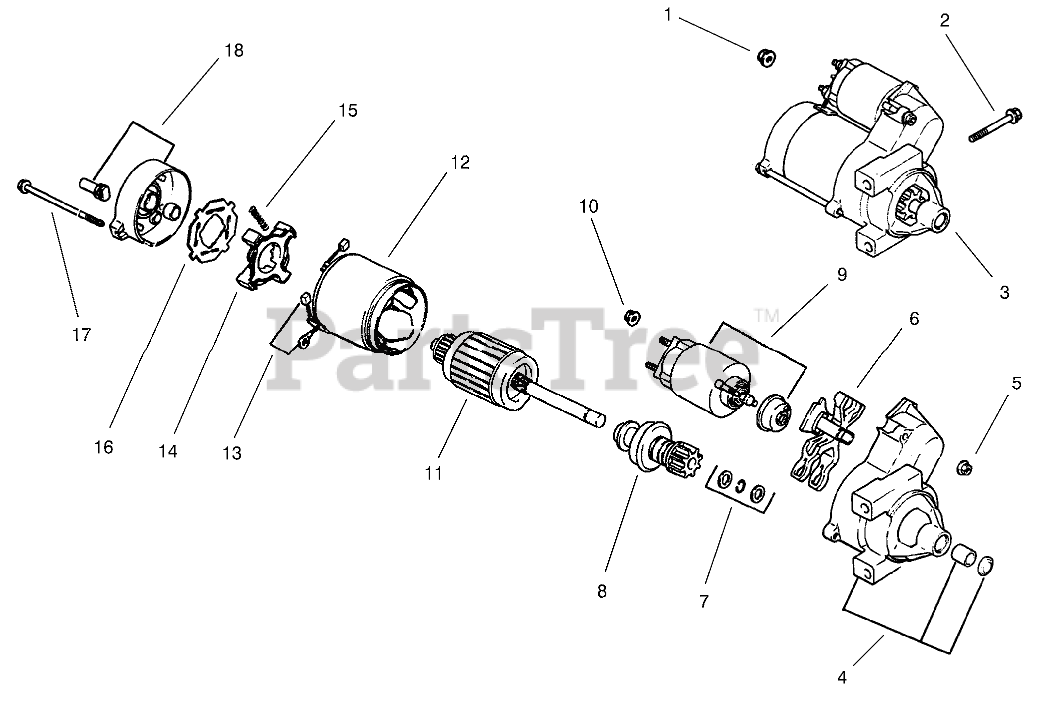

STARTING SYSTEM-KOHLER #CH22S-PS-66545 Parts Diagram

  • Title

1

Kohler M-0841080

Nut
(Superseded to M-841080)

Note: Obtain parts from you local Kohler dealer

$2.49

$

In Stock, only 1 left!

0

2

Kohler M-0839080

Scew

Note: Obtain parts from you local Kohler dealer

$

$

Not available

3

2409801

Starter, solenoid shift assembly (Incl. 4-18)

Note: Obtain parts from you local Kohler dealer

$

$

Not available

4

2408104

Cap-Drive End

Note: Obtain parts from you local Kohler dealer

$

$

Not available

5

5210010

Nut

Note: Obtain parts from you local Kohler dealer

$

$

Not available

6

1209010

Lever Starter Drive

Note: Obtain parts from you local Kohler dealer

$

$

Not available

7

2475584

Washer

Note: Obtain parts from you local Kohler dealer

$

$

Not available

8

1223901

Drive Pinion

Note: Obtain parts from you local Kohler dealer

$

$

Not available

9

5243502

Solenoid

Note: Obtain parts from you local Kohler dealer

$

$

Not available

10

5210009

Nut

Note: Obtain parts from you local Kohler dealer

$

$

Not available

11

1217004

Armature-Starter

Note: Obtain parts from you local Kohler dealer

$

$

Not available

12

1247101

Frame

Note: Obtain parts from you local Kohler dealer

$

$

Not available

13

5222101

Kit, brush & spring (Includes 15)

Note: Obtain parts from you local Kohler dealer

$

$

Not available

14

5232303

Holder-Brush

Note: Obtain parts from you local Kohler dealer

$

$

Not available

15

5208909

Spring Brush

Note: Obtain parts from you local Kohler dealer

$

$

Not available

16

5216801

Insulator

Note: Obtain parts from you local Kohler dealer

$

$

Not available

17

5221105

Bolt

Note: Obtain parts from you local Kohler dealer

$

$

Not available

18

2430101

Commutator-End Cap

Note: Obtain parts from you local Kohler dealer

$

$

Not available
