73561 (550) - Toro Garden Tractor (SN: 250000001 - 250999999) (2005) HYDRO TRANS AXLE HOUSING ASSEMBLY Parts Diagram

Garden Tractor

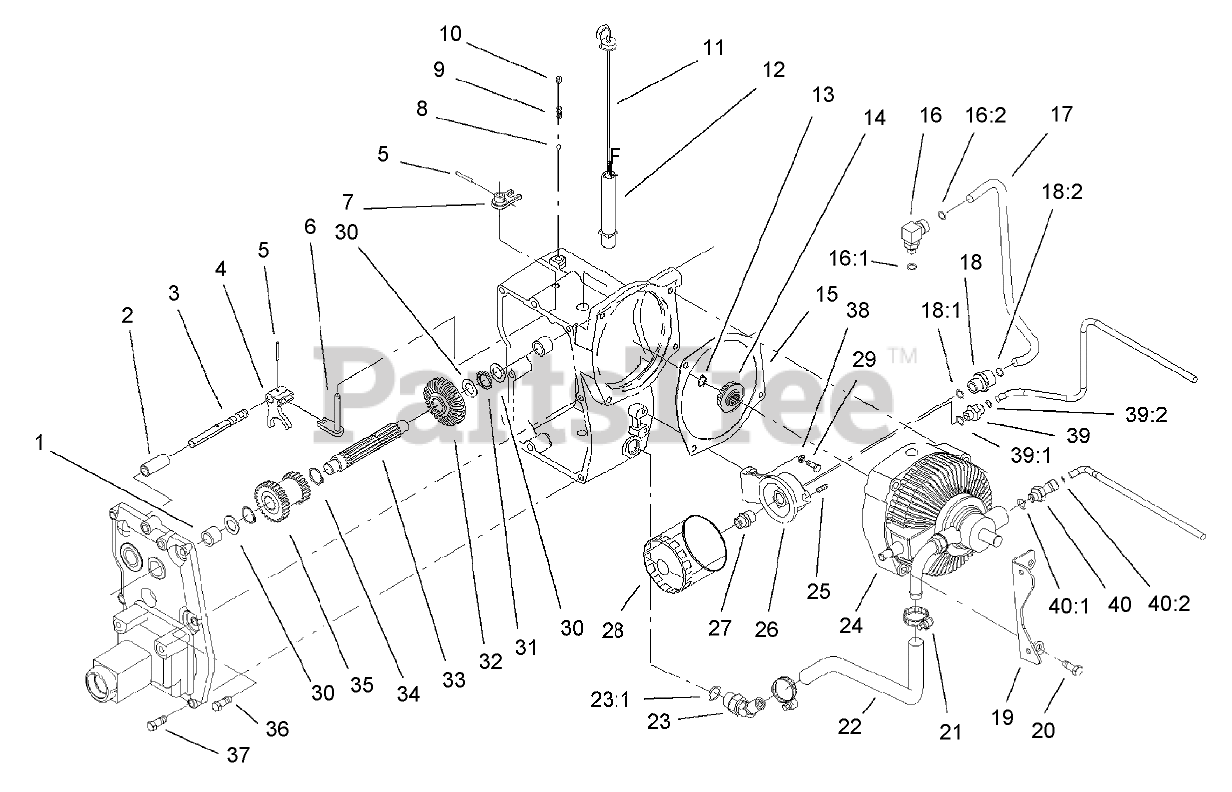

HYDRO TRANS AXLE HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 1529

BEARING-NEEDLE

$50.99

$

Usually ships in 3-6 days

0

2

Toro 94-2014

TUBE-RAIL, SHIFTER

$

$

Not available

3

Toro 94-2054

RAIL-SHIFT

$

$

Not available

4

Toro 94-2015

FORK-HI / LO SHIFT

$

$

Not available

5

Toro 933154

PIN-ROLL

$9.49

$

In Stock, only 1 left!

0

6

Toro 94-2143

ARM-SHIFTER

$

$

Not available

7

Toro 94-7510

SHIFT-HI / LO

$16.99

$

In Stock, only 1 left!

0

8

Toro 3517

BALL-DETENT

$0.99

$

In Stock, Qty 5

0

9

Toro 94-2024

SPRING-DETENT, SHIFT

$

$

Not available

10

Toro 3247-2

SCREW-SET, HSH

$4.49

$

Usually ships in 3-6 days

0

11

Toro 94-7680-03

DIPSTICK

$33.99

$

Usually ships in 3-6 days

0

12

Toro 94-7559

TUBE-DIPSTICK

$

$

Not available

13

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, Qty 20+

0

14

Toro 94-7565

PINION-BEVEL

$

$

Not available

15

Toro 702062

GASKET

$15.99

$

Usually ships in 3-6 days

0

16

Toro 94-7693

FITTING -HYD, 90 DEGEE
(Superseded to 340-99)

$40.99

$

Usually ships in 3-6 days

0

16:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

16:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

17

Toro 94-7969

TUBE-HYD

$

$

Not available

18

Toro 94-7694

FITTING-STRAIGHT
(Superseded to 340-5)

$22.99

$

Usually ships in 3-6 days

0

18:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

18:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

19

Toro 94-2148-03

PLATE-BRACKET, SUPPORT

$

$

Not available

20

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 20+

0

21

Toro 2412-141

CLAMP-DRIVE, WORM

$2.99

$

In Stock, only 2 left!

0

22

Toro 95-4133

HOSE-SUCTION

$

$

Not available

23

Toro 94-7692

FITTING-HOSE

$

$

Not available

23:1

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

24

Toro 94-2003

TRANSMISSION-HYDRO

$

$

Not available

25

Toro 99-8551

PLUG-PIPE

$5.49

$

Usually ships in 3-6 days

0

26

Toro 108323

BASE-FILTER

$245.99

$

Usually ships in 3-6 days

0

27

Toro 5991

FITTING

$

$

Not available

28

Toro 106-5830

Filter-Oil
(Superseded to 79-5270)

$21.99

$

In Stock, only 4 left!

0

29

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

30

Toro 1535

WASHER-THRUST

$10.99

$

In Stock, only 1 left!

0

31

Toro 8571

BEARING-THRUST
(Superseded to 99-3836)

$16.99

$

In Stock, only 2 left!

0

32

Toro 94-7566

GEAR-BEVEL

$

$

Not available

33

Toro 94-2010

SHAFT-INPUT

$

$

Not available

34

Toro 32151-29

RING-RETAINING

$5.49

$

In Stock, Qty 15

0

35

Toro 94-2011

GEAR-HI / LO

$

$

Not available

36

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

37

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

38

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

39

Toro 340-2

FITTING-STRAIGHT

$12.99

$

In Stock, only 2 left!

0

39:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

39:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

40

Toro 95-4135

FITTING-HYD, 45 DEGREE
(Superseded to 340-87)

$20.99

$

Usually ships in 3-6 days

0

40:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

40:2

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0
