73561 (550) - Toro Garden Tractor (SN: 250000001 - 250999999) (2005) HYDRO LIFT LOWER ASSEMBLY Parts Diagram

Garden Tractor

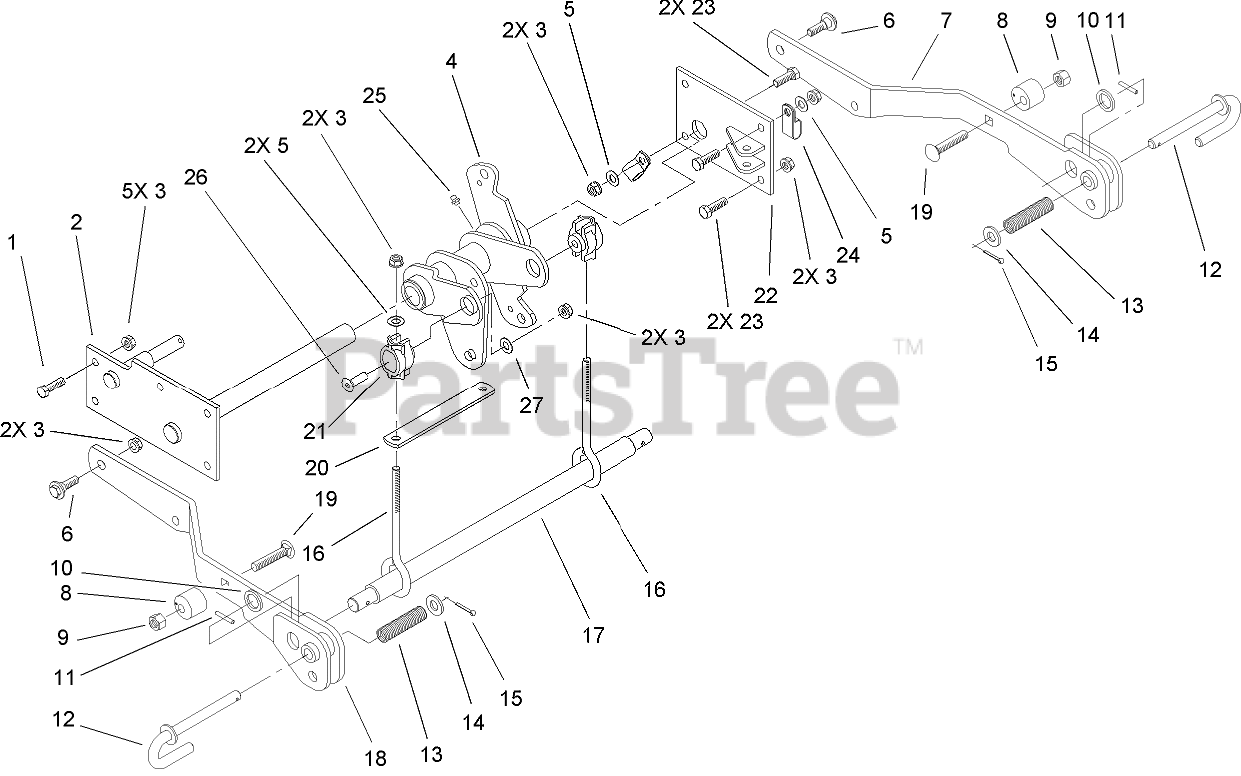

HYDRO LIFT LOWER ASSEMBLY Parts Diagram

  • Title

1

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

2

Toro 94-2263-03

SUPPORT-LIFT, DECK

$

$

Not available

3

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

4

Toro 99-4430

BELLCRANK AND BUSHING ASM

$353.99

$

Usually ships in 3-6 days

0

5

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 614672

BOLT-SHOULDER

$2.99

$

In Stock, Qty 6

0

7

Toro 94-2279-03

ARM-LIFT, LH

$

$

Not available

8

Toro 94-2411

STOP-LIFT, ADJ.

$24.99

$

Usually ships in 3-6 days

0

9

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

10

Toro 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

11

Toro 32121-79

PIN-ROLL

$13.99

$

Usually ships in 3-6 days

0

12

Toro 94-2301

PIN - J

$42.99

$

In Stock, only 2 left!

0

13

Toro 95-4256

SPRING-COMPRESSION

$2.99

$

Usually ships in 3-6 days

0

14

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

16

Toro 104-5079

ROD-LIFT

$68.99

$

In Stock, only 1 left!

0

17

Toro 94-2277-03

BAR-LIFT

$

$

Not available

18

Toro 94-2278-03

Arm-Lift, RH

$192.99

$

Usually ships in 3-6 days

0

19

Toro 3232-5

SCREW-CARR

$4.49

$

Usually ships in 3-6 days

0

20

Toro 94-7600

SPACER-STRAP

$

$

Not available

21

Toro 99-2344

SLEEVE-LIFT

$36.99

$

Usually ships in 3-6 days

0

22

Toro 99-3746-03

SUPPORT-CYLINDER

$53.99

$

Usually ships in 3-6 days

0

23

Toro 323-18

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

24

Toro 98-1617

CLAMP-TUBE

$

$

Not available

25

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

26

Toro 99-8051

SCREW-HSFH

$3.49

$

Usually ships in 3-6 days

0

27

Toro 99-6496

WASHER-FLAT

$

$

Not available
