73561 (522 xi) - Toro Garden Tractor (SN: 240000001 - 240999999) (2004) HYDRO CONTROLS ASSEMBLY Parts Diagram

Garden Tractor

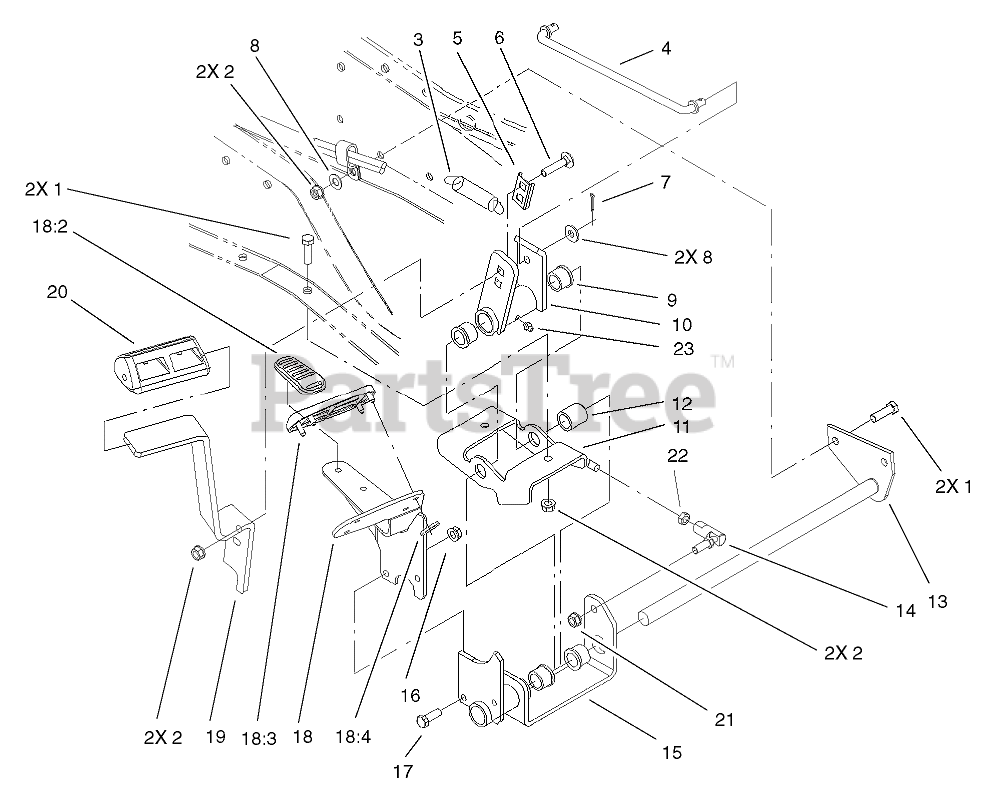

HYDRO CONTROLS ASSEMBLY Parts Diagram

  • Title
1

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

2

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

3

Toro 63-1590

SPRING-IDLER

$20.99

$

In Stock, only 1 left!

0

4

Toro 94-2499

ROD-PIVOT PLATE TO PEDAL

$

$

Not available

5

Toro 94-7818

RETAINER-SCREW

$

$

Not available

6

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 14

0

7

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

8

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

9

Toro 98-1636

BUSHING-FLANGE

$7.99

$

Usually ships in 3-6 days

0

10

Toro 94-2351-03

Bracket-Brake

$

$

Not available

11

Toro 94-2343-03

BRACKET-SUPPORT

$

$

Not available

12

Toro 94-7501

SPACER-PEDAL
(Superseded to 94-7501-03)

$

$

Not available

13

Toro 94-2345-03

SHAFT-PIVOT

$

$

Not available

14

Toro 94-7572

END-TIE ROD, RH

$34.99

$

In Stock, only 2 left!

0

15

Toro 94-2342-03

BRACKET-FOWARD/REVERSE

$

$

Not available

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 99-8050

HYDRO PEDAL ASM

$

$

Not available

18:2

Toro 98-9039

PAD-HEEL, HYDRO PEDAL

$11.99

$

Usually ships in 3-6 days

0

18:3

Toro 98-9040

PAD-TOE, HYDRO PEDAL

$11.99

$

Usually ships in 3-6 days

0

18:4

Toro 32112-6

NUT-PUSH

$6.49

$

In Stock, only 4 left!

0

19

Toro 94-2352-03

PEDAL-BRAKE

$

$

Not available

20

Toro 94-2123

PAD-PEDAL, BRAKE

$50.99

$

Usually ships in 3-6 days

0

21

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

22

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

23

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0
