73561 (522 xi) - Toro Garden Tractor (SN: 230000001 - 230999999) (2003) ATTACH-A-MATIC & HITCH ASSEMBLY Parts Diagram

Garden Tractor

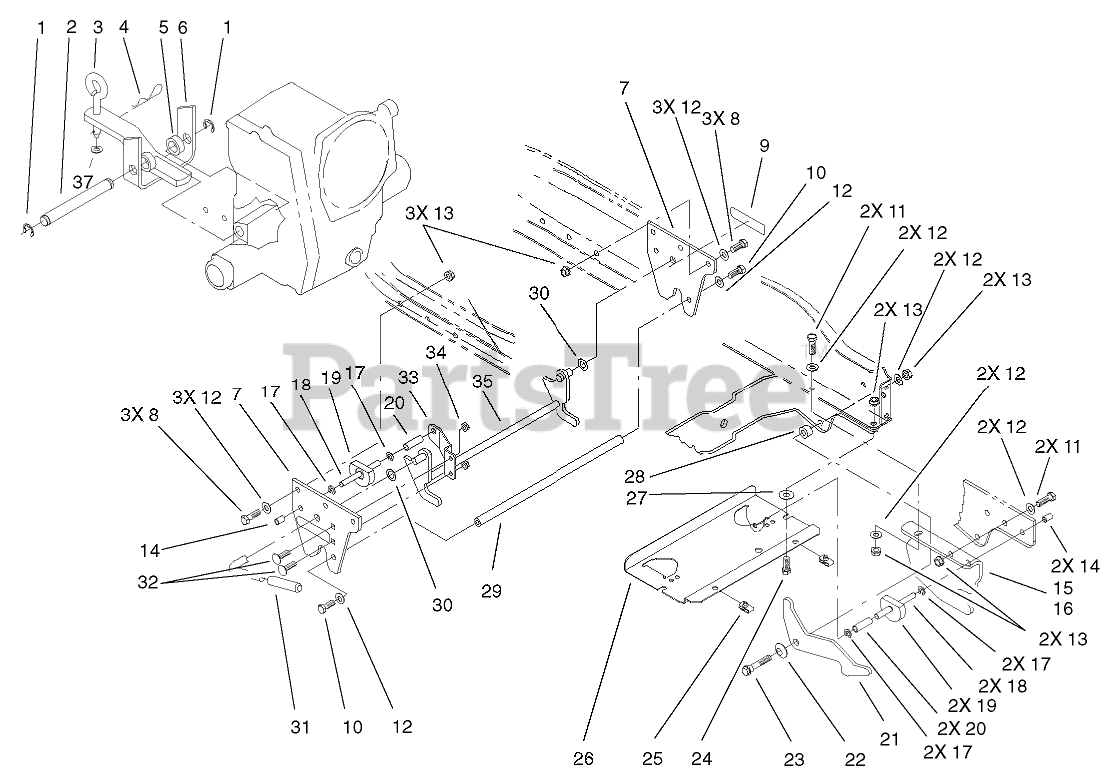

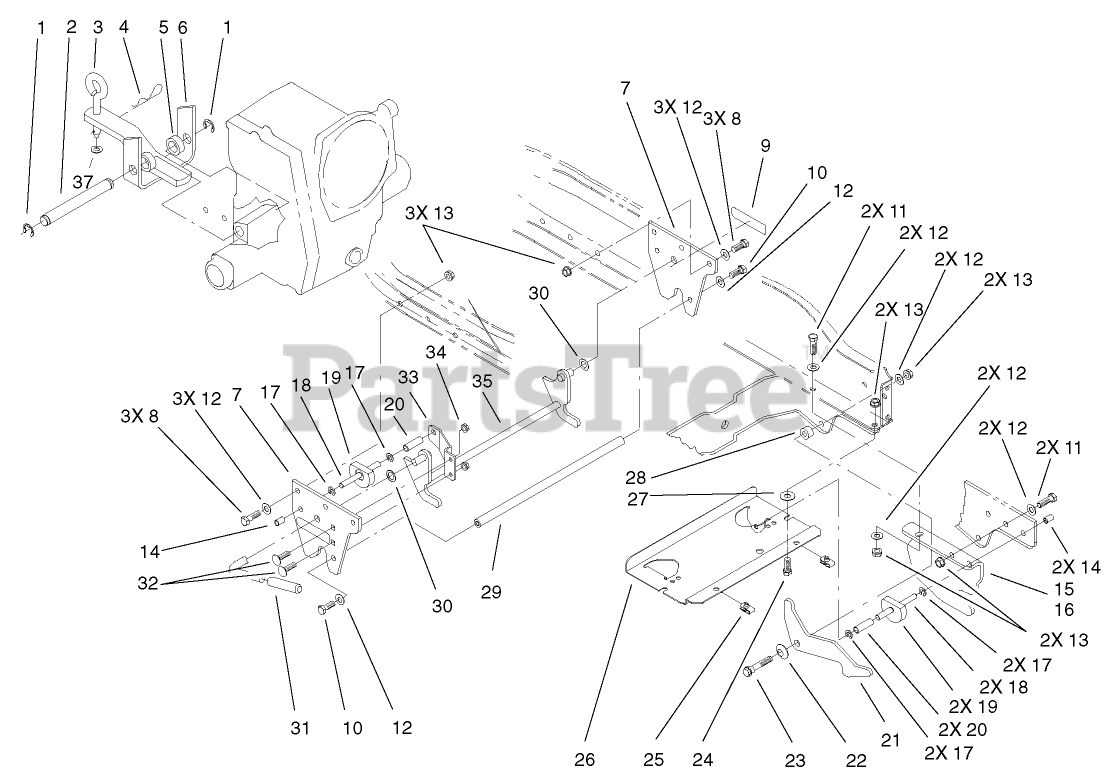

ATTACH-A-MATIC & HITCH ASSEMBLY Parts Diagram

  • Title
1

Toro 5618

E-RING

$0.99

$

In Stock, Qty 11

0

2

Toro 105269

PIN-STATIONARY HITCH

$

$

Not available

3

Toro 106634

PIN-TOOL

$

$

Not available

4

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

5

Toro 9791204

SPACER

$

$

Not available

6

$

$

Not available

7

Toro 94-2251-03

PLATE-HITCH

$23.99

$

In Stock, only 2 left!

0

8

Toro 323-44

SCREW-HH

$5.49

$

In Stock, Qty 11

0

9

Toro 98-1632

DECAL-ATTACH A MATIC

$2.99

$

Usually ships in 3-6 days

0

10

Toro 3235-22

SCREW-HH, LOCK

$2.99

$

In Stock, only 2 left!

0

11

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

12

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

14

Toro 105316

CAP-ROD, PLUNGER

$1.49

$

In Stock, Qty 20+

0

15

Toro 94-2230-03

HANGER-RH

$

$

Not available

16

Toro 94-2231-03

HANGER-LH

$

$

Not available

17

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 20+

0

18

Toro 94-2256

ROD-LOCK

$

$

Not available

19

Toro 94-2258

LOCK-LATCH

$

$

Not available

20

Toro 8616

SPRING

$3.99

$

Usually ships in 3-6 days

0

21

Toro 94-7777

LATCH-BOX, PULLEY

$41.99

$

Usually ships in 3-6 days

0

22

Toro 3290-221

WASHER-SPRING

$3.99

$

In Stock, Qty 6

0

23

Toro 92-7674

BOLT-SHOULDER

$2.99

$

In Stock, only 1 left!

0

24

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

25

$2.99

$

In Stock, Qty 20+

0

26

Toro 94-2304-03

TRAY-BATTERY

$60.99

$

Usually ships in 3-6 days

0

27

Toro 3-4685

WASHER-TOP THRUST

$

$

Not available

28

Toro 94-2233

SPACER

$

$

Not available

29

Toro 94-2475

ROD-SPACER

$

$

Not available

30

Toro 98-1629

WASHER

$1.49

$

Usually ships in 3-6 days

0

31

Toro 9038

GRIP

$5.99

$

In Stock, only 1 left!

0

32

Toro 3230-2

BOLT-CARR

$1.49

$

Usually ships in 3-6 days

0

33

Toro 94-7855-03

BRACKET-ARM, MID

$

$

Not available

34

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

35

$

$

Not available

37

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
