73560 (522 xi) - Toro Garden Tractor (SN: 089000001 - 089999999) (1998) GROUP 5-IGNITION/ELECTRICAL Parts Diagram

Garden Tractor

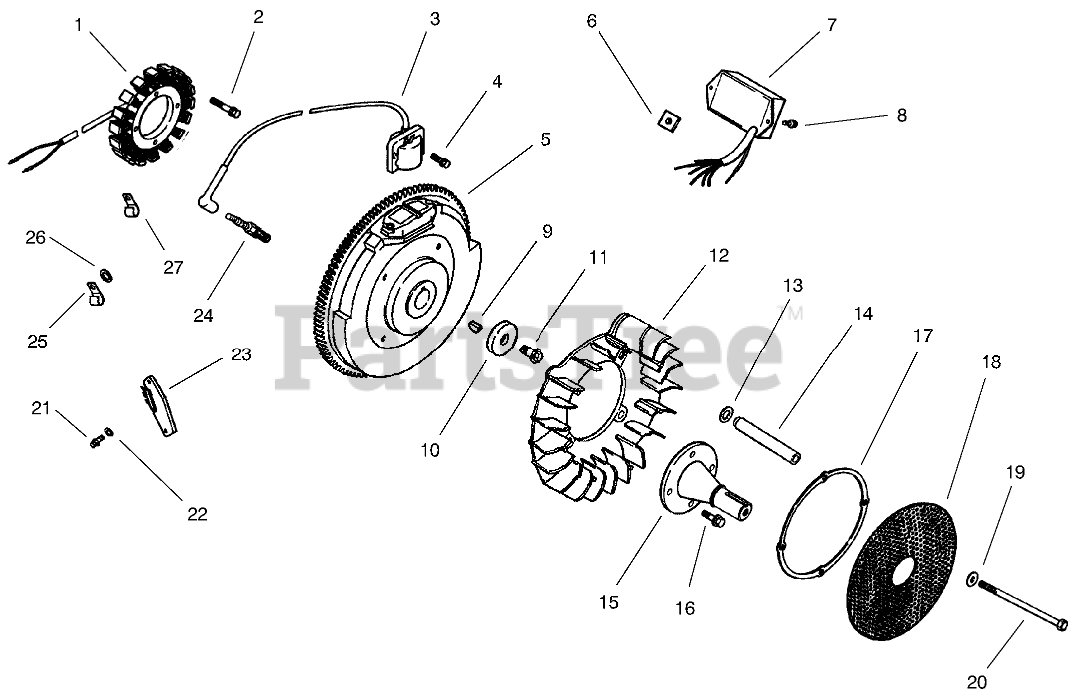

GROUP 5-IGNITION/ELECTRICAL Parts Diagram

  • Title

1

Kohler 54 755 09

Kit, 15 amp stator (Incl. 24 126 71 bracket)
(Superseded to 54 755 09-S)

Note: Obtain Parts From Your Local Kohler Dealer

$149.99

$

In Stock, Qty 8

0

1

Kohler 54 755 09

Kit, 15 amp stator (Incl. 24 126 71 bracket)
(Superseded to 54 755 09-S)

Note: Kohler Engine Num CH22S-PS-66545

$149.99

$

In Stock, Qty 8

0

2

Kohler M-0548025

Screw
(Superseded to M-548025)

Note: Obtain Parts From Your Local Kohler Dealer

$2.49

$

In Stock, only 2 left!

0

2

Kohler M-0548025

Screw
(Superseded to M-548025)

Note: Kohler Engine Num CH22S-PS-66545

$2.49

$

In Stock, only 2 left!

0

3

2458403

Module-Ignition

Note: Kohler Engine Num CH22S-PS-66545

$

$

Not available

3

2458403

Module-Ignition

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

4

Kohler M-0561025

Screw-HSH

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

4

Kohler M-0561025

Screw-HSH

Note: Kohler Engine Num CH22S-PS-66545

$

$

Not available

5

2402502

Flywheel

Note: Kohler Engine Num CH22S-PS-66545

$

$

Not available

5

2402502

Flywheel

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

6

Kohler 24 100 02

Nut-Plastic
(Superseded to 24 100 02-S)

Note: Obtain Parts From Your Local Kohler Dealer

$2.49

$

Usually ships in 2-5 days

0

6

Kohler 24 100 02

Nut-Plastic
(Superseded to 24 100 02-S)

Note: Kohler Engine Num CH22S-PS-66545

$2.49

$

Usually ships in 2-5 days

0

7

Kohler 24 584 09

Module, speed adv.
(Superseded to 24 584 09-S)

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

7

Kohler 24 584 09

Module, speed adv.
(Superseded to 24 584 09-S)

Note: Kohler Engine Num CH22S-PS-66545

$

$

Not available

8

2408641

Screw

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

8

2408641

Screw

Note: Kohler Engine Num CH22S-PS-66545

$

$

Not available

9

Kohler X-42-15

Key
(Superseded to X-42-15-S)

Note: Kohler Engine Num CH22S-PS-66545

$2.99

$

In Stock, Qty 6

0

9

Kohler X-42-15

Key
(Superseded to X-42-15-S)

Note: Obtain Parts From Your Local Kohler Dealer

$2.99

$

In Stock, Qty 6

0

10

Kohler 12 468 03

Washer
(Superseded to 25 468 09-S)

Note: Obtain Parts From Your Local Kohler Dealer

$6.49

$

In Stock, only 2 left!

0

10

Kohler 12 468 03

Washer
(Superseded to 25 468 09-S)

Note: Kohler Engine Num CH22S-PS-66545

$6.49

$

In Stock, only 2 left!

0

11

Kohler 12 086 14

Screw
(Superseded to 25 086 361-S)

Note: Kohler Engine Num CH22S-PS-66545

$3.99

$

In Stock, Qty 12

0

11

Kohler 12 086 14

Screw
(Superseded to 25 086 361-S)

Note: Obtain Parts From Your Local Kohler Dealer

$3.99

$

In Stock, Qty 12

0

12

2415703

Fan

Note: Kohler Engine Num CH22S-PS-66545

$

$

Not available

12

2415703

Fan

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

13

2446811

Washer, sping

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

13

2446811

Washer, sping

Note: Kohler Engine Num CH22S-PS-66545

$

$

Not available

14

Kohler 24 112 14

Spacer
(Superseded to 24 112 14-S)

Note: Kohler Engine Num CH22S-PS-66545

$18.99

$

Usually ships in 2-5 days

0

14

Kohler 24 112 14

Spacer
(Superseded to 24 112 14-S)

Note: Obtain Parts From Your Local Kohler Dealer

$18.99

$

Usually ships in 2-5 days

0

15

2414425

Shaft, front drive

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

15

2414425

Shaft, front drive

Note: Kohler Engine Num CH22S-PS-66545

$

$

Not available

16

Kohler M-0839025

Screw
(Superseded to M-839025)

Note: Obtain Parts From Your Local Kohler Dealer

$2.49

$

Usually ships in 2-5 days

0

16

Kohler M-0839025

Screw
(Superseded to M-839025)

Note: Kohler Engine Num CH22S-PS-66545

$2.49

$

Usually ships in 2-5 days

0

17

2414106

Ring-Support

Note: Kohler Engine Num CH22S-PS-66545

$

$

Not available

17

2414106

Ring-Support

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

18

Kohler 24 162 22

Screen-Grass
(Superseded to 24 162 38-S)

Note: Obtain Parts From Your Local Kohler Dealer

$24.99

$

In Stock, only 1 left!

0

18

Kohler 24 162 22

Screen-Grass
(Superseded to 24 162 38-S)

Note: Kohler Engine Num CH22S-PS-66545

$24.99

$

In Stock, only 1 left!

0

19

Kohler X-25-53

Washer
(Superseded to X-25-53-S)

Note: Obtain Parts From Your Local Kohler Dealer

$3.49

$

Usually ships in 2-5 days

0

19

Kohler X-25-53

Washer
(Superseded to X-25-53-S)

Note: Kohler Engine Num CH22S-PS-66545

$3.49

$

Usually ships in 2-5 days

0

20

Kohler M-0603100

Screw-Hex
(Superseded to M-603100-S)

Note: Kohler Engine Num CH22S-PS-66545

$4.49

$

In Stock, only 4 left!

0

20

Kohler M-0603100

Screw-Hex
(Superseded to M-603100-S)

Note: Obtain Parts From Your Local Kohler Dealer

$4.49

$

In Stock, only 4 left!

0

21

Kohler 24 086 18

Screw
(Superseded to 24 086 18-S)

Note: Obtain Parts From Your Local Kohler Dealer

$2.49

$

Usually ships in 2-5 days

0

21

Kohler 24 086 18

Screw
(Superseded to 24 086 18-S)

Note: Kohler Engine Num CH22S-PS-66545

$2.49

$

Usually ships in 2-5 days

0

22

Kohler X-25-92

Washer
(Superseded to X-25-92-S)

Note: Kohler Engine Num CH22S-PS-66545

$2.49

$

In Stock, only 2 left!

0

22

Kohler X-25-92

Washer
(Superseded to X-25-92-S)

Note: Obtain Parts From Your Local Kohler Dealer

$2.49

$

In Stock, only 2 left!

0

23

Kohler 25 403 03

Rectifier-Regulator
(Superseded to 25 403 03-S)

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

23

Kohler 25 403 03

Rectifier-Regulator
(Superseded to 25 403 03-S)

Note: Kohler Engine Num CH22S-PS-66545

$

$

Not available

24

Kohler 12 132 02

Plug-Spark
(Superseded to 12 132 02-S)

Note: Obtain Parts From Your Local Kohler Dealer

$4.49

$

In Stock, Qty 20+

0

24

Kohler 12 132 02

Plug-Spark
(Superseded to 12 132 02-S)

Note: Kohler Engine Num CH22S-PS-66545

$4.49

$

In Stock, Qty 20+

0

25

Kohler 47 154 01

Clamp
(Superseded to 47 154 01-S)

Note: Kohler Engine Num CH22S-PS-66545

$5.49

$

In Stock, only 4 left!

0

25

Kohler 47 154 01

Clamp
(Superseded to 47 154 01-S)

Note: Obtain Parts From Your Local Kohler Dealer

$5.49

$

In Stock, only 4 left!

0

26

Kohler X-25-63

Washer
(Superseded to X-25-63-S)

Note: Obtain Parts From Your Local Kohler Dealer

$2.49

$

In Stock, only 3 left!

0

26

Kohler X-25-63

Washer
(Superseded to X-25-63-S)

Note: Kohler Engine Num CH22S-PS-66545

$2.49

$

In Stock, only 3 left!

0

27

Kohler 48 154 02

Clip
(Superseded to 48 154 02-S)

Note: Kohler Engine Num CH22S-PS-66545

$16.99

$

Usually ships in 2-5 days

0

27

Kohler 48 154 02

Clip
(Superseded to 48 154 02-S)

Note: Obtain Parts From Your Local Kohler Dealer

$16.99

$

Usually ships in 2-5 days

0

2551828

Lead-Black

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

2551828

Lead-Black

Note: Kohler Engine Num CH22S-PS-66545

$

$

Not available

2551828

Lead-Black

Note: Not illustrated

$

$

Not available

2417642

Harness, wiring

Note: Not illustrated

$

$

Not available

2417642

Harness, wiring

Note: Kohler Engine Num CH22S-PS-66545

$

$

Not available

2417642

Harness, wiring

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

Kohler 24 176 49

Harness, wiring (Includes 3 connectors)
(Superseded to 24 176 49-S)

Note: Obtain Parts From Your Local Kohler Dealer

$25.99

$

Usually ships in 2-5 days

0

Kohler 24 176 49

Harness, wiring (Includes 3 connectors)
(Superseded to 24 176 49-S)

Note: Kohler Engine Num CH22S-PS-66545

$25.99

$

Usually ships in 2-5 days

0

Kohler 24 176 49

Harness, wiring (Includes 3 connectors)
(Superseded to 24 176 49-S)

Note: Not illustrated

$25.99

$

Usually ships in 2-5 days

0

Kohler 236602

Connector
(Superseded to 236602-S)

Note: Not illustrated

$24.99

$

In Stock, only 1 left!

0

Kohler 236602

Connector
(Superseded to 236602-S)

Note: Kohler Engine Num CH22S-PS-66545

$24.99

$

In Stock, only 1 left!

0

Kohler 236602

Connector
(Superseded to 236602-S)

Note: Obtain Parts From Your Local Kohler Dealer

$24.99

$

In Stock, only 1 left!

0

1515501

Connector

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

1515501

Connector

Note: Kohler Engine Num CH22S-PS-66545

$

$

Not available

1515501

Connector

Note: Not illustrated

$

$

Not available

5215504

Connector

Note: Not illustrated

$

$

Not available

5215504

Connector

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

5215504

Connector

Note: Kohler Engine Num CH22S-PS-66545

$

$

Not available

Kohler 24 126 71

Bracket-Wire, Stator
(Superseded to 24 126 71-S)

Note: Obtain Parts From Your Local Kohler Dealer

$15.99

$

Usually ships in 2-5 days

0

Kohler 24 126 71

Bracket-Wire, Stator
(Superseded to 24 126 71-S)

Note: Kohler Engine Num CH22S-PS-66545

$15.99

$

Usually ships in 2-5 days

0

Kohler 24 126 71

Bracket-Wire, Stator
(Superseded to 24 126 71-S)

Note: Not illustrated

$15.99

$

Usually ships in 2-5 days

0

2508643

Screw-Set

Note: Not illustrated

$

$

Not available

2508643

Screw-Set

Note: Kohler Engine Num CH22S-PS-66545

$

$

Not available

2508643

Screw-Set

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

Kohler X-22-11

Washer
(Superseded to X-22-11-S)

Note: Obtain Parts From Your Local Kohler Dealer

$2.49

$

In Stock, only 3 left!

0

Kohler X-22-11

Washer
(Superseded to X-22-11-S)

Note: Not illustrated

$2.49

$

In Stock, only 3 left!

0

Kohler X-22-11

Washer
(Superseded to X-22-11-S)

Note: Kohler Engine Num CH22S-PS-66545

$2.49

$

In Stock, only 3 left!

0

4115503

Connector

Note: Not illustrated

$

$

Not available

4115503

Connector

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

4115503

Connector

Note: Kohler Engine Num CH22S-PS-66545

$

$

Not available

Connector

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

Connector

Note: Not illustrated

$

$

Not available

Connector

Note: Kohler Engine Num CH22S-PS-66545

$

$

Not available

Kohler X-67-3

Screw
(Superseded to X-67-3-S)

Note: Not illustrated

$3.49

$

Usually ships in 2-5 days

0

Kohler X-67-3

Screw
(Superseded to X-67-3-S)

Note: Kohler Engine Num CH22S-PS-66545

$3.49

$

Usually ships in 2-5 days

0

Kohler X-67-3

Screw
(Superseded to X-67-3-S)

Note: Obtain Parts From Your Local Kohler Dealer

$3.49

$

Usually ships in 2-5 days

0

Kohler X-25-63

Washer
(Superseded to X-25-63-S)

Note: Obtain Parts From Your Local Kohler Dealer

$2.49

$

In Stock, only 3 left!

0

Kohler X-25-63

Washer
(Superseded to X-25-63-S)

Note: Not illustrated

$2.49

$

In Stock, only 3 left!

0

Kohler X-25-63

Washer
(Superseded to X-25-63-S)

Note: Kohler Engine Num CH22S-PS-66545

$2.49

$

In Stock, only 3 left!

0
