73560 (522 xi) - Toro Garden Tractor (SN: 089000001 - 089999999) (1998) FENDER, FOOTREST AND SEAT ASSEMBLY Parts Diagram

Garden Tractor

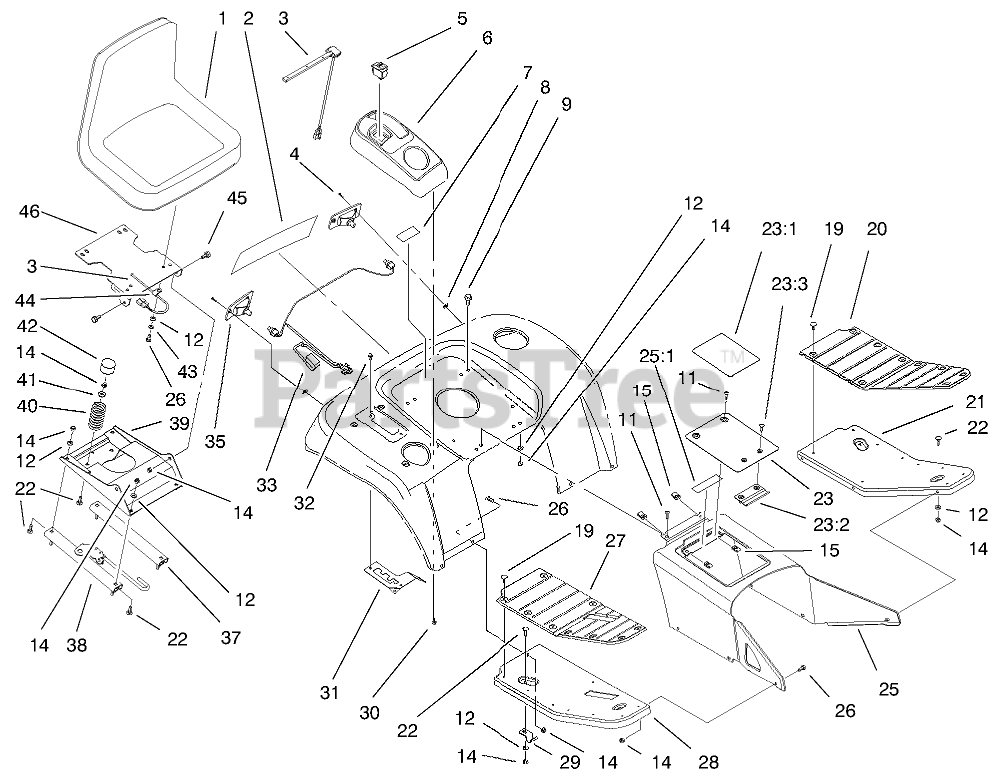

FENDER, FOOTREST AND SEAT ASSEMBLY Parts Diagram

  • Title

1

Toro 94-3518

SEAT
(Superseded to 98-1625)

$

$

Not available

2

Toro 95-4262

DECAL - FENDER

$

$

Not available

3

Toro 38-1420

SWITCH-SEAT

$

$

Not available

4

Toro 3250-29

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

5

Toro 94-7602

SWITCH-CRUISE

$

$

Not available

6

Toro 94-2120

POD-CONTROL

$

$

Not available

7

Toro 76-1340

DECAL - USA

$16.99

$

In Stock, only 1 left!

0

8

Toro 95-4115

NUT-SPEED

$2.49

$

Usually ships in 3-6 days

0

9

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

11

Toro 92-7020

SCREW-HH

$

$

Not available

12

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

16

Toro 80-8760

DECAL-DANGER

$

$

Not available

19

Toro 3290-479

FASTENER-PANEL

$4.99

$

In Stock, Qty 20+

0

20

Toro 94-2096

PAD-FOOTREST, LH

$

$

Not available

21

Toro 94-2090-01

FOOTREST-LH

$164.99

$

Usually ships in 3-6 days

0

22

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

23

Toro 98-1621

ASM - TUNNEL COVER TORO

$

$

Not available

23:1

Toro 95-4263

DECAL - DANGER

$

$

Not available

23:2

Toro 95-4107

RETAINER-COVER

$

$

Not available

23:4

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

25

Toro 98-5025-01

Tunnel ASM

$

$

Currently unavailable

25:1

Toro 80-8760

DECAL-DANGER

$

$

Not available

26

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 16

0

27

Toro 94-2095

PAD-FOOTREST, RH

$

$

Not available

28

Toro 94-2089-01

FOOTREST-RH

$

$

Not available

29

Toro 95-3858

BRACKET-FOOTREST

$

$

Not available

30

Toro 32144-20

SCREW-HHFTF

$2.99

$

In Stock, only 4 left!

0

31

Toro 98-8711

Gate-Hi Lo Shift
(Superseded to 98-8711-03)

$

$

Not available

32

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

33

Toro 94-7611

HARNESS - REAR

$

$

Not available

35

Toro 94-2124

LAMP-TAILLIGHT

$

$

Not available

37

Toro 94-2112

SLIDE-SLAVE, SEAT

$

$

Not available

38

Toro 94-2177

SLIDE-LATCH, SEAT

$303.99

$

Usually ships in 3-6 days

0

39

Toro 94-2107-03

Base-Seat
(Superseded to 94-2107)

$134.99

$

Usually ships in 3-6 days

0

40

Toro 94-2106-03

SPRING-COMPRESSION

$25.99

$

Usually ships in 3-6 days

0

41

Toro 105503

BUSHING

$1.49

$

In Stock, Qty 7

0

42

Toro 95-4242

CAP-SPRING, SEAT

$

$

Not available

43

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

44

Toro 98-2390

CLAMP-R

$

$

Not available

45

Toro 37-8771

BOLT-SHOULDER

$5.49

$

In Stock, only 3 left!

0

46

Toro 94-2111-03

Mount-Seat
(Superseded to 94-2111)

$

$

Not available
