73552 (523 Dxi) - Toro Garden Tractor (SN: 200000001 - 200999999) (2000) ENGINE ASSEMBLY Parts Diagram

Garden Tractor

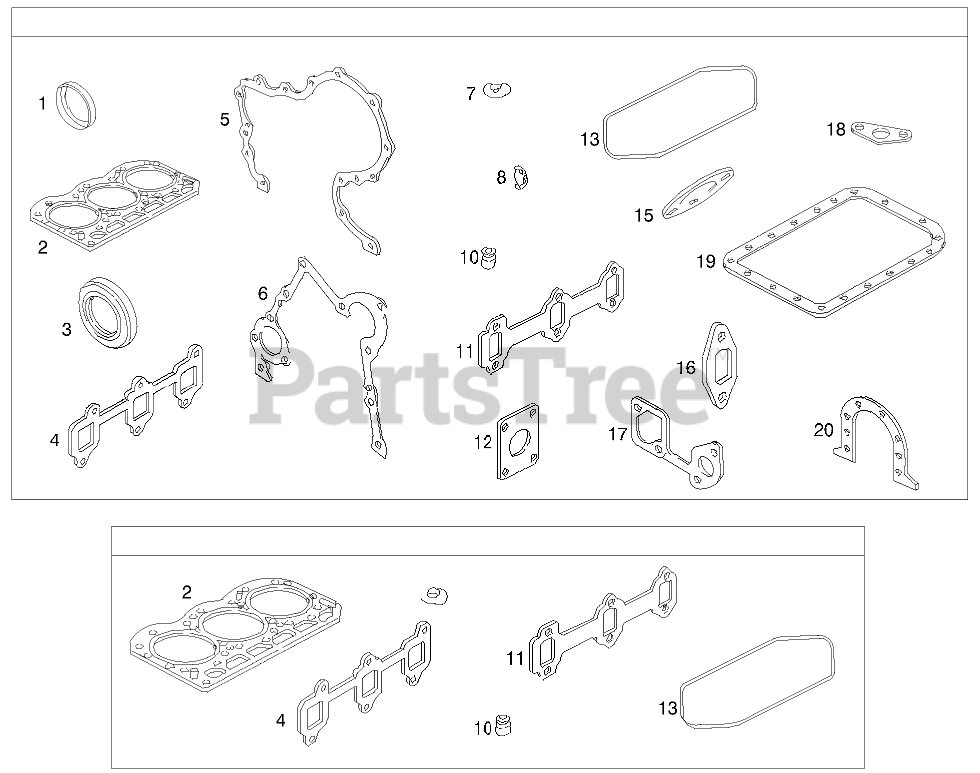

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 99-9003

SEAL-OIL

$138.99

$

Usually ships in 3-6 days

0

2

Toro 99-9612

GASKET-HEAD, CYLINDER

$310.99

$

Usually ships in 3-6 days

0

3

Toro 99-9126

SEAL-OIL
(Superseded to 115-2291)

$108.99

$

Usually ships in 3-6 days

0

4

Toro 99-9662

GASKET-INTAKE

$30.99

$

Usually ships in 3-6 days

0

4

Toro 100-5222

NIPPLE ASM

$

$

Not available

5

Toro 99-9653

GASKET-COVER, GEAR

$45.99

$

Usually ships in 3-6 days

0

5

Toro 100-5230

VALVE ASM

$

$

Not available

6

Toro 99-9136

GASKET-COVER, GEAR

$50.99

$

Usually ships in 3-6 days

0

7

Toro 99-9063

WASHER-SEAL

$34.99

$

Usually ships in 3-6 days

0

8

Toro 99-9645

Washer-Seal
(Superseded to 99-9249)

$11.99

$

In Stock, only 4 left!

0

9

Toro 99-9667

GASKET-SET

$586.99

$

Usually ships in 3-6 days

0

10

Toro 99-9643

SEAL-VALVE

$20.99

$

Usually ships in 3-6 days

0

11

Toro 99-9178

GASKET-EXHAUST

$59.99

$

Usually ships in 3-6 days

0

12

Toro 99-9179

GASKET-EXHAUST

$62.99

$

Usually ships in 3-6 days

0

13

Toro 99-9073

GASKET-COVER, ROCKER

$60.99

$

Usually ships in 3-6 days

0

14

Toro 99-9668

VALVE OVERHAUL KIT

$337.99

$

Usually ships in 3-6 days

0

15

Toro 99-9163

GASKET-OUTLET

$15.99

$

Usually ships in 3-6 days

0

15

Toro 99-9039

SHAFT-GEAR

$

$

Not available

16

Toro 99-9166

GASKET-HOUSING, INLET

$18.99

$

Usually ships in 3-6 days

0

17

Toro 99-9168

GASKET-PUMP, WATER

$18.99

$

Usually ships in 3-6 days

0

18

Toro 99-9120

GASKET-STRAINER, OIL

$

$

Not available

19

Toro 99-9121

GASKET-PAN, OIL

$81.99

$

In Stock, only 1 left!

0

20

Toro 99-9021

GASKET-RETAINER

$18.99

$

Usually ships in 3-6 days

0
