73552 (523 Dxi) - Toro Garden Tractor (SN: 200000001 - 200999999) (2000) ENGINE ASSEMBLY Parts Diagram

Garden Tractor

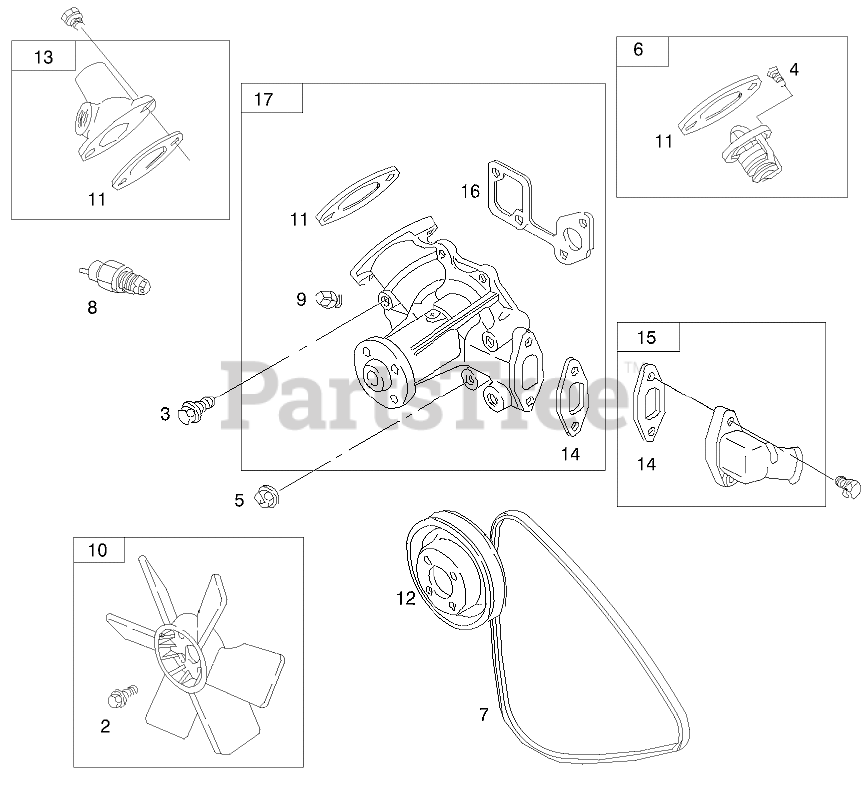

ENGINE ASSEMBLY Parts Diagram

  • Title

2

Toro 99-9111

SCREW-HEX

$16.99

$

Usually ships in 3-6 days

0

3

Toro 99-9151

SCREW-HEX

$15.99

$

Usually ships in 3-6 days

0

4

Toro 99-9152

SCREW-METRIC

$20.99

$

Usually ships in 3-6 days

0

4

Toro 100-5222

NIPPLE ASM

$

$

Not available

5

Toro 99-9153

NUT-HEX, METRIC

$14.99

$

Usually ships in 3-6 days

0

5

Toro 100-5230

VALVE ASM

$

$

Not available

6

Toro 99-9155

THERMOSTAT

$

$

Not available

7

Toro 99-9156

BELT-V

$91.99

$

Usually ships in 3-6 days

0

8

Toro 99-9157

SWITCH-TEMPERATURE, WATER

$84.99

$

Usually ships in 3-6 days

0

9

Toro 99-9159

PLUG

$12.99

$

Usually ships in 3-6 days

0

9

Toro 99-9667

GASKET-SET

$586.99

$

Usually ships in 3-6 days

0

10

Toro 99-9657

FAN-RADIATOR

$

$

Not available

11

Toro 99-9163

GASKET-OUTLET

$15.99

$

Usually ships in 3-6 days

0

12

Toro 99-9164

PULLEY-PUMP

$238.99

$

Usually ships in 3-6 days

0

13

Toro 99-9658

HOUSING-OUTLET

$

$

Not available

14

Toro 99-9166

GASKET-HOUSING, INLET

$18.99

$

Usually ships in 3-6 days

0

14

Toro 99-9668

VALVE OVERHAUL KIT

$337.99

$

Usually ships in 3-6 days

0

15

Toro 99-9167

HOUSING-INLET

$

$

Not available

15

Toro 99-9039

SHAFT-GEAR

$

$

Not available

16

Toro 99-9168

GASKET-PUMP, WATER

$18.99

$

Usually ships in 3-6 days

0

17

Toro 99-9659

PUMP-WATER

$716.99

$

Usually ships in 3-6 days

0
