73552 (523 Dxi) - Toro Garden Tractor (SN: 099000001 - 099999999) (1999) POWER STEERING LOWER ASSEMBLY Parts Diagram

Garden Tractor

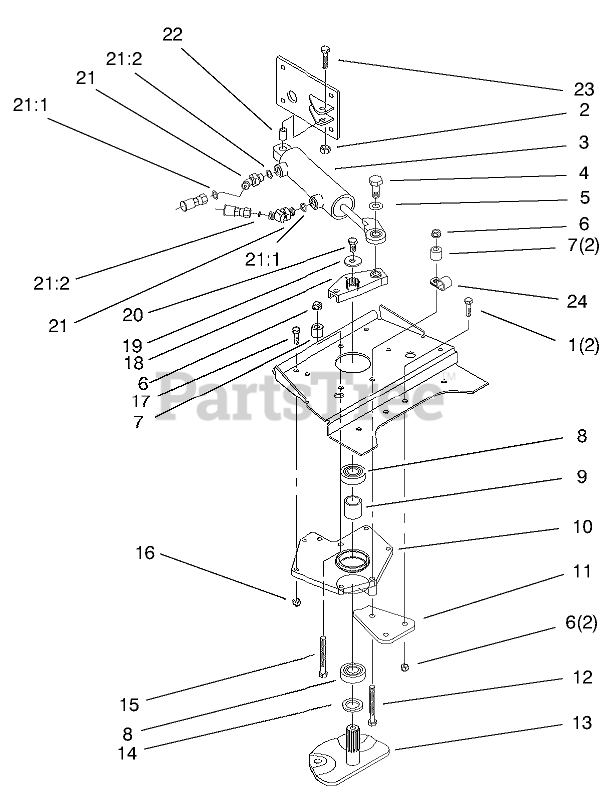

POWER STEERING LOWER ASSEMBLY Parts Diagram

  • Title
1

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

2

$6.49

$

In Stock, only 2 left!

0

3

Toro 99-1909

CYLINDER-STEERING, POWER

$

$

Not available

4

Toro 94-7976

SCREW-HH

$5.99

$

Usually ships in 3-6 days

0

5

Toro 98-3087

WASHER

$

$

Not available

6

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

7

Toro 94-7819

SPACER-STOP

$

$

Not available

8

Toro 251-82

BEARING-BALL

$20.99

$

In Stock, Qty 6

0

9

Toro 94-2219

SPACER-STEERING, POWER

$

$

Not available

10

Toro 94-7581

HOUSING-POWER STEERING

$

$

Not available

11

Toro 94-7820-03

PLATE-STEERING, POWER

$

$

Not available

12

Toro 323-15

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

13

Toro 94-2142-03

SHAFT-SECTOR

$249.99

$

Usually ships in 3-6 days

0

14

Toro 3256-42

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

15

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

18

Toro 94-7556

ARM-POWER STEERING, UPPER

$

$

Not available

19

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0

20

Toro 98-3052

SCREW-LOCKING, THREAD

$1.99

$

Usually ships in 3-6 days

0

21

Toro 95-4136

FITTING-HYD, 45 DEGREE
(Superseded to 340-137)

$45.99

$

Usually ships in 3-6 days

0

21:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

21:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

22

Toro 99-2320

SPACER-CYLINDER

$

$

Not available

23

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

24

Toro 98-2358

CLAMP - R

$

$

Not available
