73552 (523 Dxi) - Toro Garden Tractor (SN: 099000001 - 099999999) (1999) LIQUID COOLED DIESEL ENGINE ASSEMBLY Parts Diagram

Garden Tractor

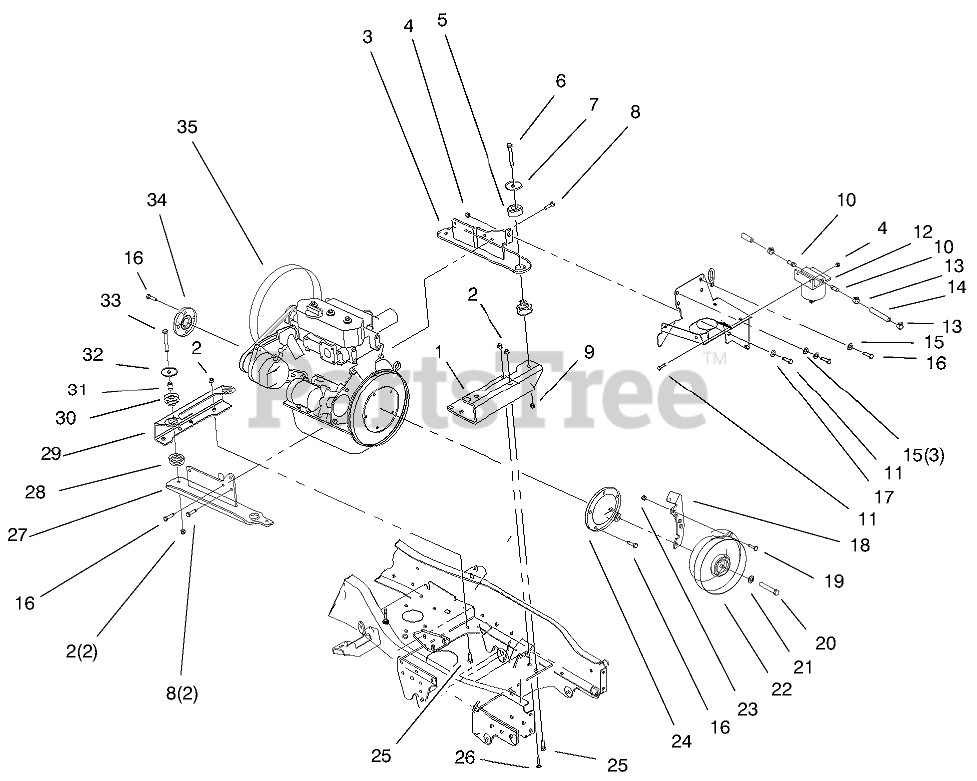

LIQUID COOLED DIESEL ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 95-3882-03

SUPPORT-FRONT ENG

$

$

Not available

2

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 16

0

3

Toro 95-3890-03

Brkt-LH Iso

$195.99

$

Usually ships in 3-6 days

0

4

Toro 3296-8

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

5

Toro 95-4188

MOUNT - ISOLATION

$

$

Not available

5:2

Toro 93-2195

FILTER
(Superseded to 108-3811)

$23.99

$

In Stock, Qty 9

0

5:3:1

Toro E643283

Latch-Air Cleaner
(Superseded to 1-643283)

$21.99

$

Usually ships in 3-6 days

0

5:3

Toro 94-3652

COVER ASM

$96.99

$

In Stock, only 2 left!

0

5:4

Toro 94-1414

VALVE-VACUATOR

$

$

Currently unavailable

5:5

Toro 285-17

PLUG-PIPE

$3.49

$

Usually ships in 3-6 days

0

6

Toro 325-12

SCREW-HH

$6.49

$

In Stock, only 2 left!

0

7

Toro 55-7960

WASHER-LARGE

$2.99

$

Usually ships in 3-6 days

0

8

Toro 95-4183

SCREW-THREADLOCKING

$

$

Not available

9

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 353-783

FITTING-STRAIGHT

$30.99

$

Usually ships in 3-6 days

0

11

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Toro 63-7650

SEPARATOR-FILTER / WATER

$186.99

$

Usually ships in 3-6 days

0

12:1

Toro 63-8280

HEAD ASM
(Superseded to 63-7650)

$186.99

$

Usually ships in 3-6 days

0

12:2

Toro 63-8290

VENT-AIR

$23.99

$

In Stock, only 1 left!

0

12:3

Toro 63-8300

ELEMENT-SPIN ON

$31.99

$

In Stock, only 1 left!

0

12:4

Toro 63-8310

VALVE-DRAIN

$16.99

$

Usually ships in 3-6 days

0

13

Toro 2412-108

CLAMP-WORM

$3.99

$

In Stock, only 1 left!

0

14

Toro 99-9687

HOSE-FUEL
(Superseded to 109-0308)

$11.99

$

Usually ships in 3-6 days

0

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Toro 95-4184

SCREW-HHF
(Superseded to 139-3392)

$2.99

$

Usually ships in 3-6 days

0

17

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 95-4066-03

BRKT-CLUTCH

$

$

Not available

19

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

20

Toro 94-7973

SCREW-HH

$

$

Not available

21

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

22

Toro 94-2190

CLUTCH-PTO

$843.99

$

Usually ships in 3-6 days

0

23

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

24

Toro 94-2065

HUB - PTO, BRIGGS

$

$

Not available

25

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

26

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 15

0

27

Toro 95-3889-03

BRKT-RH ISO

$

$

Not available

28

Toro 95-4190

RING - ISOLATION

$

$

Not available

29

Toro 95-3883-03

SUPPORT-REAR ENG

$

$

Not available

30

Toro 95-4189

BUSHING - ISOLATION

$

$

Not available

31

Toro 94-7527

SLEEVE - ISO MOUNT

$

$

Not available

32

Toro 83-1040

WASHER-FLAT

$4.49

$

In Stock, only 2 left!

0

33

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

34

Toro 94-7892

HUB - DRIVE, DL

$325.99

$

Usually ships in 3-6 days

0

35

Toro 94-2163

ENGINE-DAIHATSU DIESEL 950CC

$

$

Not available

35

Toro 99-5310

ENGINE-DAIHATSU DIESEL 850CC

$10961.99

$

Usually ships in 3-6 days

0
