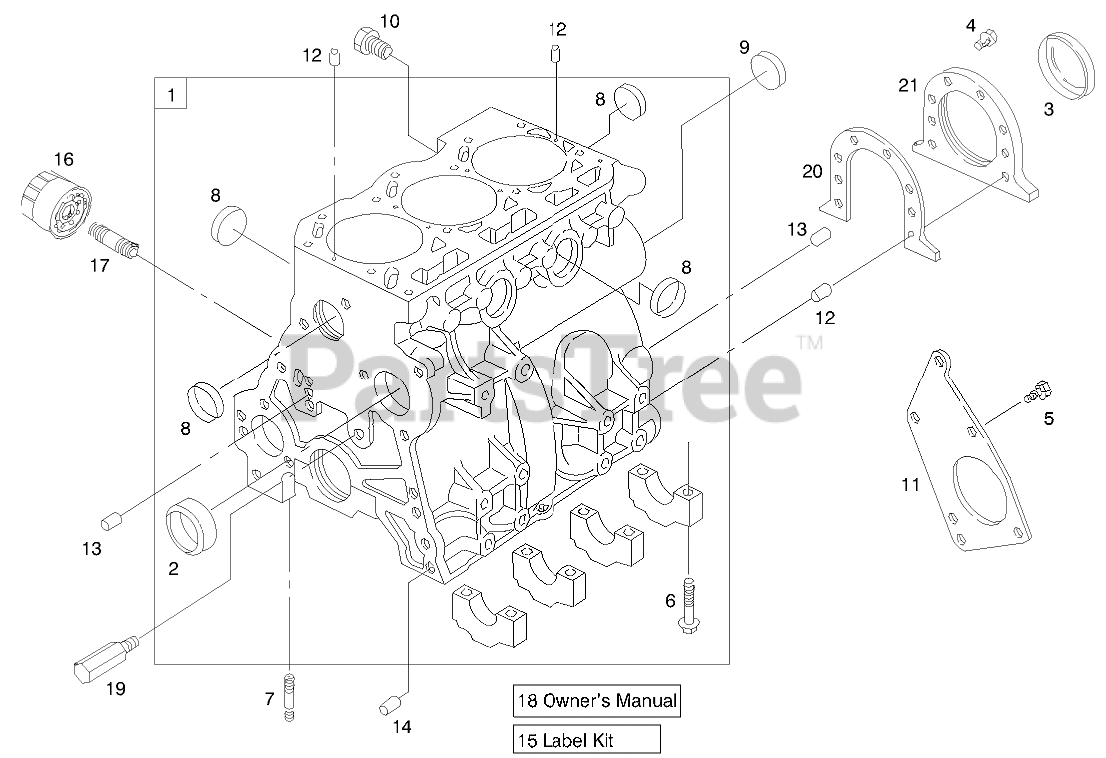

73552 (523 Dxi) - Toro Garden Tractor (SN: 099000001 - 099999999) (1999) ENGINE ASSEMBLY (SERIAL NO. 99000001 & UP)(MODEL 73552) ENGINE ASSEMBLY (SERIAL NO. 99001001 & UP)(MODEL 73590) Parts Diagram

Garden Tractor

ENGINE ASSEMBLY (SERIAL NO. 99000001 & UP)(MODEL 73552) ENGINE ASSEMBLY (SERIAL NO. 99001001 & UP)(MODEL 73590) Parts Diagram

  • Title

1

Toro 99-9600

Cylinder Assembly
(Superseded to 99-9266)

$2929.99

$

Usually ships in 3-6 days

0

2

Toro 99-9002

BUSHING

$211.99

$

Usually ships in 3-6 days

0

3

Toro 99-9003

SEAL-OIL

$145.99

$

Usually ships in 3-6 days

0

4

Toro 99-9004

SCREW-HEX

$

$

Not available

5

Toro 99-9005

SCREW-HEX

$19.99

$

Usually ships in 3-6 days

0

6

Toro 99-9006

SCREW-HEX

$12.99

$

Usually ships in 3-6 days

0

7

Toro 99-9007

STUD-METRIC

$7.99

$

Usually ships in 3-6 days

0

8

Toro 99-9008

PLUG-WELCH

$11.99

$

Usually ships in 3-6 days

0

8

Toro 99-9157

SWITCH-TEMPERATURE, WATER

$88.99

$

Usually ships in 3-6 days

0

9

Toro 99-9010

PLUG-WELCH

$11.99

$

Usually ships in 3-6 days

0

9

Toro 99-9667

GASKET-SET

$616.99

$

Usually ships in 3-6 days

0

10

Toro 99-9601

PLUG (CYLINDER BLOCK)

$

$

Not available

11

Toro 99-9011

BRACKET-MOUNTING

$

$

Not available

12

Toro 99-9012

PIN-LOCATING

$21.99

$

Usually ships in 3-6 days

0

13

Toro 99-9013

PIN-LOCATING

$23.99

$

Usually ships in 3-6 days

0

14

Toro 99-9014

PIN-LOCATING

$21.99

$

Usually ships in 3-6 days

0

14

Toro 99-9668

VALVE OVERHAUL KIT

$354.99

$

Usually ships in 3-6 days

0

15

Toro 99-9015

LABEL KIT

$

$

Not available

15

Toro 99-9039

SHAFT-GEAR

$

$

Not available

16

Toro 99-9017

FILTER-OIL
(Superseded to 108-3842)

$10.99

$

In Stock, Qty 7

0

17

Toro 99-9018

ADAPTER-FILTER, OIL
(Superseded to 105-9337)

$187.99

$

Usually ships in 3-6 days

0

18

Toro 99-9602

MANUAL-OWNERS

$

$

Not available

19

Toro 99-9020

NOZZLE-OIL

$

$

Not available

20

Toro 99-9021

GASKET-RETAINER

$19.99

$

Usually ships in 3-6 days

0

21

Toro 99-9022

RETAINER-SEAL

$

$

Not available
