73552 (523 Dxi) - Toro Garden Tractor (SN: 099000001 - 099999999) (1999) ENGINE ASSEMBLY (SERIAL NO. 99000001-9900130)(MODEL 73590) Parts Diagram

Garden Tractor

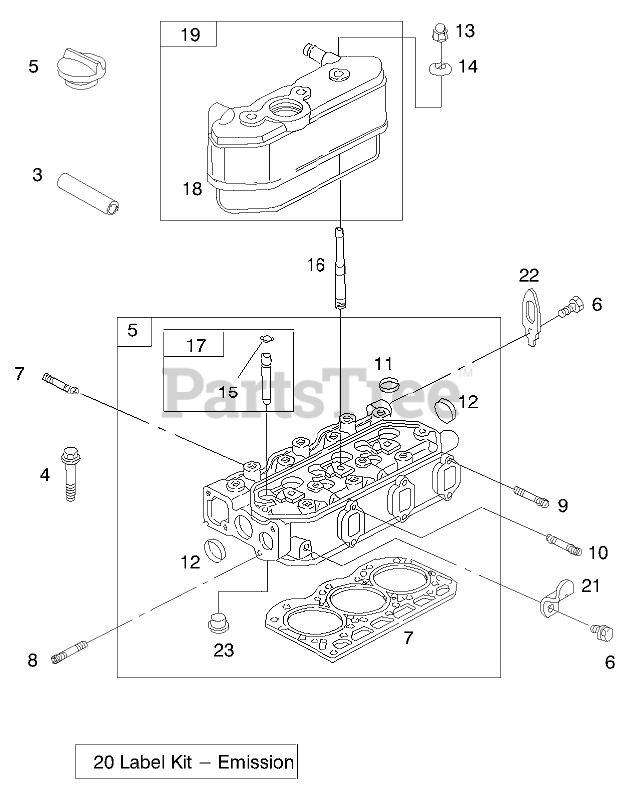

ENGINE ASSEMBLY (SERIAL NO. 99000001-9900130)(MODEL 73590) Parts Diagram

  • Title

1

Toro 99-9670

HEAD-CYLINDER

$

$

Not available

3

Toro 99-9613

TUBE-BREATHER
(Superseded to 104-7743)

$39.99

$

Usually ships in 3-6 days

0

4

Toro 99-9051

SCREW-METRIC

$

$

Not available

5

Toro 99-9052

CAP-FILL, OIL

$34.99

$

Usually ships in 3-6 days

0

6

Toro 99-9054

SCREW-HEX

$18.99

$

Usually ships in 3-6 days

0

7

Toro 99-9055

STUD-METRIC

$21.99

$

Usually ships in 3-6 days

0

8

Toro 99-9057

STUD-METRIC

$11.99

$

Usually ships in 3-6 days

0

8

Toro 99-9157

SWITCH-TEMPERATURE, WATER

$84.99

$

Usually ships in 3-6 days

0

9

Toro 99-9058

STUD-METRIC

$37.99

$

Usually ships in 3-6 days

0

9

Toro 99-9678

GASKET-SET
(Superseded to 115-2339)

$

$

Not available

10

Toro 99-9059

STUD-METRIC

$44.99

$

Usually ships in 3-6 days

0

11

Toro 99-9008

PLUG-WELCH

$11.99

$

Usually ships in 3-6 days

0

12

Toro 99-9060

PLUG-WELCH

$9.49

$

In Stock, only 1 left!

0

13

Toro 99-9061

NUT-HEX, METRIC

$

$

Not available

14

Toro 99-9063

WASHER-SEAL

$34.99

$

Usually ships in 3-6 days

0

14

Toro 99-9679

KIT-VALVE OVERHAUL
(Superseded to 107-9907)

$

$

Not available

15

Toro 99-9067

RETAINER

$48.99

$

Usually ships in 3-6 days

0

15

Toro 99-9039

SHAFT-GEAR

$

$

Not available

16

Toro 99-9101

STUD-ARM, ROCKER

$53.99

$

Usually ships in 3-6 days

0

17

Toro 99-9070

BUSHING-GUIDE

$408.99

$

Usually ships in 3-6 days

0

18

Toro 99-9073

GASKET-COVER, ROCKER

$60.99

$

Usually ships in 3-6 days

0

19

Toro 99-9074

COVER-ROCKER

$345.99

$

Usually ships in 3-6 days

0

20

Toro 99-9615

EMISSION LABEL KIT

$35.99

$

Usually ships in 3-6 days

0

21

Toro 99-9076

BRACKET-LIFTING

$

$

Not available

22

Toro 99-9077

BRACKET-LIFTING

$

$

Not available

23

Toro 99-9674

CHAMBER-COMBUSTION

$

$

Not available
