73552 (523 Dxi) - Toro Garden Tractor (SN: 099000001 - 099999999) (1999) ENGINE ASSEMBLY (SERIAL NO. 99000001-9900130)(MODEL 73590) Parts Diagram

Garden Tractor

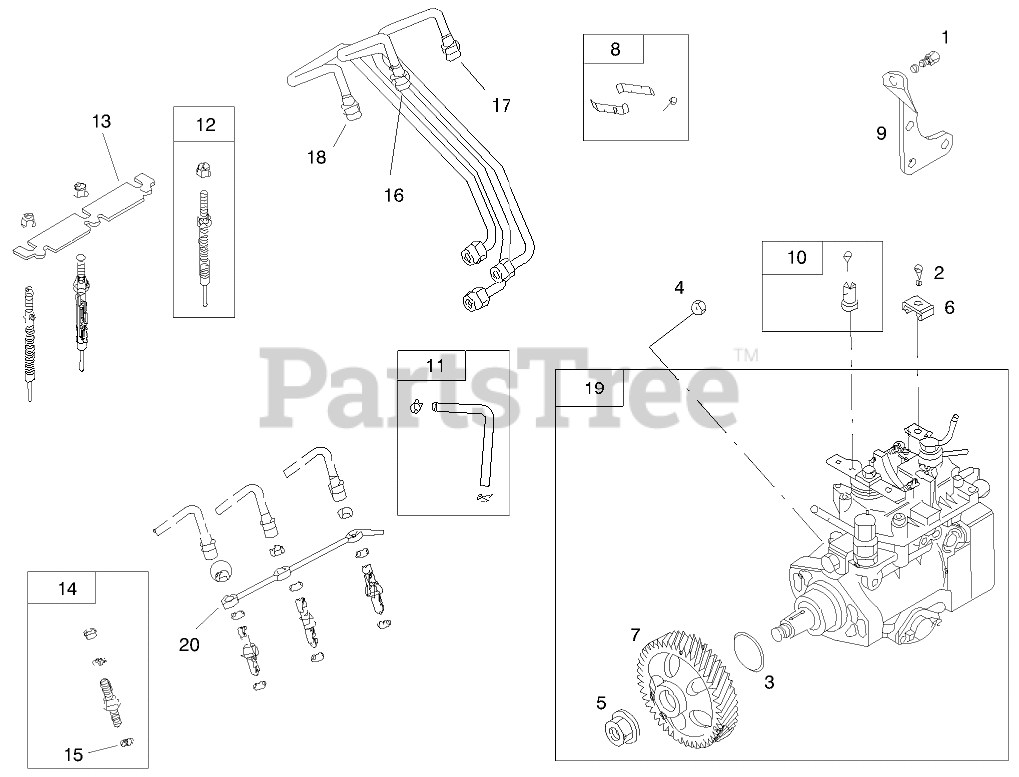

ENGINE ASSEMBLY (SERIAL NO. 99000001-9900130)(MODEL 73590) Parts Diagram

  • Title

1

Toro 99-9616

SCREW-HEX

$12.99

$

Usually ships in 3-6 days

0

1

Toro 99-9670

HEAD-CYLINDER

$

$

Not available

2

Toro 99-9617

Screw-Metric
(Superseded to 99-9056)

$47.99

$

Usually ships in 3-6 days

0

3

Toro 99-9618

O-RING

$

$

Not available

4

Toro 99-9619

NUT-HEX, METRIC

$

$

Not available

5

Toro 99-9620

NUT-HEX, METRIC

$

$

Not available

6

Toro 99-9688

CLAMP-CASING

$

$

Not available

7

Toro 99-9689

GEAR-DRIVE

$101.99

$

Usually ships in 3-6 days

0

8

Toro 99-9625

CLAMP

$

$

Not available

8

Toro 99-9157

SWITCH-TEMPERATURE, WATER

$84.99

$

Usually ships in 3-6 days

0

9

Toro 99-9626

BRACKET-SUPPORT

$

$

Not available

9

Toro 99-9678

GASKET-SET
(Superseded to 115-2339)

$

$

Not available

10

Toro 99-9628

CLAMP-SWIVEL

$21.99

$

Usually ships in 3-6 days

0

11

Toro 99-9629

HOSE / CLAMP ASM

$66.99

$

Usually ships in 3-6 days

0

12

Toro 99-9630

PLUG-GLOW
(Superseded to 114-4695)

$179.99

$

Usually ships in 3-6 days

0

13

Toro 99-9631

STRAP-PLUG, GLOW

$51.99

$

Usually ships in 3-6 days

0

14

Toro 99-9632

NOZZLE-INJECTOR

$709.99

$

Usually ships in 3-6 days

0

14

Toro 99-9679

KIT-VALVE OVERHAUL
(Superseded to 107-9907)

$

$

Not available

15

Toro 99-9633

SEAT-INJECTOR

$16.99

$

Usually ships in 3-6 days

0

15

Toro 99-9039

SHAFT-GEAR

$

$

Not available

16

Toro 99-9634

PIPE-INJECTOR, NO. 2

$128.99

$

Usually ships in 3-6 days

0

17

Toro 99-9635

PIPE-INJECTOR, NO. 3

$100.99

$

Usually ships in 3-6 days

0

18

Toro 99-9690

PIPE-INJECTOR, NO. 1

$103.99

$

Usually ships in 3-6 days

0

19

Toro 99-9691

PUMP-INJECTION

$9599.99

$

Usually ships in 3-6 days

0

20

Toro 99-9637

PIPE-RETURN, FUEL

$96.99

$

Usually ships in 3-6 days

0
