73552 (523 Dxi) - Toro Garden Tractor (SN: 099000001 - 099999999) (1999) ENGINE ASSEMBLY (SERIAL NO. 99000001-9900130)(MODEL 73590) Parts Diagram

Garden Tractor

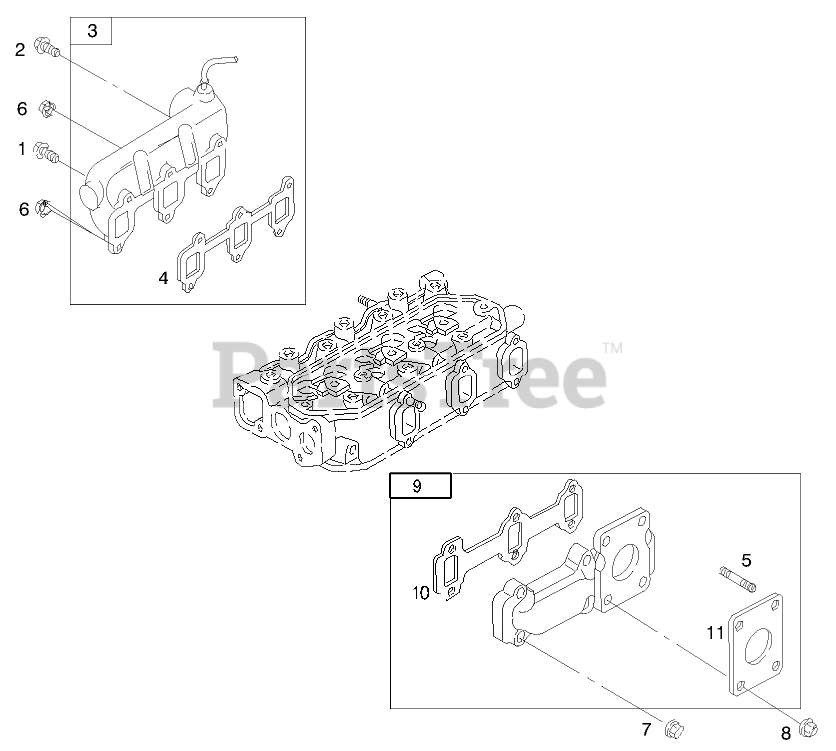

ENGINE ASSEMBLY (SERIAL NO. 99000001-9900130)(MODEL 73590) Parts Diagram

  • Title

1

Toro 99-9004

SCREW-HEX

$

$

Not available

1

Toro 99-9670

HEAD-CYLINDER

$

$

Not available

2

Toro 99-9660

SCREW-HEX

$15.99

$

Usually ships in 3-6 days

0

3

Toro 99-9661

MANIFOLD-INTAKE

$389.99

$

Usually ships in 3-6 days

0

4

Toro 99-9662

GASKET-INTAKE

$31.99

$

Usually ships in 3-6 days

0

5

Toro 99-9677

Stud-Manifold, Exhaust
(Superseded to 99-9221)

$30.99

$

Usually ships in 3-6 days

0

6

Toro 99-9114

NUT-HEX, METRIC

$17.99

$

Usually ships in 3-6 days

0

7

Toro 99-9175

NUT-HEX, METRIC

$20.99

$

Usually ships in 3-6 days

0

8

Toro 99-9176

NUT-HEX

$12.99

$

Usually ships in 3-6 days

0

8

Toro 99-9157

SWITCH-TEMPERATURE, WATER

$88.99

$

Usually ships in 3-6 days

0

9

Toro 99-9177

MANIFOLD-EXHAUST

$

$

Not available

9

Toro 99-9678

GASKET-SET
(Superseded to 115-2339)

$

$

Not available

10

Toro 99-9178

GASKET-EXHAUST

$62.99

$

Usually ships in 3-6 days

0

11

Toro 99-9179

GASKET-EXHAUST

$65.99

$

Usually ships in 3-6 days

0

14

Toro 99-9679

KIT-VALVE OVERHAUL
(Superseded to 107-9907)

$

$

Not available

15

Toro 99-9039

SHAFT-GEAR

$

$

Not available
