73551 (523 Dxi) - Toro Garden Tractor (SN: 089000001 - 089999999) (1998) FUEL SYSTEM ASSEMBLY Parts Diagram

Garden Tractor

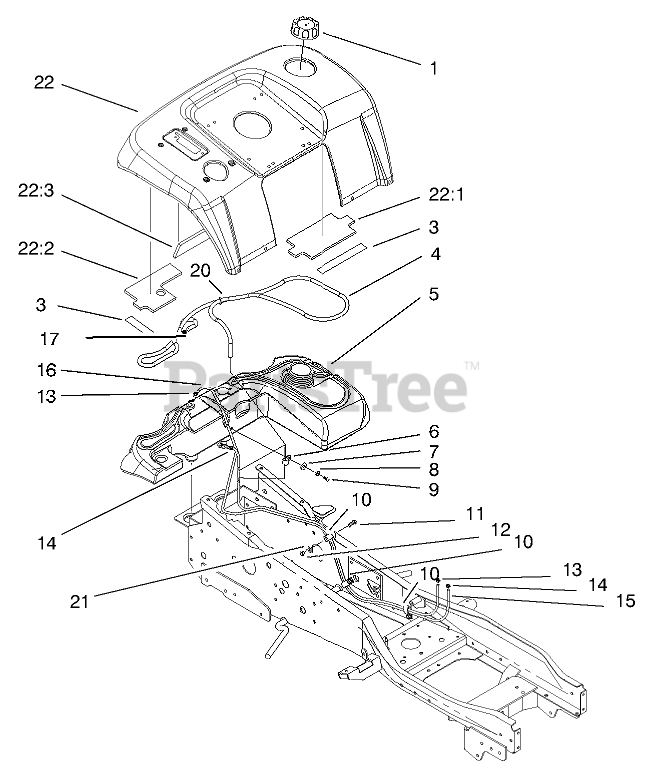

FUEL SYSTEM ASSEMBLY Parts Diagram

  • Title
1

Toro 95-4193

DIESEL FUEL CAP ASM

$46.99

$

Usually ships in 3-6 days

0

3

Tape

$

$

Not available

4

Toro 95-4186

HOSE - VENT (SERVICE)

$

$

Not available

5

Toro 95-4006

Tank-Diesel
(Superseded to 99-6142)

$792.99

$

Usually ships in 3-6 days

0

5:10

Toro 98-7390

Gage

Note: Not illustrated

$

$

Currently unavailable

5:1

Toro 98-3050

FITTING - ORIFICE

Note: Not illustrated

$

$

Not available

5:2

Toro 95-3970

FITTING-90 DEGREE

Note: Not illustrated

$58.99

$

In Stock, only 1 left!

0

5:3

Toro 104047

BUSHING
(Superseded to 46-6560)

Note: Not illustrated

$5.99

$

In Stock, Qty 20+

0

5:4

Toro 99-3717

FITTING: FUEL SHUT-OFF

Note: Not illustrated

$

$

Not available

5:5

Toro 2412-36

CLAMP-HOSE

Note: Not illustrated

$2.49

$

Usually ships in 3-6 days

0

5:6

Toro 95-3971

SENDER - FUEL LEVEL
(Superseded to 107-9234)

Note: Not illustrated

$

$

Not available

5:7

Toro 99-2326

GASKET-FUEL SENDER

Note: Not illustrated

$

$

Not available

5:8

Toro 3250-31

SCREW-PPH

Note: Not illustrated

$0.99

$

Usually ships in 3-6 days

0

5:9

Toro 3253-17

WASHER-LOCK

Note: Not illustrated

$0.99

$

In Stock, Qty 6

0

6

Toro 95-4187

CLAMP-TUBE
(Superseded to 119-8153)

$2.99

$

Usually ships in 3-6 days

0

7

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

9

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 98-1617

CLAMP-TUBE

$

$

Not available

11

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

12

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

13

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

14

Toro 2412-108

CLAMP-WORM

$3.99

$

In Stock, only 1 left!

0

15

Toro 95-4278

HOSE - FUEL
(Superseded to 110-6184)

$63.99

$

Usually ships in 3-6 days

0

16

Toro 741-0556

Hose-.25 Id X .50 Od

$

$

Currently unavailable

16

Toro 95-4280

HOSE - FUEL

$43.99

$

Usually ships in 3-6 days

0

17

Toro 94-8189

CLAMP-HOSE
(Superseded to 2412-146)

$1.99

$

In Stock, Qty 10

0

20

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

21

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 98-7208

REAR BODY ASM

$

$

Not available

22:1

Toro 95-4159

FOAM - TANK LH

$

$

Not available

22:2

Toro 95-4158

FOAM - TANK RH

$

$

Not available

22:3

Toro 95-4157

FOAM-TANK CENTER

$

$

Not available
