73551 (523 Dxi) - Toro Garden Tractor (SN: 089000001 - 089999999) (1998) CRUISE CONTROL ASSEMBLY Parts Diagram

Garden Tractor

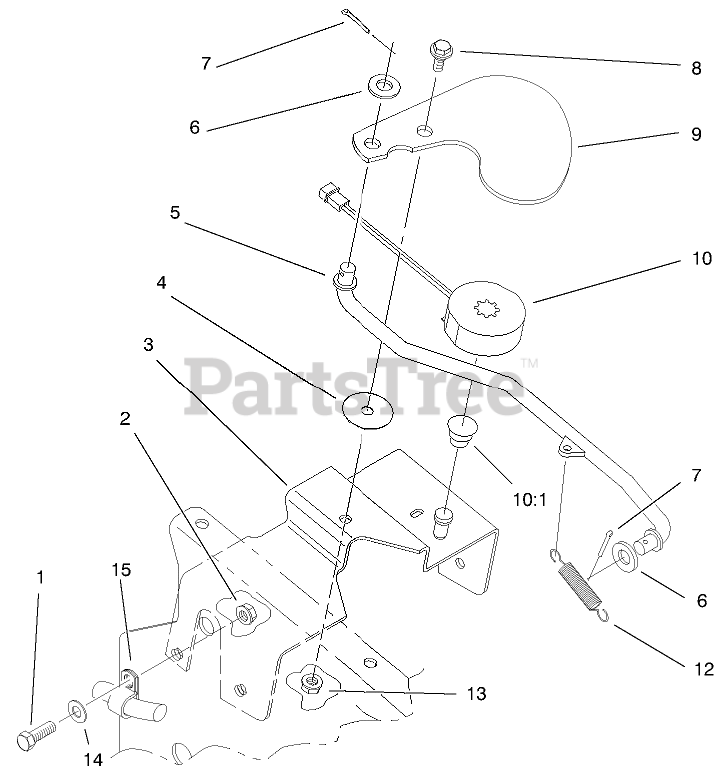

CRUISE CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

2

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 16

0

3

Toro 94-2494-03

WA-CRUISE BRACKET (BLACK)

$

$

Not available

4

Toro 94-7575

SPACER-CRUISE

$

$

Not available

5

Toro 94-7980

ROD-CONTROL, CRUISE

$

$

Not available

6

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

8

Toro 94-7582

BOLT-SHOULDER

$3.49

$

In Stock, only 2 left!

0

9

Toro 94-2158

PLATE - MAGNET

$

$

Not available

10

Toro 93-4366

ASM - MAGNET
(Superseded to 99-8090)

$311.99

$

Usually ships in 3-6 days

0

10:1

Toro 93-6601

SPRING-COMPRESSION

$2.49

$

Usually ships in 3-6 days

0

12

Toro 66-4160

SPRING-SOLENOID, UPPER

$

$

Not available

13

Toro 108881

NUT

$6.49

$

In Stock, only 2 left!

0

14

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 98-2358

CLAMP - R

$

$

Not available
