73550 (523 Dxi) - Toro Garden Tractor (SN: 089000001 - 089999999) (1998) LIQUID COOLED DIESEL ENGINE ASSEMBLY Parts Diagram

Garden Tractor

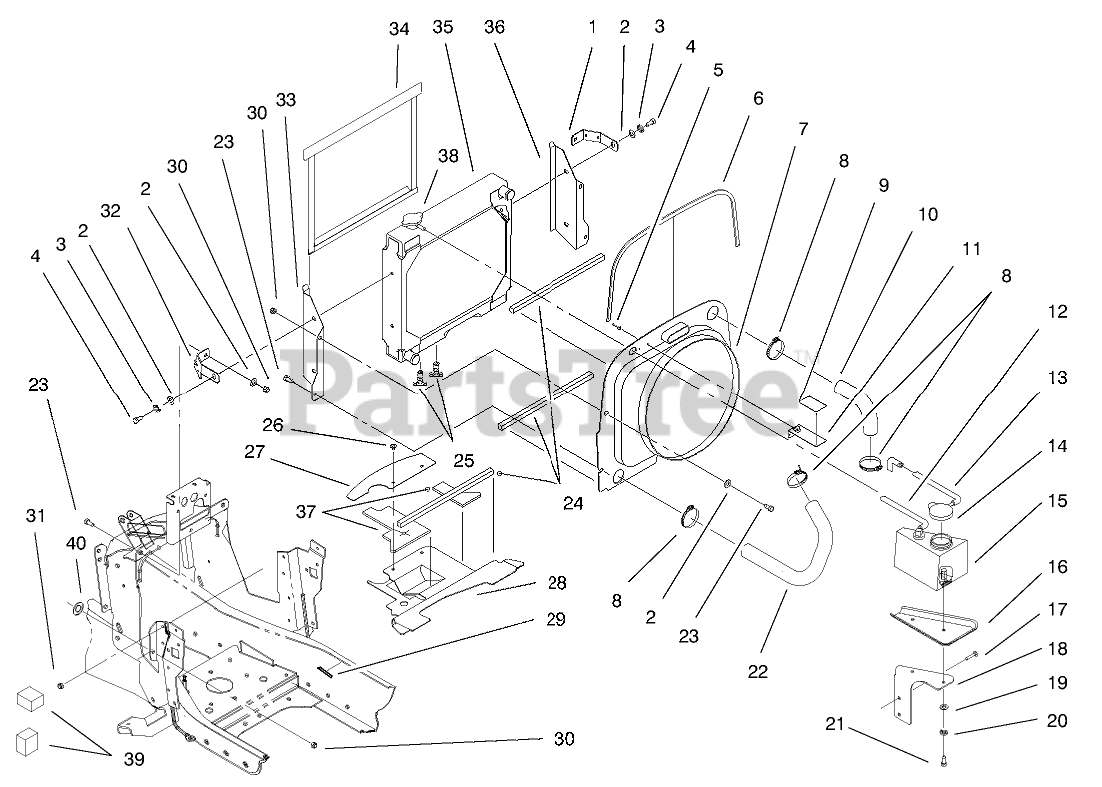

LIQUID COOLED DIESEL ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 94-7644-03

Strap-Radiator
(Superseded to 94-7644)

$

$

Not available

2

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

3

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

4

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

5

Toro 3269-12

RIVET-POP

$

$

Not available

5:1

Toro 93-2195

FILTER
(Superseded to 108-3811)

Note: Not illustrated

$23.99

$

In Stock, Qty 12

0

5:2

Toro 94-3652

COVER ASM

Note: Not illustrated

$96.99

$

In Stock, only 2 left!

0

5:3

Toro 87-9400

VALVE-VACUATOR

Note: Not illustrated

$12.99

$

In Stock, only 4 left!

0

5:4

Toro 285-17

PLUG-PIPE

Note: Not illustrated

$2.99

$

Usually ships in 3-6 days

0

6

Toro 98-7216

TRIM - LOC 31"

$

$

Not available

6

Toro 98-7217

Trim-Loc

$

$

Not available

7

Toro 95-3825

SHROUD - FAN

$384.99

$

Usually ships in 3-6 days

0

8

Toro 2412-34

CLAMP-HOSE

$2.49

$

In Stock, Qty 5

0

9

Toro 95-4143

DECAL - WARNING

$

$

Not available

10

Toro 95-4266

HOSE - RAD. DAIHATSU

$

$

Not available

11

Toro 98-5024

FAN/DECAL ASM

$

$

Not available

12

Toro 62-2470

HOSE - FUEL LINE
(Superseded to 109-0310)

$6.49

$

Usually ships in 3-6 days

0

13

Toro 95-4227

HOSE - OVERFLOW

$15.99

$

Usually ships in 3-6 days

0

14

Toro 95-4191

CAP - COOLANT RESERVOIR
(Superseded to 1-643164)

$19.99

$

In Stock, only 1 left!

0

15

Toro 95-4017

BOTTLE - OVERFLOW

$

$

Not available

16

Toro 98-1600

TRAY - OVERFLOW

$

$

Not available

17

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

18

Toro 95-4080-03

Brkt-Bottle
(Superseded to 95-4080)

$

$

Not available

19

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

21

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 95-4267

HOSE - RAD. DAIHATSU

$

$

Not available

23

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

24

Toro 95-4161

FOAM - RADIATOR/SHROUD

$

$

Not available

25

Toro 95-4142

VALVE - DRAIN

$

$

Not available

26

Toro 95-4237

RIVET - PLASTIC

$

$

Not available

27

Toro 95-4170

BAFFLE - TOWER REAR

$

$

Not available

28

Toro 94-7956

BAFFLE - TOWER

$287.99

$

Usually ships in 3-6 days

0

30

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

31

Toro 3296-8

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

32

Toro 98-3590-03

Bracket-Relay
(Superseded to 98-3590)

$

$

Not available

33

Toro 94-7645-03

Support-Radiator RH
(Superseded to 94-7645)

$

$

Not available

34

Toro 98-1643-03

SCREEN - CHAFF
(Superseded to 98-1643)

$

$

Not available

35

Toro 94-7640

RADIATOR - DIESEL

$

$

Not available

36

Toro 94-7646-03

Support-LH Radiator
(Superseded to 94-7646)

$

$

Not available

37

Toro 98-5026

FOAM - BAFFLE

$

$

Not available

38

Toro 93-5957

CAP-RADIATOR

$20.99

$

In Stock, only 1 left!

0

39

Toro 98-3086

SEAL-FOAM, SIDE

$

$

Not available

40

Toro 51-4230

WASHER-WHEEL

$5.99

$

In Stock, only 1 left!

0
