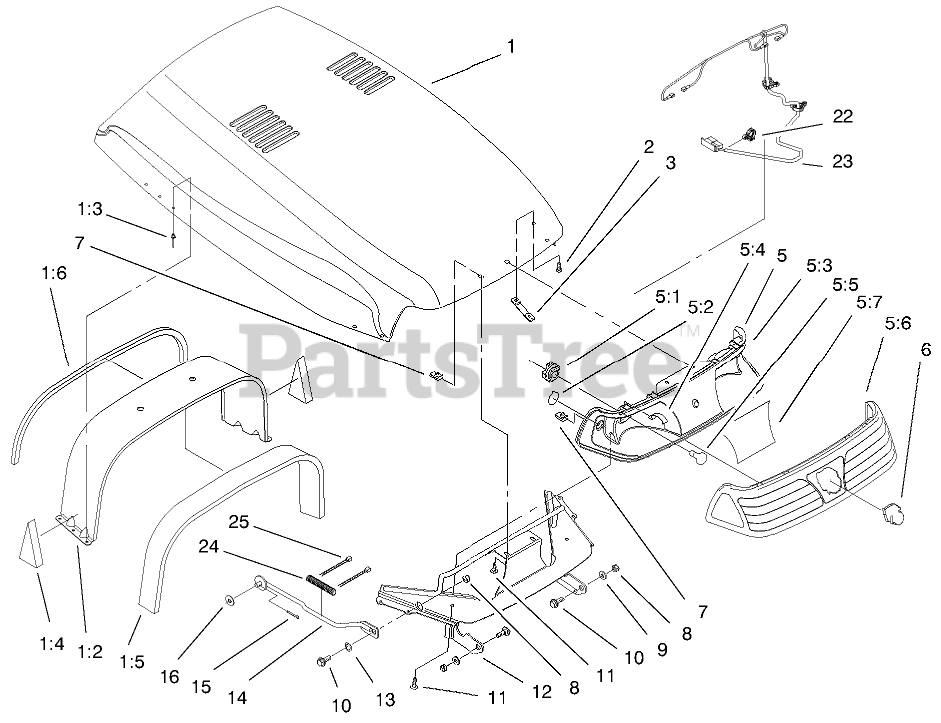

73550 (523 Dxi) - Toro Garden Tractor (SN: 089000001 - 089999999) (1998) HOOD & HEADLIGHT ASSEMBLY Parts Diagram

Garden Tractor

HOOD & HEADLIGHT ASSEMBLY Parts Diagram

  • Title
1

Toro 98-7205

HOOD ASM

$

$

Not available

1:2

Toro 98-7204

ASSEMBLY - REAR BULKHEAD

$

$

Not available

1:3

Toro 3269-12

RIVET-POP

$

$

Not available

1:4

Toro 95-4259

FOAM-BULKHEAD, LOWER

$

$

Not available

1:5

Toro 95-4078

SEAL-FOAM, REAR

$

$

Not available

1:6

Toro 95-4233

FOAM-TAPE

$

$

Not available

2

Toro 3274-31

SCREW-HSBH

$1.49

$

In Stock, only 3 left!

0

3

Toro 95-4197

WA - NUT PLATE

$20.99

$

Usually ships in 3-6 days

0

5

Toro 95-4166

HEADLIGHT ASM

$

$

Not available

5:1

Toro 98-3591

SEALED SOCKET ASM

$

$

Not available

5:2

Toro 98-1602

DECAL-SIDELIGHT

$

$

Not available

5:3

Toro 98-7210

LIGHT REFLECTOR ASM
(Superseded to 95-4166)

$

$

Not available

5:4

Toro 95-4129

CLIP-RETAINER

$4.49

$

Usually ships in 3-6 days

0

5:5

Toro 7228

BULB

$24.99

$

Usually ships in 3-6 days

0

5:6

Toro 94-2099

LENS-HEADLIGHT

$168.99

$

Usually ships in 3-6 days

0

5:7

Toro 98-3597

DECAL-REFLECTOR, HEADLIGHT

$60.99

$

Usually ships in 3-6 days

0

6

Toro 95-4248

EMBLEM

$36.99

$

Usually ships in 3-6 days

0

7

$2.99

$

In Stock, Qty 20+

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

10

Toro 27-0410

SCREW-SHOULDER

$2.99

$

In Stock, Qty 5

0

11

Toro 92-7020

SCREW-HH

$

$

Not available

12

Toro 95-3800-03

WA-FRONT BULKHEAD

$

$

Not available

13

Toro 98-1649

WASHER - SPRING

$

$

Not available

14

Toro 95-4070-03

Hood Support Rod
(Superseded to 95-4070)

$59.99

$

Usually ships in 3-6 days

0

15

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

16

Toro 98-3051

WASHER - PLASTIC

$

$

Not available

22

Toro 98-1810

CLIP - CONVOLUTED

$

$

Not available

23

Toro 95-0691

HARNESS-WIRE, LIGHTS

$

$

Not available

24

Toro 98-3595

SHIELD - SUPPORT ROD

$

$

Not available

25

Toro 614249

TIE-CABLE

$1.49

$

In Stock, only 2 left!

0
