73550 (523 Dxi) - Toro Garden Tractor (SN: 089000001 - 089999999) (1998) BUMPER & HOOD SUPPORT ASSEMBLY Parts Diagram

Garden Tractor

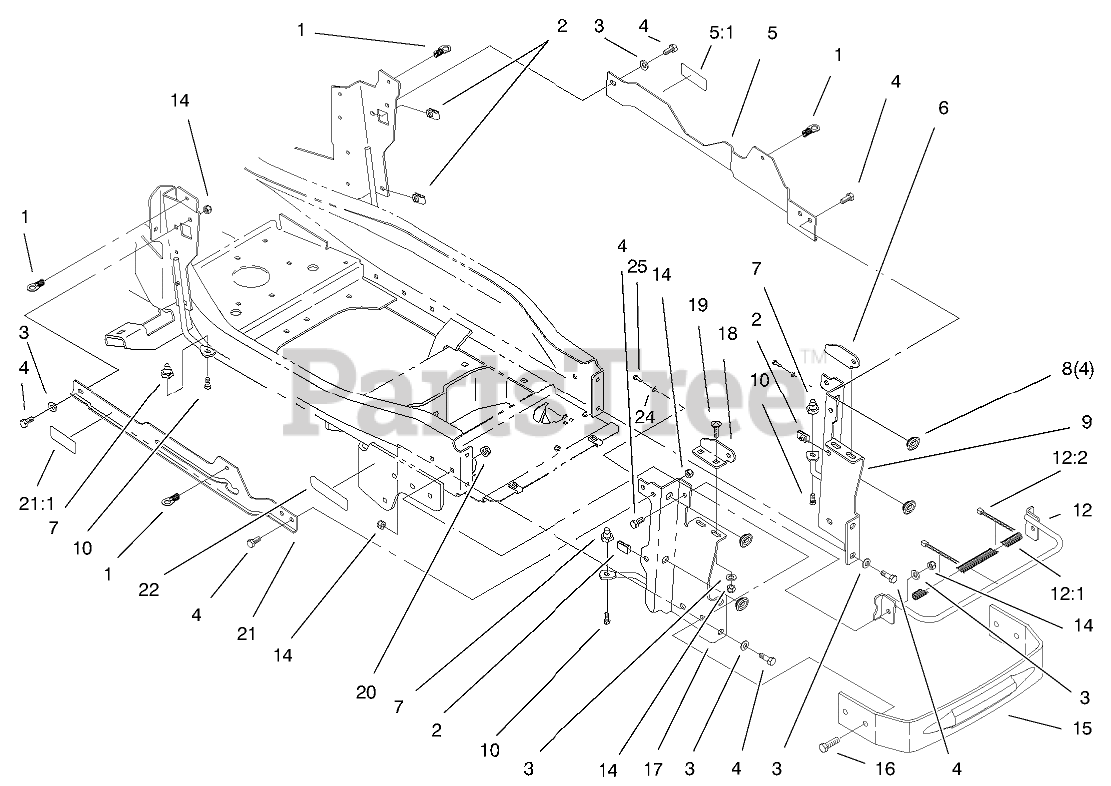

BUMPER & HOOD SUPPORT ASSEMBLY Parts Diagram

  • Title
1

Toro 95-4013

LATCH ASM

$21.99

$

Usually ships in 3-6 days

0

2

$2.99

$

In Stock, Qty 20+

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Toro 98-5064-03

Support ASM (Only On: 73550)
(Superseded to 98-5064)

$

$

Not available

5

Toro 98-5070-03

Support ASM (Only On: 73551)

$

$

Currently unavailable

5:1

Toro 98-5014

Decal-Warning (Only On: 73550)

$5.49

$

Usually ships in 3-6 days

0

5:1

Toro 98-5015

Decal-Warning (Only On: 73551)

$

$

Not available

6

Toro 94-7995-03

BRKT-LOWER HINGE LH (BLACK)

$

$

Not available

7

Toro 95-3989

MOUNT-SIDEPANEL

$

$

Not available

8

Toro 94-7910

GROMMET

$

$

Not available

9

Toro 95-4082-03

SUPPORT-HOOD, LH

$

$

Not available

10

Toro 46-8093

SCREW-PLASTITE

$1.49

$

Usually ships in 3-6 days

0

12

Toro 98-7203

ASSEMBLY - HOOD SUPPORT

$

$

Not available

12:1

Toro 95-4258

COVER-BRACE

$

$

Not available

12:2

Toro 614249

TIE-CABLE

$1.49

$

In Stock, only 2 left!

0

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 94-2308-03

BUMPER-FRAME

$

$

Not available

16

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

17

Toro 95-4081-03

SUPPORT-HOOD, RH

$

$

Not available

18

Toro 94-7994-03

BRKT-LOWER HINGE RH

$

$

Not available

19

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 16

0

20

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

21

Toro 98-5061-03

Support ASM (Only On: 73550)
(Superseded to 98-5061)

$

$

Not available

21

Toro 98-5063-03

Support ASM (Only On: 73551)

$

$

Currently unavailable

21:1

Toro 98-5014

Decal-Warning (Only On: 73550)

$5.49

$

Usually ships in 3-6 days

0

21:1

Toro 98-5015

Decal-Warning (Only On: 73551)

$

$

Not available

22

Toro 92-8747

DECAL-ATTACH A-MATIC

$7.49

$

In Stock, only 1 left!

0

24

Toro 3256-61

Washer-Flat (Only On: 73551)

$2.99

$

In Stock, only 2 left!

0

25

Toro 32144-42

Screw-HH TAP (Only On: 73551)

$1.49

$

Usually ships in 3-6 days

0
