73547 (520 Lxi) - Toro Garden Tractor (SN: 210000001 - 210999999) (2001) OIL PUMP & FILTER ASSEMBLY Parts Diagram

Garden Tractor

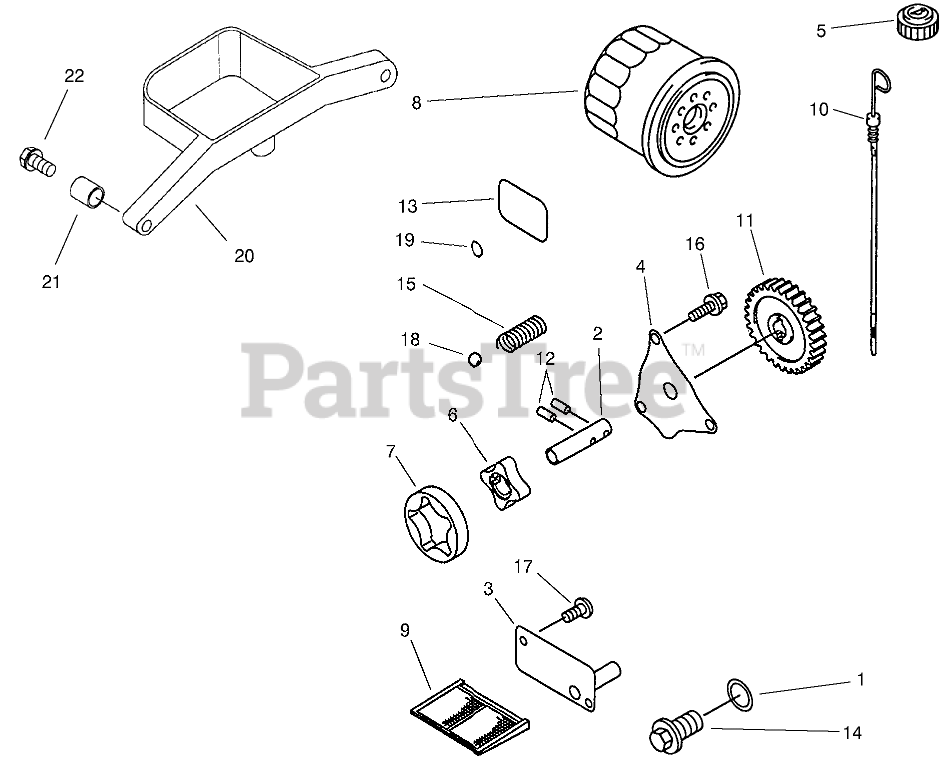

OIL PUMP & FILTER ASSEMBLY Parts Diagram

  • Title
1

Toro 95-9755

GASKET, DRAIN PLUG

$

$

Not available

2

Toro 95-9756

SHAFT, OIL PUMP

$20.99

$

Usually ships in 3-6 days

0

3

Toro 95-9757

PLATE

$61.99

$

Usually ships in 3-6 days

0

4

Toro 95-9758

COVER, OIL PUMP

$

$

Not available

5

Toro 95-9759

CAP OIL FILLER

$29.99

$

Usually ships in 3-6 days

0

6

Toro 95-9760

ROTOR-PUMP (IN)

$

$

Not available

7

Toro 95-9761

ROTOR PUMP, OUT

$

$

Not available

8

Toro KW10761

FILTER-OIL
(Superseded to 49065-0724)

$18.99

$

In Stock, Qty 20+

0

9

Toro 95-9762

FILTER-OIL

$

$

Not available

10

Toro 98-7371

GAUGE - OIL

$

$

Not available

11

Toro 95-9764

GEAR SPUR

$

$

Not available

12

$

$

Not available

13

Toro 95-9766

O-RING

$

$

Not available

14

Toro 95-9767

PLUG, DRAIN

$

$

Not available

15

Toro 95-9768

SPRING

$

$

Not available

16

Toro 93-8566

BOLT-FLANGED

$

$

Not available

17

Toro 95-9769

SCREW-PAN

$

$

Not available

18

Toro 95-9770

BALL-STEEL

$

$

Not available

19

Toro 95-9771

O-RING (11mm)

$2.99

$

Usually ships in 3-6 days

0

20

Toro 98-7370

RECEIVER - OIL

$

$

Not available

21

Toro 98-7372

COLLAR

$

$

Not available

22

Toro KW10513

BOLT (8 X 20)

$

$

Not available
