73547 (520 Lxi) - Toro Garden Tractor (SN: 200000001 - 200000241) (2000) WATER PUMP ASSEMBLY Parts Diagram

Garden Tractor

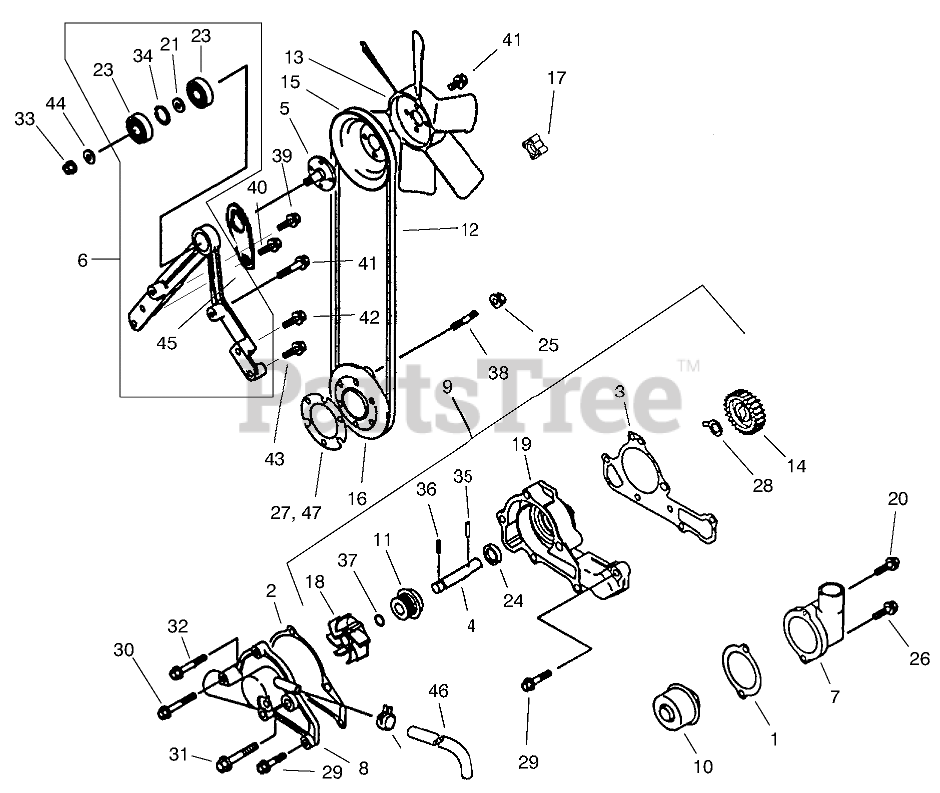

WATER PUMP ASSEMBLY Parts Diagram

  • Title
1

Toro 95-9772

GASKET,THERMOSTAT COVER

$

$

Not available

2

Toro 99-8555

GASKET,PUMP COVER

$

$

Not available

3

Toro 99-8556

GASKET,PUMP CASE

$

$

Not available

4

Toro 95-9776

SHAFT, IMPELLER

$

$

Not available

5

Toro 95-9777

SHAFT, PULLEY

$191.99

$

Usually ships in 3-6 days

0

6

Toro 95-9778

Housing-ASM

$

$

Not available

7

Toro 95-9779

COVER, THERMOSTAT

$

$

Not available

8

Toro 95-9780

COVER, PUMP

$

$

Not available

9

Toro 95-9781

PUMP-WATER

$

$

Not available

10

Toro 95-9782

THERMOSTAT

$

$

Not available

11

Toro 95-9783

SEAL-MECHNICAL

$

$

Not available

12

Toro 95-9784

BELT-FAN

$

$

Not available

13

Toro 95-9785

FAN-COOLING

$127.99

$

Usually ships in 3-6 days

0

14

Toro 95-9786

GEAR - SPUR

$15.99

$

Usually ships in 3-6 days

0

15

Toro 95-9787

PULLEY

$

$

Not available

16

Toro 95-9788

PULLEY

$

$

Not available

17

Toro 95-9789

SPACER-FAN

$27.99

$

Usually ships in 3-6 days

0

18

Toro 95-9791

IMPELLER

$

$

Not available

19

Toro 95-9792

CASE-PUMP

$

$

Not available

20

$

$

Not available

21

Toro 95-9795

SPACER,12X18X1.4

$

$

Not available

22

Toro 95-9796

CLAMP

$2.49

$

Usually ships in 3-6 days

0

23

Toro 95-9797

BEARING-BALL

$

$

Not available

24

Toro 95-9798

SEAL-OIL

$

$

Not available

25

$

$

Not available

26

$

$

Not available

27

$

$

Not available

28

Toro 95-9803

WASHER
(Superseded to 94-6696-03)

$10.99

$

Usually ships in 3-6 days

0

29

Toro 99-8557

BOLT - FLANGED

$

$

Not available

30

Toro 99-8558

BOLT - FLANGED

$

$

Not available

31

Toro 99-8559

BOLT - FLANGED

$

$

Not available

32

Toro 99-8560

BOLT - FLANGED

$

$

Not available

33

Toro 95-9808

NUT - HEX, FINE

$

$

Not available

34

Toro 95-9809

CIRCLIP

$

$

Not available

35

$

$

Not available

36

Toro 95-9810

PIN - DOWEL

$

$

Not available

37

Toro 95-9812

O-RING

$

$

Not available

38

$

$

Not available

39

Toro KW10513

BOLT (8 X 20)

$

$

Not available

40

Toro KW10031

BOLT-FLANGED (8X30)

$1.99

$

Usually ships in 3-6 days

0

41

Toro KW10030

Bolt 6x35

$

$

Not available

42

Toro KW10516

BOLT (8 X 40)

$1.99

$

Usually ships in 3-6 days

0

43

Toro KW10035

BOLT-FLANGED

$

$

Not available

44

Toro 93-8668

WASHER-PLAIN (10MM)

$0.99

$

Usually ships in 3-6 days

0

45

Toro 98-7394

BRACKET

$

$

Not available

46

Toro 98-7373

HOSE - COOLANT

$26.99

$

Usually ships in 3-6 days

0

47

$

$

Not available
