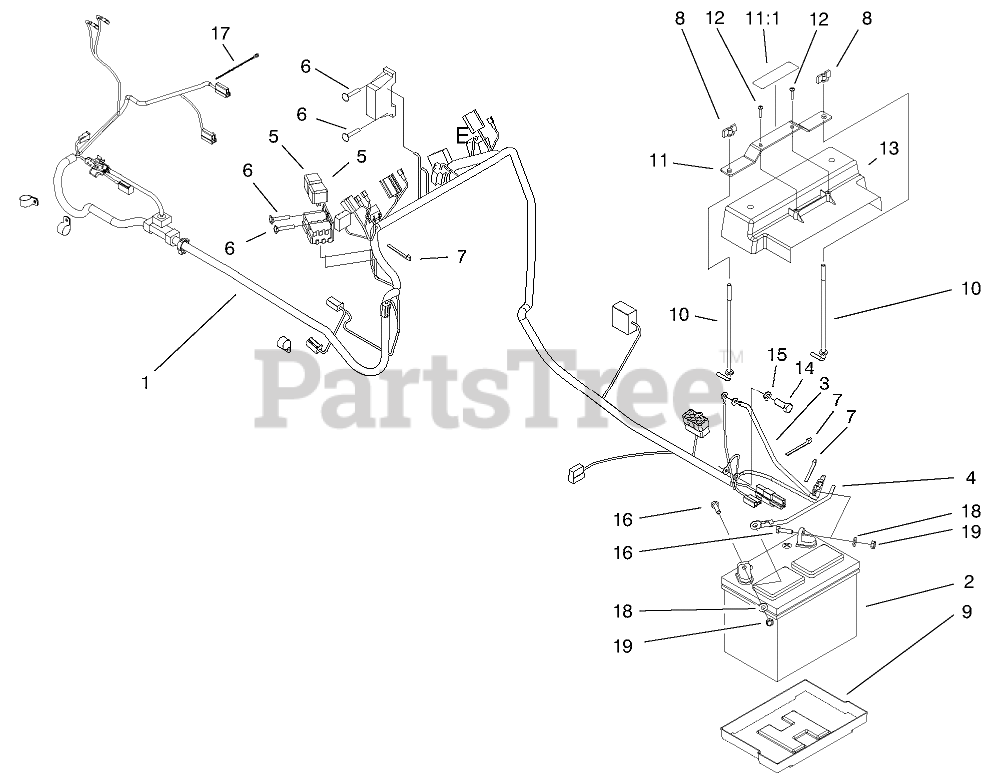

73547 (520 Lxi) - Toro Garden Tractor (SN: 200000001 - 200000241) (2000) 20 HP ELECTRICAL ASSEMBLY Parts Diagram

Garden Tractor

20 HP ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 99-3724

HARNESS-MAIN

$

$

Not available

2

Toro 94-1867

BATTERY
(Superseded to 104-2492)

$

$

Not available

3

Toro 95-7855

CABLE-BATTERY

$

$

Not available

4

Toro 98-5011

ASSY-WIRE

$

$

Not available

5

Toro 98-7249

Relay-Spdt (Only On: 73547)

$22.99

$

In Stock, Qty 12

0

6

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

7

Toro 614249

TIE-CABLE

$1.49

$

In Stock, only 2 left!

0

8

Toro 32103-22

NUT-WING

$2.99

$

In Stock, Qty 17

0

9

Toro 106948

TRAY-BATTERY

$11.99

$

In Stock, only 2 left!

0

10

Toro 95-4042

HOOK-RETAIN, BATTERY

$

$

Not available

11

Toro 98-5056

STRAP ASM

$

$

Not available

11:1

Toro 93-1265

DECAL-SURFACE, HOT

$8.49

$

Usually ships in 3-6 days

0

12

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

13

Toro 95-4044

Shield-Battery (Only On: 73547)

$

$

Not available

13

Toro 95-4092

Shield-Battery (Int-l)(Only On: 73580)

$37.99

$

Usually ships in 3-6 days

0

14

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

15

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

16

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Toro 98-5072

TIE-CABLE

$

$

Not available

18

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

99

Toro 109102

FUSE-BLADE, 25 AMP

$5.99

$

In Stock, Qty 17

0

99

Toro 218-578

FUSE-BLADE, 10 AMP

$2.99

$

In Stock, Qty 6

0

99

Toro NN10277

FUSE-30 AMP

$9.99

$

Usually ships in 3-6 days

0
