73547 (520 Lxi) - Toro Garden Tractor (SN: 099000001 - 099999999) (1999) PISTON & CRANKSHAFT ASSEMBLY Parts Diagram

Garden Tractor

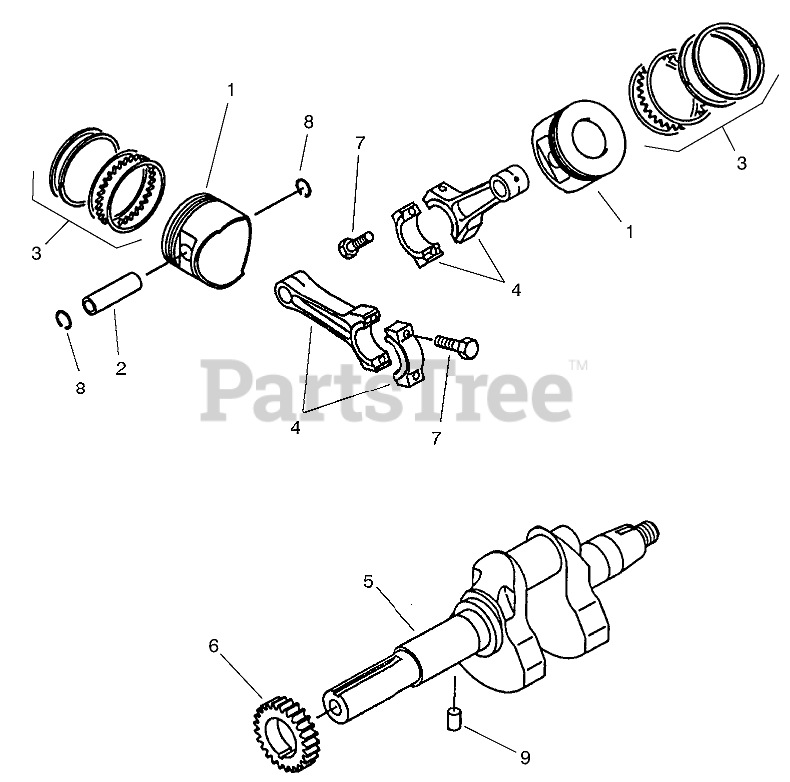

PISTON & CRANKSHAFT ASSEMBLY Parts Diagram

  • Title
1

Toro 95-6331

PISTON - ENGINE L,.25 O/S

$169.99

$

Usually ships in 3-6 days

0

1

Toro 95-6332

PISTON - ENGINE L,.50 O/S

$

$

Not available

1

Toro 95-9727

PISTON-ENGINE

$203.99

$

Usually ships in 3-6 days

0

2

Toro 95-9728

PIN-PISTON

$

$

Not available

3

Toro 95-6333

RING SET-PISTON L,.25 O/S

$

$

Not available

3

Toro 95-6334

RING SET-PISTON L,.50 O/S

$

$

Not available

3

Toro 95-9729

RING SET-PISTON

$

$

Not available

4

Toro 95-6335

ROD ASM-CONNECTING,.5 U/S

$154.99

$

Usually ships in 3-6 days

0

4

Toro 95-9734

ROD-ASM CONNECTING

$

$

Not available

5

Toro 95-9736

CRANKSHAFT ASM

$1228.99

$

Usually ships in 3-6 days

0

6

Toro 95-9737

GEAR-SPUR

$130.99

$

Usually ships in 3-6 days

0

7

$

$

Not available

8

Toro 95-9739

RING SNAP

$

$

Not available

9

Toro 95-9740

PIN-DOWEL

$

$

Not available
