73546 (520 Lxi) - Toro Garden Tractor (SN: 089000001 - 089999999) (1998) LIQUID COOLED GAS ENGINE ASSEMBLY Parts Diagram

Garden Tractor

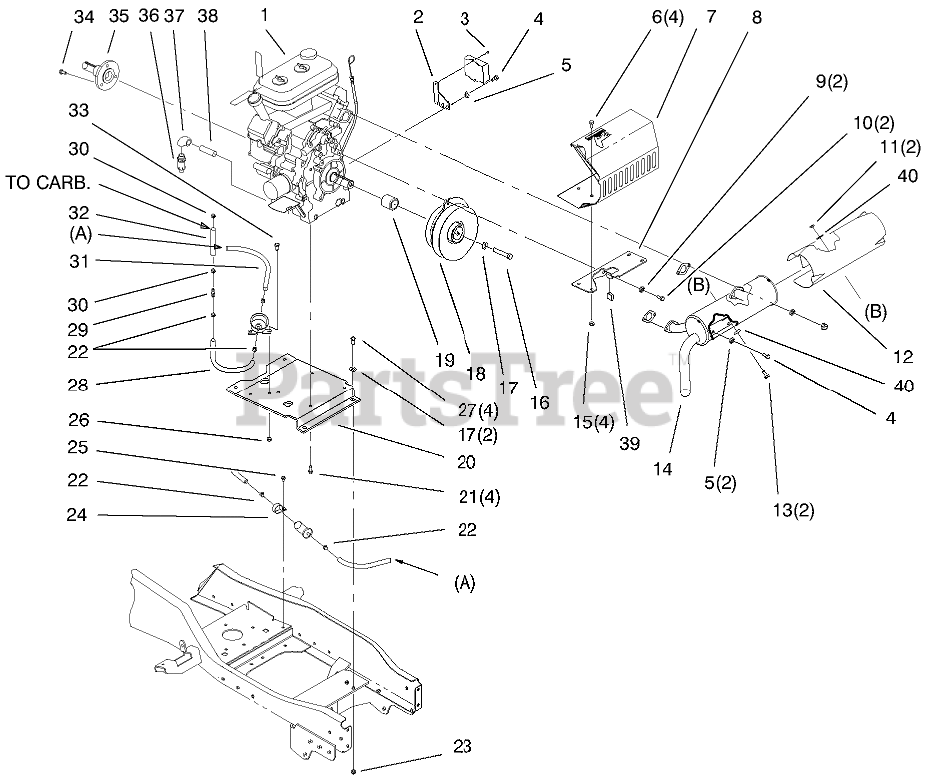

LIQUID COOLED GAS ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 98-8063

Engine ASM

$

$

Not available

2

Toro 95-4063-03

BRKT-MOD KAWASAKI B

$

$

Not available

3

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

4

Toro 33114-016

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

5

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

6

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

7

Toro 94-7523-03

SHROUD-MUFFLER

$

$

Not available

8

Toro 94-7631-03

Support-Muffler
(Superseded to 94-7631)

$

$

Not available

9

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 17

0

10

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

11

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 6

0

12

Toro 95-3990

REFLECTOR - HEAT (KAW)

$508.99

$

Usually ships in 3-6 days

0

13

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 94-7557

MUFFLER - KAWASKI

$795.99

$

Usually ships in 3-6 days

0

15

Toro 32153-3

NUT-HEX, SIDE DEFORM

$6.49

$

Usually ships in 3-6 days

0

16

Toro 94-7974

CAPSCREW

$

$

Not available

17

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

18

Toro 94-2190

CLUTCH-PTO

$843.99

$

Usually ships in 3-6 days

0

19

Toro 94-2068

SPACER-CLUTCH

$

$

Not available

20

Toro 94-7848-03

Plate-Eng
(Superseded to 94-7848)

$

$

Not available

21

Toro 95-4184

SCREW-HHF
(Superseded to 139-3392)

$2.99

$

Usually ships in 3-6 days

0

22

Toro 95-4271

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

23

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

24

Toro 2412-104

CLAMP-R

$6.99

$

Usually ships in 3-6 days

0

25

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

26

Toro 3296-8

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

27

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

28

Toro 95-4276

HOSE-FUEL
(Superseded to 110-4101)

$20.99

$

Usually ships in 3-6 days

0

29

Toro 95-4061

FITTING - BARBED ADAPTER
(Superseded to 103-2595)

$6.49

$

Usually ships in 3-6 days

0

30

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

31

Toro 95-4275

HOSE-FUEL
(Superseded to 110-4107)

$10.99

$

Usually ships in 3-6 days

0

32

Toro 95-4277

HOSE - FUEL
(Superseded to 110-4107)

$10.99

$

Usually ships in 3-6 days

0

33

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

34

Toro 95-4232

SCREW-THREADLOCKING

$

$

Not available

35

Toro 94-2066

HUB - DRIVE

$

$

Not available

36

Toro 92-6877

VALVE-DRAIN, OIL

$41.99

$

In Stock, only 1 left!

0

37

Toro 2811-16

ELBOW-90 DEGEE

$

$

Not available

38

Toro 289-51

NIPPLE

$

$

Not available

39

Toro 98-5023

BUMPER

$8.49

$

Usually ships in 3-6 days

0

40

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
