73542 (520 xi) - Toro Garden Tractor (SN: 230000001 - 230999999) (2003) MANUAL STEERING LOWER ASSEMBLY Parts Diagram

Garden Tractor

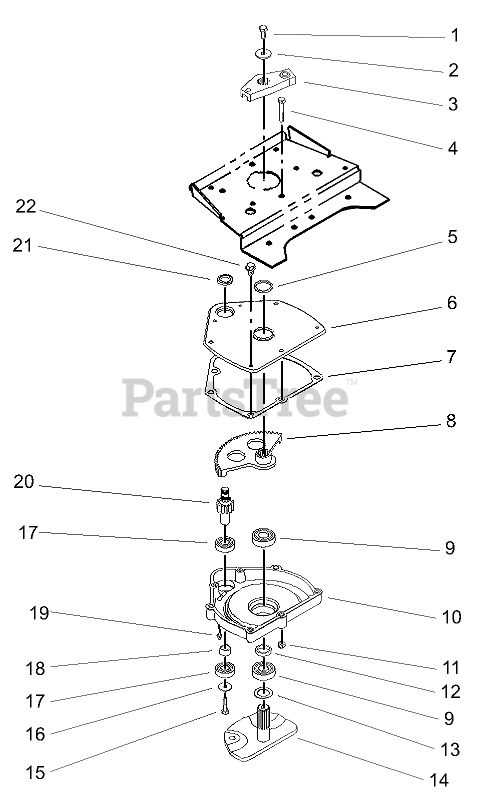

MANUAL STEERING LOWER ASSEMBLY Parts Diagram

  • Title

1

Toro 98-3052

SCREW-LOCKING, THREAD

$1.99

$

Usually ships in 3-6 days

0

2

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0

3

Toro 94-2140

ARM - MECH STRG UPPER

$86.99

$

Usually ships in 3-6 days

0

4

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Toro 103118

SEAL

$21.99

$

In Stock, only 2 left!

0

6

Toro 94-2134-03

Cover

$

$

Not available

7

Toro 94-2135

GASKET

$9.49

$

Usually ships in 3-6 days

0

8

Toro 94-2137

GEAR-SECTOR

$

$

Not available

9

Toro 251-82

BEARING-BALL

$20.99

$

In Stock, Qty 6

0

10

Toro 94-2133

HSG - MANUAL STRG

$

$

Not available

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 94-2218

SPACER-SHAFT, OUTPUT

$12.99

$

Usually ships in 3-6 days

0

13

Toro 3256-42

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

14

Toro 94-2142-03

SHAFT-SECTOR

$249.99

$

Usually ships in 3-6 days

0

15

Toro 98-3498

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

16

Toro 3256-82

WASHER-FLAT

$0.99

$

In Stock, Qty 7

0

17

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 20+

0

18

Toro 94-2217

SPACER-SHAFT, INPUT

$10.99

$

Usually ships in 3-6 days

0

19

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

20

Toro 94-2136

PINION - INPUT SHAFT

$

$

Not available

21

Toro 94-7856

SEAL - OIL

$

$

Not available

22

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 15

0
