73542 (520 xi) - Toro Garden Tractor (SN: 230000001 - 230999999) (2003) GROUP 4-HEAD/VALVE/BREATHER ASSEMBLY Parts Diagram

Garden Tractor

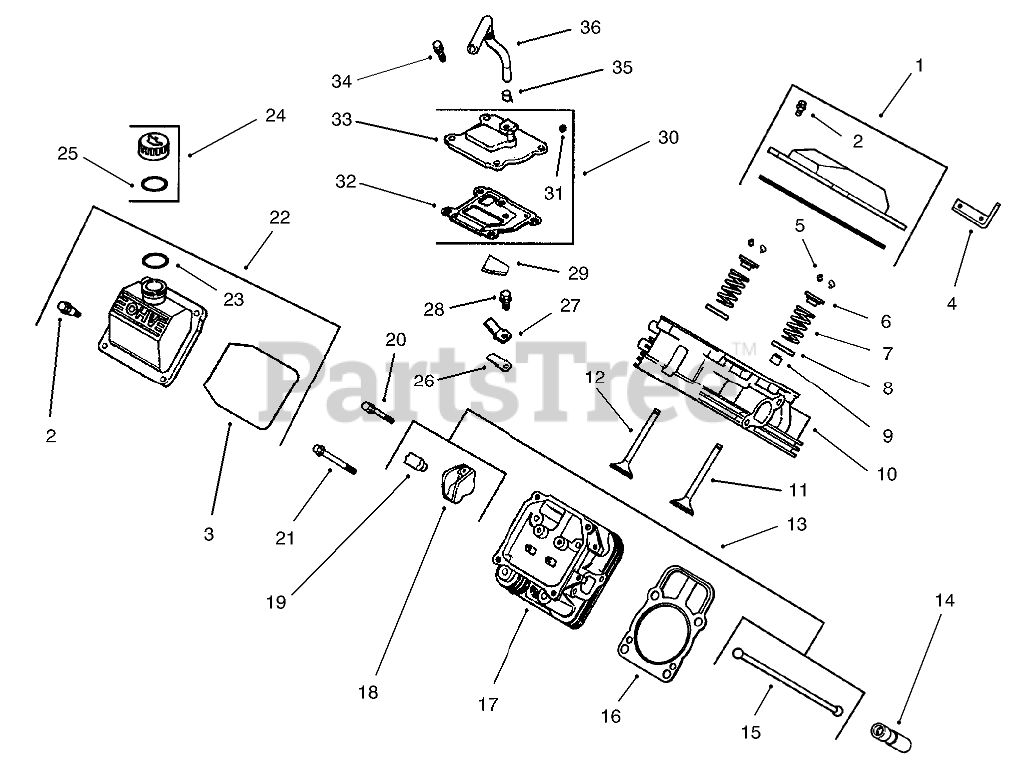

GROUP 4-HEAD/VALVE/BREATHER ASSEMBLY Parts Diagram

  • Title

1

Kohler 24 755 74

Kit, valve cover-plain (Includes 2-3)
(Superseded to 24 755 74-S)

Note: Used in Groundsmaster 4000 Series

$35.99

$

In Stock, only 2 left!

0

2

2408632

Screw

Note: Used in Groundsmaster 4000 Series

$

$

Not available

3

Kohler 24 153 16

O-Ring
(Superseded to 24 153 16-S)

Note: Used in Groundsmaster 4000 Series

$18.99

$

In Stock, only 1 left!

0

4

2444501

Strap-Lifting

Note: Used in Groundsmaster 4000 Series

$

$

Not available

5

Kohler 12 755 03

Retainer Kit
(Superseded to 12 755 03-S)

Note: Used in Groundsmaster 4000 Series

$5.99

$

In Stock, only 2 left!

0

6

Kohler 12 173 01

Cap-Spring, Valve
(Superseded to 25 173 28-S)

Note: Used in Groundsmaster 4000 Series

$8.49

$

In Stock, Qty 5

0

7

Kohler 24 089 02

Spring-Valve
(Superseded to 24 089 02-S)

Note: Used in Groundsmaster 4000 Series

$7.99

$

In Stock, only 2 left!

0

8

Kohler 235011

Retainer-Spring
(Superseded to 235011-S)

Note: Used in Groundsmaster 4000 Series

$6.49

$

In Stock, only 2 left!

0

9

Kohler 24 032 05

Seal-Stem, Valve
(Superseded to 24 032 05-S)

Note: Used in Groundsmaster 4000 Series

$11.99

$

In Stock, Qty 8

0

10

2431809

Head Asm-#1 Cylinder

Note: Used in Groundsmaster 4000 Series

$

$

Not available

11

Kohler 24 017 01

Valve-Intake
(Superseded to 24 017 01-S)

Note: Used in Groundsmaster 4000 Series

$30.99

$

In Stock, Qty 17

0

Kohler 24 017 02

Valve-Intake (.25)
(Superseded to 24 017 02-S)

Note: Used in Groundsmaster 4000 Series

$

$

Not available

12

Kohler 24 016 01

Valve-Exhaust
(Superseded to 24 016 01-S)

Note: Used in Groundsmaster 4000 Series

$15.99

$

In Stock, only 4 left!

0

Kohler 24 016 02

Valve-Exhaust (.25)
(Superseded to 32 016 02-S)

Note: Used in Groundsmaster 4000 Series

$15.99

$

In Stock, only 3 left!

0

13

Kohler 24 755 66

Kit, valve train (Includes 15,18,19)
(Superseded to 24 755 66-S)

Note: Used in Groundsmaster 4000 Series

$45.99

$

In Stock, only 3 left!

0

14

1235102

Lifter-Valve

Note: Used in Groundsmaster 4000 Series

$

$

Not available

15

Kohler 24 411 05

Rod-Push
(Superseded to 24 411 05-S)

Note: Used in Groundsmaster 4000 Series

$5.49

$

In Stock, Qty 9

0

16

2404108

Gasket-Cylinder Head

Note: Used in Groundsmaster 4000 Series

$

$

Not available

17

2431810

Head Asm-#2 cylinder

Note: Used in Groundsmaster 4000 Series

$

$

Not available

18

Kohler 25 186 01

Arm-Rocker
(Superseded to 25 186 01-S)

Note: Used in Groundsmaster 4000 Series

$12.99

$

In Stock, only 2 left!

0

19

Kohler 24 599 01

Pivot-Arm, Rocker
(Superseded to 24 599 02-S)

Note: Used in Groundsmaster 4000 Series

$2.49

$

In Stock, Qty 8

0

20

Kohler M-0640034

Screw

Note: Used in Groundsmaster 4000 Series

$

$

Not available

21

1208616

Screw

Note: Used in Groundsmaster 4000 Series

$

$

Not available

22

2475575

Kit, valve cover-oil fill (Includes 2,3,23)

Note: Used in Groundsmaster 4000 Series

$

$

Not available

23

Kohler 24 153 09

O-Ring
(Superseded to 24 153 32-S)

Note: Used in Groundsmaster 4000 Series

$2.49

$

In Stock, only 4 left!

0

24

2575513

Kit, oil fill cap (Includes 25)

Note: Used in Groundsmaster 4000 Series

$

$

Not available

25

1215303

"O"Ring

Note: Used in Groundsmaster 4000 Series

$

$

Not available

26

Kohler 24 402 03

Reed
(Superseded to 24 402 03-S)

Note: Used in Groundsmaster 4000 Series

$3.49

$

In Stock, Qty 7

0

27

Kohler 12 018 01

Retainer-Reed
(Superseded to 66 018 04-S)

Note: Used in Groundsmaster 4000 Series

$4.99

$

In Stock, Qty 6

0

28

Kohler M-0545010

Screw
(Superseded to M-545010)

Note: Used in Groundsmaster 4000 Series

$4.49

$

In Stock, only 2 left!

0

29

Kohler 24 050 01

Filter-Breather
(Superseded to 24 050 01-S)

Note: Used in Groundsmaster 4000 Series

$2.49

$

Usually ships in 2-5 days

0

30

Kohler 24 033 01

Kit, breather (Includes 31-33)
(Superseded to 24 033 01-S)

Note: Used in Groundsmaster 4000 Series

$31.99

$

In Stock, only 2 left!

0

31

Kohler X-75-23

Plug
(Superseded to X-75-23-S)

Note: Used in Groundsmaster 4000 Series

$3.49

$

In Stock, only 2 left!

0

32

Kohler 24 041 23

Gasket-Breather
(Superseded to 24 041 23-S)

Note: Used in Groundsmaster 4000 Series

$13.99

$

In Stock, Qty 9

0

33

2409602

Cover-Breather

Note: Used in Groundsmaster 4000 Series

$

$

Not available

34

Kohler M-0645020

Screw
(Superseded to M-645020)

Note: Used in Groundsmaster 4000 Series

$2.49

$

In Stock, only 1 left!

0

35

Kohler X-426-9

Clamp
(Superseded to X-426-9-S)

Note: Used in Groundsmaster 4000 Series

$4.99

$

In Stock, only 3 left!

0

36

2432606

Hose-Breather

Note: Used in Groundsmaster 4000 Series

$

$

Not available
