73542 (520 xi) - Toro Garden Tractor (SN: 200000001 - 200999999) (2000) CRUISE CONTROL ASSEMBLY Parts Diagram

Garden Tractor

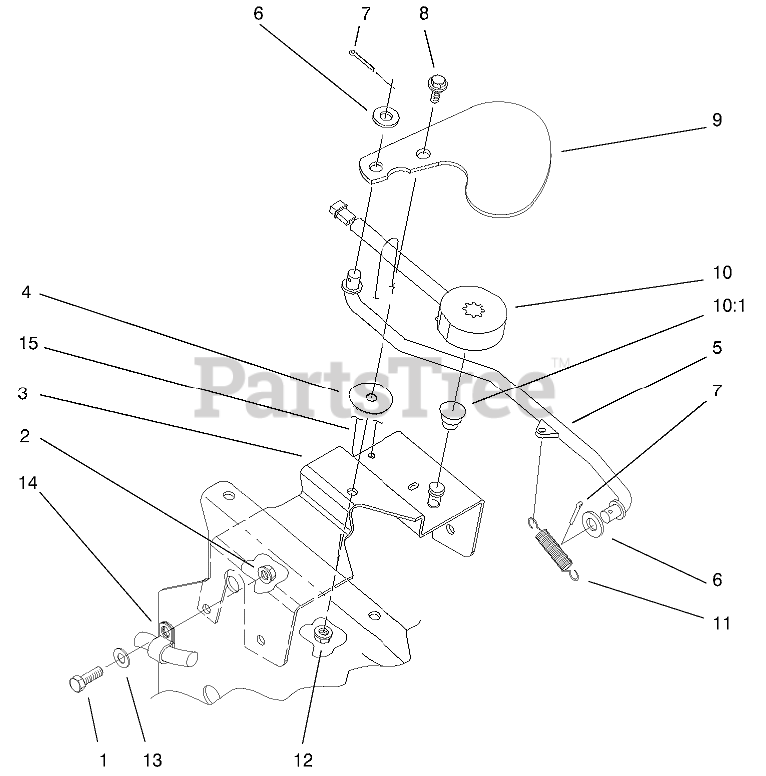

CRUISE CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 323-7

Screw-HH (only on: 73542, 73570)

$2.99

$

In Stock, Qty 20+

0

2

Toro 3296-39

Nut-Lock, NI (only on: 73542, 73570)

$2.99

$

In Stock, Qty 8

0

3

Toro 99-6097-03

Brkt-Cruise (only on: 73542, 73570)

$96.99

$

Usually ships in 3-6 days

0

4

Toro 94-7575

Spacer-Cruise (only on: 73542, 73570)

$

$

Not available

5

Toro 94-7980

Wa-Cruise Control Rod (only on: 73542, 73570)

$

$

Not available

6

Toro 3256-26

Washer-Flat (only on: 73542, 73570)

$0.99

$

In Stock, Qty 20+

0

7

Toro 3272-10

Pin-Cotter (only on: 73542, 73570)

$1.49

$

In Stock, Qty 14

0

8

Toro 94-7582

Bolt-Shoulder (only on: 73542, 73570)

$3.49

$

In Stock, only 2 left!

0

9

Toro 99-5309

Plate-Magnet (only on: 73542, 73570)

$

$

Not available

10

Toro 99-8090

Magnet ASM (only on: 73542, 73570)

$311.99

$

Usually ships in 3-6 days

0

10:1

Toro 93-6601

Spring-Compression (only on: 73542, 73570)

$2.49

$

Usually ships in 3-6 days

0

11

Toro 66-4160

Spring-Upper Solenoid (only on: 73542, 73570)

$

$

Not available

12

Toro 108881

NUT

$6.49

$

In Stock, only 2 left!

0

13

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 12

0

14

Toro 98-2358

CLAMP - R

$

$

Not available

15

Toro 614249

Tie Strap (only on: 73542, 73570)

$1.49

$

In Stock, Qty 6

0
