73542 (520 xi) - Toro Garden Tractor (SN: 099000001 - 099999999) (1999) STEERING TOWER & FUEL TANK SUPPORT ASSEMBLY Parts Diagram

Garden Tractor

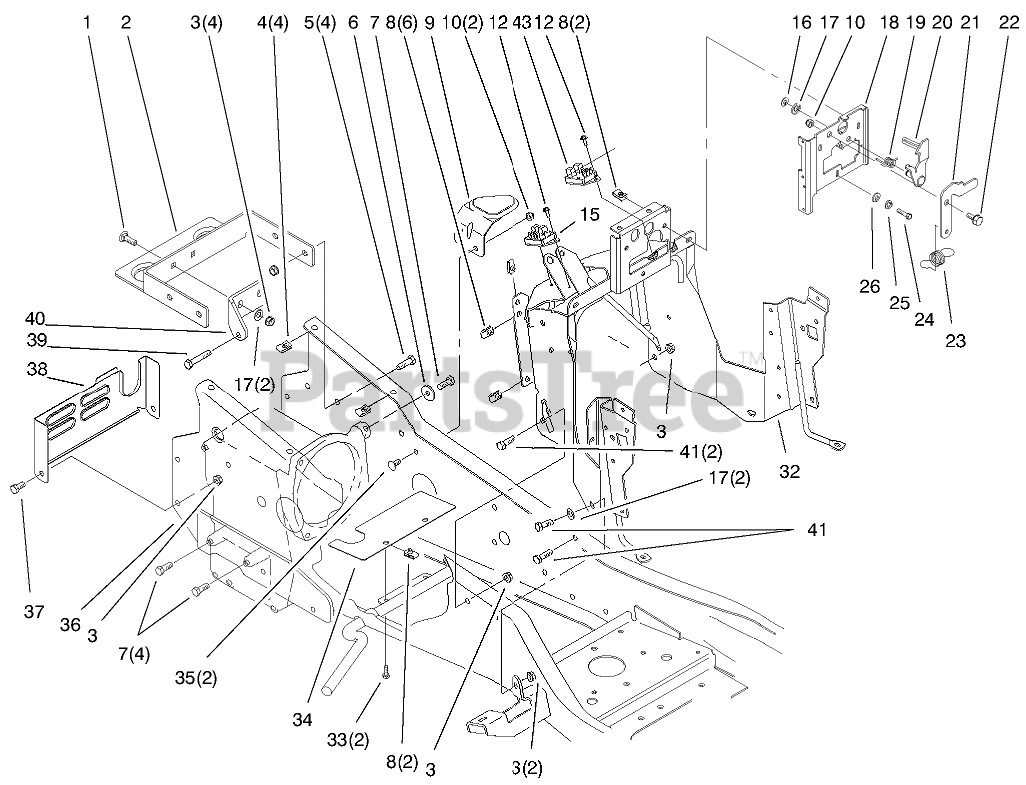

STEERING TOWER & FUEL TANK SUPPORT ASSEMBLY Parts Diagram

  • Title
1

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 14

0

2

Toro 94-7740-03

Support-Gas Tank

$

$

Not available

3

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

4

Toro 94-2413

NUT-U

$2.99

$

In Stock, Qty 20+

0

5

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

6

Toro 2844

WASHER

$2.99

$

In Stock, Qty 17

0

7

Toro 3235-22

SCREW-HH, LOCK

$2.99

$

In Stock, only 2 left!

0

8

$2.99

$

In Stock, Qty 20+

0

9

Toro 95-3961-03

SUPPORT-TANK, FUEL

$

$

Not available

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 12-5450

Screw-Special Vex (Only On: 73542, 73570)

$9.99

$

In Stock, only 2 left!

0

15

Toro 99-3703

Module-Cruise (Only On: 73542, 73570)

$164.99

$

Usually ships in 3-6 days

0

16

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 20+

0

17

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 12

0

18

Toro 95-3892-03

BRACKET-LATCH

$

$

Not available

19

Toro 95-4165

SPRING-LEVER, LATCH

$

$

Not available

20

Toro 95-3899

LEVER-LATCH

$

$

Not available

21

Toro 95-3900

LATCH-LEVER, TENSION

$

$

Not available

22

Toro 37-8771

BOLT-SHOULDER

$5.49

$

In Stock, only 3 left!

0

23

Toro 95-3895

SPRING-LEVER, LATCH

$

$

Not available

24

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

25

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

26

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

32

Toro 99-4441-03

TOWER ASM

$

$

Not available

33

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

34

Toro 95-4246

BAFFLE-FAN

$

$

Not available

35

Toro 3230-20

SCREW-CARR
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

36

$1731.99

$

Usually ships in 3-6 days

0

37

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

38

Toro 95-4005-03

COVER-REAR

$

$

Not available

39

Toro 94-7972

SCREW-HH W/LOCTITE

$5.49

$

In Stock, only 3 left!

0

40

Toro 94-7739-03

Strap-Torque

$

$

Not available

41

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

43

Toro 99-3701

MODULE-CLUTCH

$148.99

$

Usually ships in 3-6 days

0
