73540 (520 xi) - Toro Garden Tractor (SN: 089000001 - 089999999) (1998) GROUP 7-STARTING SYSTEM (MODEL 73470 ONLY) Parts Diagram

Garden Tractor

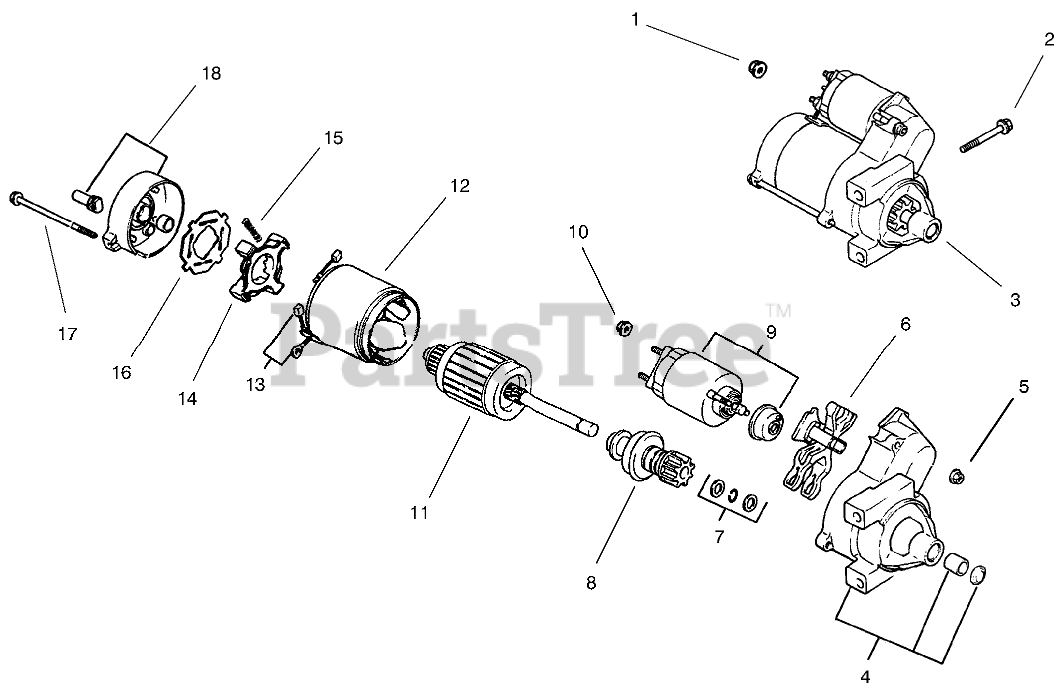

GROUP 7-STARTING SYSTEM (MODEL 73470 ONLY) Parts Diagram

  • Title

1

Kohler M-0841080

Nut
(Superseded to M-841080)

Note: Obtain Parts From Your Local Kohler Dealer

$2.49

$

Usually ships in 2-5 days

0

1

Kohler M-0841080

Nut
(Superseded to M-841080)

Note: Kohler Engine Num CH18S-62579

$2.49

$

Usually ships in 2-5 days

0

2

Kohler M-0839080

Scew

Note: Kohler Engine Num CH18S-62579

$

$

Not available

2

Kohler M-0839080

Scew

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

3

2409801

Starter, solenoid shift assembly (Incl. 4-18)

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

3

2409801

Starter, solenoid shift assembly (Incl. 4-18)

Note: Kohler Engine Num CH18S-62579

$

$

Not available

4

2408104

Cap-Drive End

Note: Kohler Engine Num CH18S-62579

$

$

Not available

4

2408104

Cap-Drive End

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

5

5210010

Nut

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

5

5210010

Nut

Note: Kohler Engine Num CH18S-62579

$

$

Not available

6

1209010

Lever Starter Drive

Note: Kohler Engine Num CH18S-62579

$

$

Not available

6

1209010

Lever Starter Drive

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

7

2475584

Washer

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

7

2475584

Washer

Note: Kohler Engine Num CH18S-62579

$

$

Not available

8

1223901

Drive Pinion

Note: Kohler Engine Num CH18S-62579

$

$

Not available

8

1223901

Drive Pinion

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

9

5243502

Solenoid

Note: Kohler Engine Num CH18S-62579

$

$

Not available

9

5243502

Solenoid

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

10

5210009

Nut

Note: Kohler Engine Num CH18S-62579

$

$

Not available

10

5210009

Nut

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

11

1217004

Armature-Starter

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

11

1217004

Armature-Starter

Note: Kohler Engine Num CH18S-62579

$

$

Not available

12

1247101

Frame

Note: Kohler Engine Num CH18S-62579

$

$

Not available

12

1247101

Frame

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

13

5222101

Kit, brush & spring (Includes 15)

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

13

5222101

Kit, brush & spring (Includes 15)

Note: Kohler Engine Num CH18S-62579

$

$

Not available

14

5232303

Holder-Brush

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

14

5232303

Holder-Brush

Note: Kohler Engine Num CH18S-62579

$

$

Not available

15

5208909

Spring Brush

Note: Kohler Engine Num CH18S-62579

$

$

Not available

15

5208909

Spring Brush

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

16

5216801

Insulator

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

16

5216801

Insulator

Note: Kohler Engine Num CH18S-62579

$

$

Not available

17

5221105

Bolt

Note: Kohler Engine Num CH18S-62579

$

$

Not available

17

5221105

Bolt

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

18

2430101

Commutator-End Cap

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

18

2430101

Commutator-End Cap

Note: Kohler Engine Num CH18S-62579

$

$

Not available
