73540 (520 xi) - Toro Garden Tractor (SN: 089000001 - 089999999) (1998) GROUP 2-CRANKCASE (MODELS 73540 & 73541) Parts Diagram

Garden Tractor

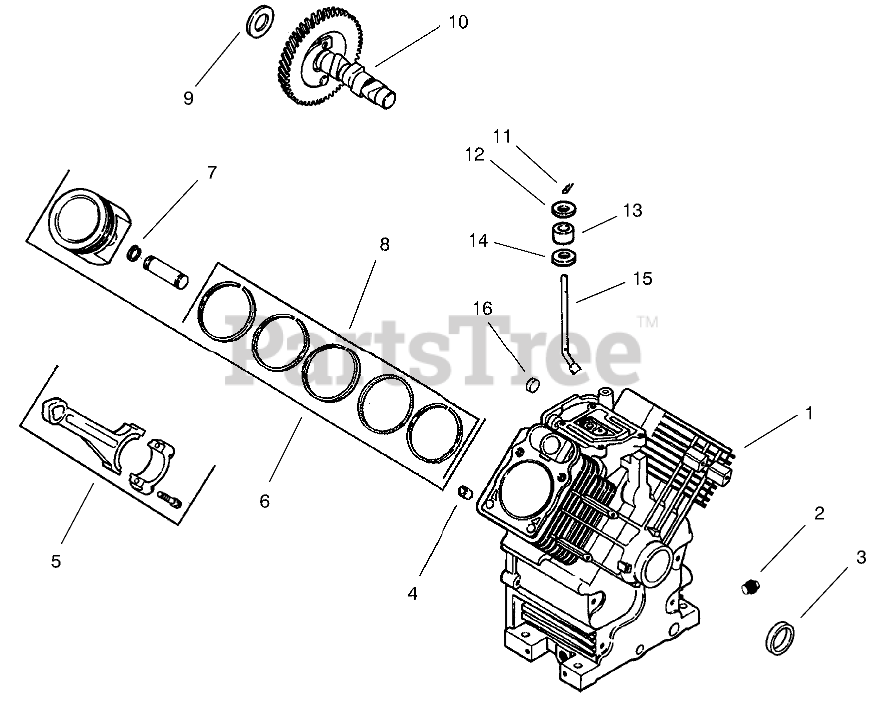

GROUP 2-CRANKCASE (MODELS 73540 & 73541) Parts Diagram

  • Title

1

Kohler X-75-10

Plug
(Superseded to 25 139 57-S)

Note: Obtain Parts From Your Local Kohler Dealer

$2.49

$

In Stock, only 3 left!

0

1

Kohler X-75-10

Plug
(Superseded to 25 139 57-S)

Note: Kohler Engine Num CH20S-64583

$2.49

$

In Stock, only 3 left!

0

2

Kohler 24 032 01

Seal-Oil
(Superseded to 24 032 01-S)

Note: Kohler Engine Num CH20S-64583

$7.49

$

In Stock, Qty 20+

0

2

Kohler 24 032 01

Seal-Oil
(Superseded to 24 032 01-S)

Note: Obtain Parts From Your Local Kohler Dealer

$7.49

$

In Stock, Qty 20+

0

3

1238017

Dowel-Locating

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

3

1238017

Dowel-Locating

Note: Kohler Engine Num CH20S-64583

$

$

Not available

4

Pin, dowel locating

Note: Kohler Engine Num CH20S-64583

$

$

Not available

4

Pin, dowel locating

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

5

2406709

Connecting Rod (std)

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

5

2406709

Connecting Rod (std)

Note: Kohler Engine Num CH20S-64583

$

$

Not available

2406710

Connecting Rod .25

Note: Kohler Engine Num CH20S-64583

$

$

Not available

2406710

Connecting Rod .25

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

6

Kohler 24 874 01

Piston ASM STD INC4/7/8
(Superseded to 24 874 01-S)

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

6

Kohler 24 874 01

Piston ASM STD INC4/7/8
(Superseded to 24 874 01-S)

Note: Kohler Engine Num CH20S-64583

$

$

Not available

2487402

Set-Piston w/Ring .25

Note: Kohler Engine Num CH20S-64583

$

$

Not available

2487402

Set-Piston w/Ring .25

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

Kohler 24 874 03

Piston ASM .50 INC4/7/8
(Superseded to 24 874 49-S)

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

Kohler 24 874 03

Piston ASM .50 INC4/7/8
(Superseded to 24 874 49-S)

Note: Kohler Engine Num CH20S-64583

$

$

Not available

7

Kohler 24 018 01

Retainer-Piston Pin
(Superseded to 24 018 01-S)

Note: Kohler Engine Num CH20S-64583

$2.99

$

In Stock, Qty 7

0

7

Kohler 24 018 01

Retainer-Piston Pin
(Superseded to 24 018 01-S)

Note: Obtain Parts From Your Local Kohler Dealer

$2.99

$

In Stock, Qty 7

0

8

2410801

Ring Set(Std.)

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

8

2410801

Ring Set(Std.)

Note: Kohler Engine Num CH20S-64583

$

$

Not available

2410802

Set-Ring .25

Note: Kohler Engine Num CH20S-64583

$

$

Not available

2410802

Set-Ring .25

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

2410803

Set-Ring .50

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

2410803

Set-Ring .50

Note: Kohler Engine Num CH20S-64583

$

$

Not available

9

Kohler 12 422 09

Shim-Camshaft
(Superseded to 12 422 09-S)

Note: Kohler Engine Num CH20S-64583

$2.49

$

In Stock, only 1 left!

0

9

Kohler 12 422 09

Shim-Camshaft
(Superseded to 12 422 09-S)

Note: Obtain Parts From Your Local Kohler Dealer

$2.49

$

In Stock, only 1 left!

0

Kohler 12 422 13

Shim-Camshaft
(Superseded to 12 422 13-S)

Note: Obtain Parts From Your Local Kohler Dealer

$2.99

$

Usually ships in 2-5 days

0

Kohler 12 422 13

Shim-Camshaft
(Superseded to 12 422 13-S)

Note: Kohler Engine Num CH20S-64583

$2.99

$

Usually ships in 2-5 days

0

Kohler 12 422 07

Shim-Camshaft
(Superseded to 12 422 07-S)

Note: Kohler Engine Num CH20S-64583

$4.49

$

Usually ships in 2-5 days

0

Kohler 12 422 07

Shim-Camshaft
(Superseded to 12 422 07-S)

Note: Obtain Parts From Your Local Kohler Dealer

$4.49

$

Usually ships in 2-5 days

0

Kohler 12 422 08

Shim-Camshaft
(Superseded to 12 422 08-S)

Note: Obtain Parts From Your Local Kohler Dealer

$2.49

$

In Stock, only 2 left!

0

Kohler 12 422 08

Shim-Camshaft
(Superseded to 12 422 08-S)

Note: Kohler Engine Num CH20S-64583

$2.49

$

In Stock, only 2 left!

0

Kohler 12 422 10

Shim-Camshaft
(Superseded to 12 422 10-S)

Note: Kohler Engine Num CH20S-64583

$2.49

$

In Stock, only 1 left!

0

Kohler 12 422 10

Shim-Camshaft
(Superseded to 12 422 10-S)

Note: Obtain Parts From Your Local Kohler Dealer

$2.49

$

In Stock, only 1 left!

0

Kohler 12 422 11

Shim-Camshaft
(Superseded to 12 422 11-S)

Note: Obtain Parts From Your Local Kohler Dealer

$2.49

$

Usually ships in 2-5 days

0

Kohler 12 422 11

Shim-Camshaft
(Superseded to 12 422 11-S)

Note: Kohler Engine Num CH20S-64583

$2.49

$

Usually ships in 2-5 days

0

Kohler 12 422 12

Shim-Camshaft
(Superseded to 12 422 12-S)

Note: Kohler Engine Num CH20S-64583

$2.99

$

Usually ships in 2-5 days

0

Kohler 12 422 12

Shim-Camshaft
(Superseded to 12 422 12-S)

Note: Obtain Parts From Your Local Kohler Dealer

$2.99

$

Usually ships in 2-5 days

0

10

2401205

Camshaft

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

10

2401205

Camshaft

Note: Kohler Engine Num CH20S-64583

$

$

Not available

11

1238004

Pin-Hitch

Note: Kohler Engine Num CH20S-64583

$

$

Not available

11

1238004

Pin-Hitch

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

12

Kohler M-0631005

Washer
(Superseded to M-631005)

Note: Obtain Parts From Your Local Kohler Dealer

$2.49

$

Usually ships in 2-5 days

0

12

Kohler M-0631005

Washer
(Superseded to M-631005)

Note: Kohler Engine Num CH20S-64583

$2.49

$

Usually ships in 2-5 days

0

13

1203201

Seal-Cross Shaft

Note: Kohler Engine Num CH20S-64583

$

$

Not available

13

1203201

Seal-Cross Shaft

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

14

Kohler X-25-102

Washer
(Superseded to X-25-102-S)

Note: Obtain Parts From Your Local Kohler Dealer

$2.49

$

In Stock, Qty 5

0

14

Kohler X-25-102

Washer
(Superseded to X-25-102-S)

Note: Kohler Engine Num CH20S-64583

$2.49

$

In Stock, Qty 5

0

15

2414401

Shaft-Governor Cross

Note: Kohler Engine Num CH20S-64583

$

$

Not available

15

2414401

Shaft-Governor Cross

Note: Obtain Parts From Your Local Kohler Dealer

$

$

Not available

16

Kohler 52 139 09

Plug
(Superseded to 52 139 09-S)

Note: Obtain Parts From Your Local Kohler Dealer

$4.99

$

In Stock, only 2 left!

0

16

Kohler 52 139 09

Plug
(Superseded to 52 139 09-S)

Note: Kohler Engine Num CH20S-64583

$4.99

$

In Stock, only 2 left!

0
