73521 (520-H) - Toro Garden Tractor (SN: 079000001 - 079999999) (1997) TRANSMISSION CONTROL & FILTER ASSEMBLY Parts Diagram

Garden Tractor

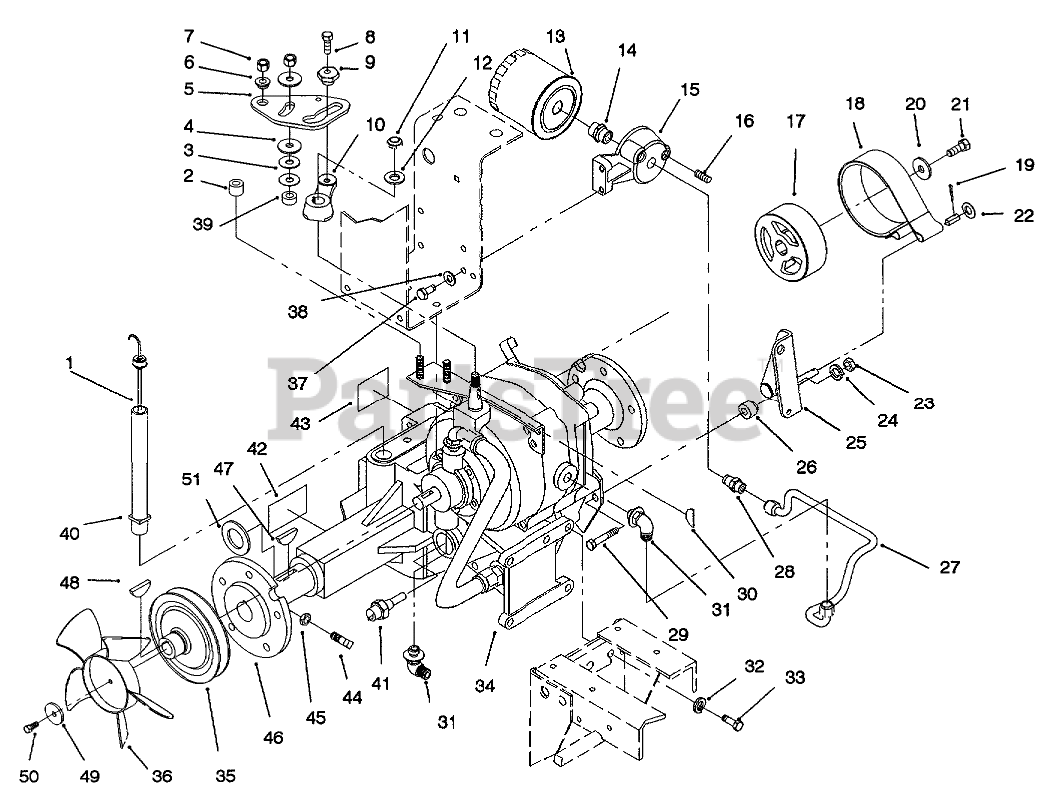

TRANSMISSION CONTROL & FILTER ASSEMBLY Parts Diagram

  • Title

1

Toro 110768-03

ASSY DIPSTICK (BLACK)

$

$

Not available

2

Toro 108326-03

Spacer-Pivot

$

$

Currently unavailable

3

Toro 100365

WASHER-SPRING DISC

$

$

Not available

4

Toro 100305

FRICTION WASHER

$5.99

$

In Stock, only 2 left!

0

5

Toro 108333

CAM-SPEED CONTROL (NS)

$37.99

$

In Stock, only 1 left!

0

6

Toro 100309

CAM-SPACER

$9.99

$

In Stock, only 1 left!

0

7

Toro 108881

NUT

$6.49

$

In Stock, only 2 left!

0

8

Toro 9080196

Screw-HH

$

$

Currently unavailable

9

Toro 106661

CAM

$

$

Not available

10

Toro 108325

ARM-SPEED CONTROLB
(Superseded to 108325-03)

$67.99

$

Usually ships in 3-6 days

0

11

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

12

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 79-5270

OIL FILTER ASM

$19.99

$

Usually ships in 3-6 days

0

14

Toro 5991

FITTING

$37.99

$

Usually ships in 3-6 days

0

15

Toro 108323

BASE-FILTER

$225.99

$

Usually ships in 3-6 days

0

17

Toro 106719

DRUM-BRAKE

$106.99

$

Usually ships in 3-6 days

0

18

Toro 109371

ASSY-BRAKE BAND

$149.99

$

Usually ships in 3-6 days

0

19

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

20

Toro 2844

WASHER

$2.99

$

In Stock, Qty 18

0

21

Toro 3235-22

SCREW-HH, LOCK

$2.99

$

In Stock, only 2 left!

0

22

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

24

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

25

Toro 78-7740-01

Pivot Arm-Brake

$

$

Currently unavailable

26

Toro 109356

BUSHING-BRAKE PIVOT

$

$

Not available

27

Toro 79-5020

ASS'Y-TUBE FILTER

$

$

Not available

28

Toro 102628

FITTING

$

$

Not available

29

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

30

Toro 3257-24

KEY-WOODRUFF

$5.49

$

Usually ships in 3-6 days

0

31

Toro 108365

ELBOW
(Superseded to 103-1802)

$22.99

$

In Stock, only 1 left!

0

32

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

33

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

33

Toro 94-6672

HYDRO TRANSAXLE ASM

$

$

Not available

34

Toro 94-6679

Transaxle/Intl Decal
(Superseded to 94-6672)

$

$

Not available

35

Toro 108316

PULLEY

$

$

Not available

36

Toro 108393

NYLON FAN-L-CW

$35.99

$

In Stock, only 1 left!

0

37

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

38

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

39

Toro 108327

SPACER-FRICTION

$2.49

$

Usually ships in 3-6 days

0

40

Toro 106448

NIPPLE-TRANS FILL

$

$

Not available

41

Toro 113193

SENSOR-HYDRO OIL HOT

$

$

Not available

42

Toro 94-5592

Decal-Danger

$

$

Currently unavailable

43

Toro 94-1834

DECAL-UNIDRIVE

$4.49

$

In Stock, Qty 7

0

44

Toro 3243-5

SCREW-SET, SQH

$2.99

$

In Stock, Qty 13

0

45

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

46

Toro 105763-03

HUB-WHEEL

$165.99

$

Usually ships in 3-6 days

0

47

Toro 937108

KEY-WOODRUFF

$4.99

$

In Stock, only 3 left!

0

48

Toro 937089

KEY-WOODRUFF

$1.99

$

In Stock, Qty 5

0

49

Toro 103995

WASHER

$9.49

$

In Stock, only 2 left!

0

50

Toro 9080026

SCREW-HEX HD CAP
(Superseded to 110-9381)

$1.99

$

In Stock, only 3 left!

0

51

Toro 106826

WASHER-THRUST

$11.99

$

In Stock, only 1 left!

0
