73521 (520-H) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) HYDRAULIC LIFT SYSTEM Parts Diagram

Garden Tractor

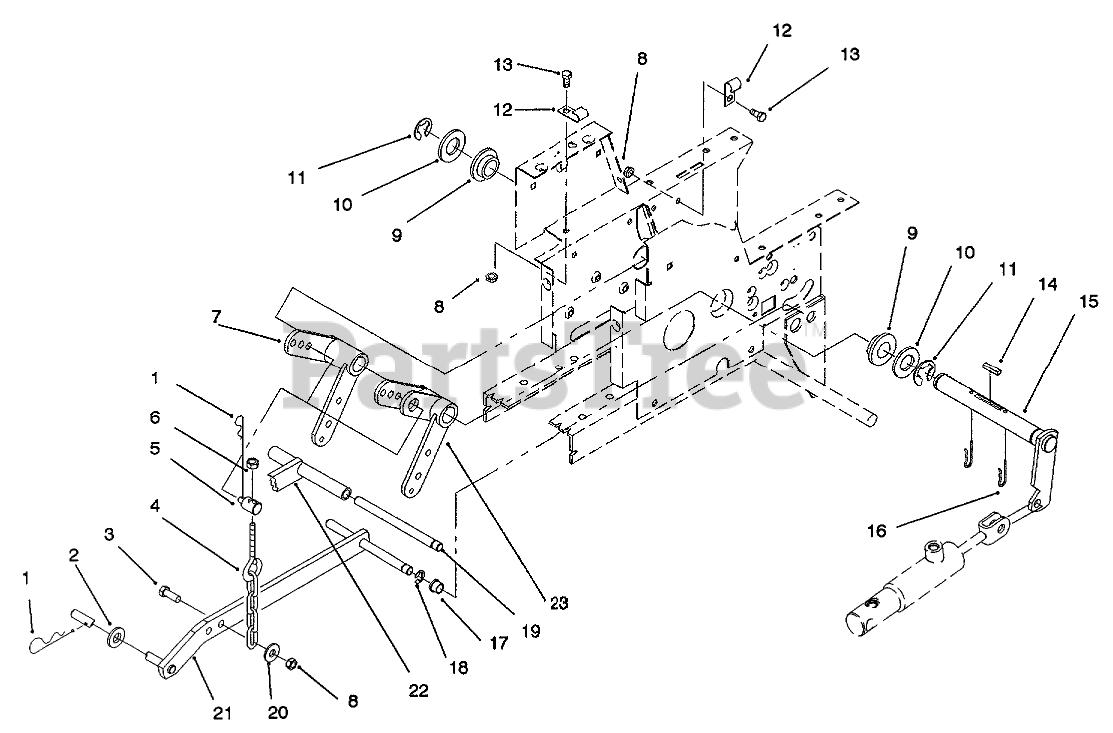

HYDRAULIC LIFT SYSTEM Parts Diagram

  • Title

1

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

2

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

4

Toro 106522

CHAIN-LIFT

$36.99

$

In Stock, only 1 left!

0

5

Toro 6739

TRUNNION-LIFT

$24.99

$

In Stock, Qty 5

0

6

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 16

0

7

Toro 78-1550

LIFT LEVER ASM

$112.99

$

In Stock, only 1 left!

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 106269

BEARING-FLANGE

$9.99

$

Usually ships in 3-6 days

0

10

Toro 3256-62

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0

11

Toro 32151-91

RING-RETAINING

$2.49

$

In Stock, Qty 5

0

12

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

13

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

14

Toro 1121

KEY-SQUARE

$12.99

$

Usually ships in 3-6 days

0

15

Toro 121100

WLDMT-LIFT ARM

$

$

Not available

16

Toro 9335074

PIN-HAIR

$5.49

$

In Stock, Qty 5

0

17

Toro 6229

BUSHING

$10.99

$

In Stock, only 2 left!

0

18

Toro 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 8

0

20

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

21

Toro 113445-01

Bar-Lift

$

$

Currently unavailable
