73521 (520-H) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) HOODSTAND, CONSOLE Parts Diagram

Garden Tractor

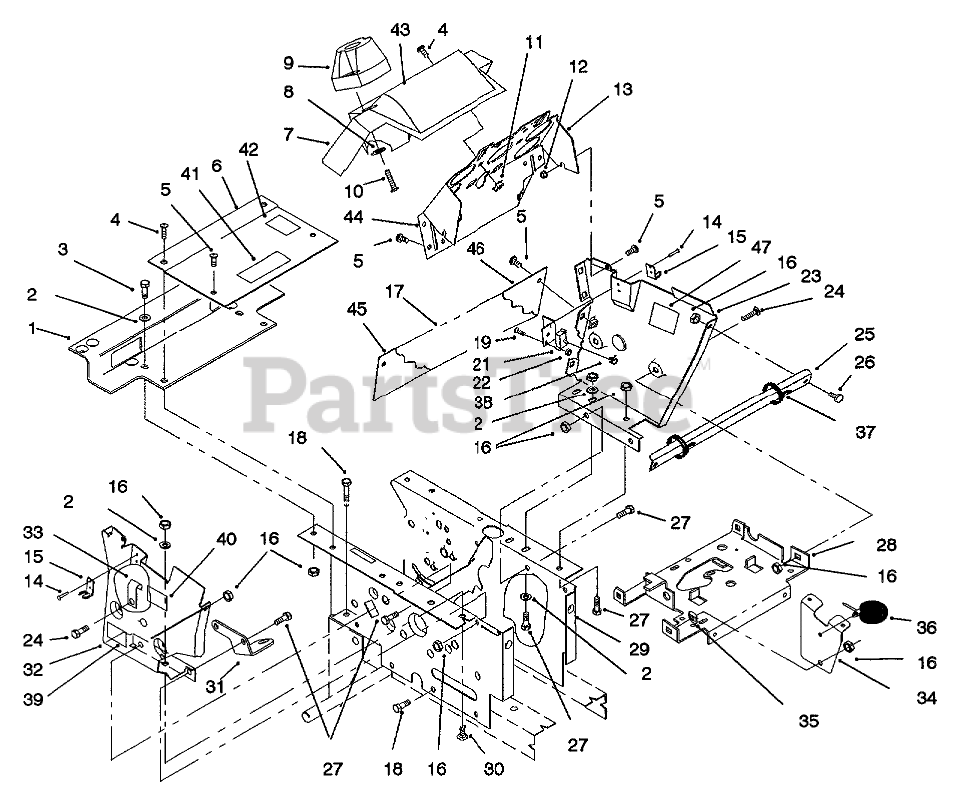

HOODSTAND, CONSOLE Parts Diagram

  • Title

1

Toro 113023-03

Bracket-Fender

$

$

Not available

2

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

3

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

4

Toro 9108392

SCREW 1/4-20X.87

$

$

Not available

5

Toro 9108372

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

6

Toro 79-6770-03

Plate-Top Hoodstand

$

$

Currently unavailable

7

Toro 115620

COVER-CONSOLE 5 GAGE

$

$

Not available

8

Toro 9202704

WASHER-FLAT

$1.49

$

In Stock, Qty 8

0

9

Toro 118410

COVER-STEERING SHAFT

$

$

Not available

10

Toro 118780

SCREW-#6 PLASTITE

$

$

Not available

11

Toro 32115-5

NUT-RETAINED

$7.49

$

Usually ships in 3-6 days

0

12

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

13

Toro 117267-03

WELDMENT-PANEL (BLACK)

$

$

Not available

14

Toro 117433

RIVET-POP

$

$

Not available

15

Toro 117343

KEEPER-LATCH

$4.99

$

In Stock, only 2 left!

0

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 113928-03

Plate-Hoodstand

$

$

Currently unavailable

18

Toro 9266944

Bolt
(Superseded to 92-6694)

$

$

Not available

19

Toro 9109484

SCREW-PPH

$0.99

$

In Stock, Qty 10

0

20

Toro 114628

BRACKET-SWITCH SU

$

$

Not available

21

Toro 94-1839

SENSOR-AIR CLEANER VACUUM

$

$

Not available

22

Toro 9157324

NUT-HEX

$1.49

$

In Stock, Qty 7

0

23

Toro 79-4890-03

PANEL-SIDE L.H. (BLACK)

$

$

Not available

24

Toro 116000

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

25

Toro 113932-03

Stiffener-Panel

$

$

Currently unavailable

26

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0

27

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

28

Toro 116309-03

ASM-Support

$

$

Currently unavailable

29

Toro 79-5120-03

WLDMT-HOOD STND (BLACK)

$

$

Not available

30

Toro 9000369

Bolt

$

$

Currently unavailable

31

Toro 78-1540-03

BRKT-LR CNTROL (BLACK)

$

$

Not available

32

Toro 113962-03

PANEL-SIDE RH (BLACK)

$96.99

$

In Stock, only 1 left!

0

33

Toro 8830

CLIP

$2.49

$

In Stock, Qty 5

0

34

Toro 117191-03

BRKT-FUSE HOLDER (BLACK)

$

$

Not available

35

Toro 108457

NUT-PUSH

$

$

Not available

36

Toro 117257

TIE-WRAP SNAP IN

$

$

Not available

37

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

38

Toro 114767

CLAMP-HOSE 5/16"

$

$

Not available

39

Toro 92-9833

Decal-520 Hydro
(Superseded to 94-6342)

$

$

Not available

40

Toro 114621

DECAL-EUROPE
(Superseded to 105-2699)

$33.99

$

Usually ships in 3-6 days

0

41

Toro 93-7314

DECAL - DANGER

$

$

Not available

42

Toro 93-9351

DECAL - PARKING BRAKE

$

$

Not available

43

Toro 93-7338

DECAL - IND LIGHTS

$

$

Not available

44

Toro 93-9396

DECAL - FRONT PANEL

$

$

Not available

45

Toro 93-7847

DECAL - PTO CLUTCH

$

$

Not available

46

Toro 93-7337

DECAL - DANGER

$

$

Not available

47

Toro 93-7846

DECAL - ELEC SYSTEM

$

$

Not available

48

Toro 117432

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0
