73521 (520-H) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) GAUGES, WARNING LIGHTS & CONTROLS Parts Diagram

Garden Tractor

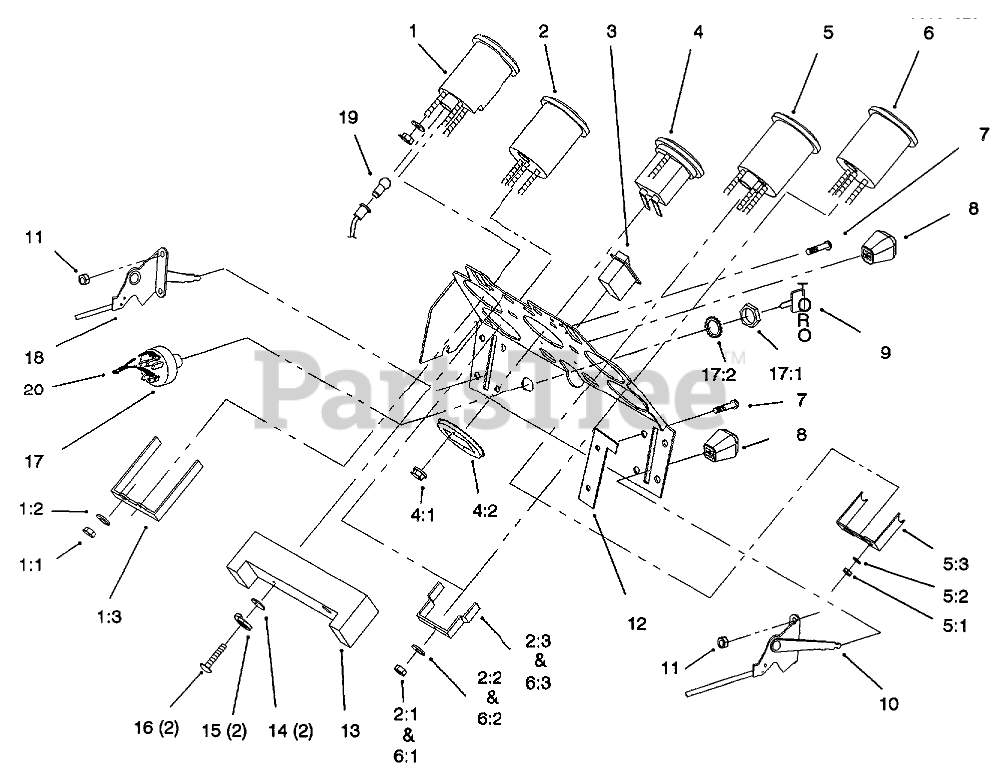

GAUGES, WARNING LIGHTS & CONTROLS Parts Diagram

  • Title

1

Toro 78-0060

TACHOMETER

$

$

Not available

1:1

Toro 3217-27

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

1:2

Toro 3255-25

WASHER-LOCK
(Superseded to 3255-20)

$0.99

$

Usually ships in 3-6 days

0

1:3

Toro 78-0090

BRACKET - GAUGE MOUNT

$

$

Not available

2

Toro 78-0040

FUEL-GAUGE
(Superseded to 95-3830)

$215.99

$

Usually ships in 3-6 days

0

2:1

Toro 3217-27

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

2:2

Toro 3255-25

WASHER-LOCK
(Superseded to 3255-20)

$0.99

$

Usually ships in 3-6 days

0

2:3

Toro 78-0080

CLAMP-MOUNTING

$

$

Not available

3

Toro 92-9844

SWITCH-HEADLIGHT
(Superseded to 107-9238)

$60.99

$

Usually ships in 3-6 days

0

4

Toro 94-3723

Hourmeter
(Superseded to 66-2950)

$

$

Not available

4:1

Toro 32149-9

NUT-HEX, KEPS

$1.99

$

Usually ships in 3-6 days

0

4:2

Toro 94-1849

Retainer

$

$

Currently unavailable

5

Toro 79-2660

VACUUM-GAGE

$

$

Not available

5:1

Toro 3217-27

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

5:2

Toro 3255-25

WASHER-LOCK
(Superseded to 3255-20)

$0.99

$

Usually ships in 3-6 days

0

5:3

Toro 78-0100

Bracket-Mounting

$

$

Currently unavailable

6

Toro 78-0030

Voltmeter
(Superseded to 17-8049)

$

$

Not available

6:1

Toro 3217-27

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

6:2

Toro 3255-25

WASHER-LOCK
(Superseded to 3255-20)

$0.99

$

Usually ships in 3-6 days

0

6:3

Toro 78-0080

CLAMP-MOUNTING

$

$

Not available

7

Toro 9107922

SCRW-PHC

$10.99

$

Usually ships in 3-6 days

0

8

Toro 66-0120

KNOB

$5.99

$

In Stock, only 2 left!

0

9

Toro 62-7770

KEY-IGNITION

$4.99

$

In Stock, only 1 left!

0

10

Toro 114027

CONTROL-CHOKE

$

$

Not available

11

Toro 9157404

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

12

Toro 114641-03

Stop-Choke

$

$

Currently unavailable

13

Toro 79-2130

CIRCUIT-BRD 8 LIGHT

$

$

Not available

14

Toro 3256-21

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

15

Toro 3253-15

WASHER-LOCK

$2.49

$

Usually ships in 3-6 days

0

16

Toro 9107834

Screw

$

$

Currently unavailable

17

Toro 111216

IGNITION SWITCH ASM
(Superseded to 103990)

$28.99

$

In Stock, only 4 left!

0

17:1

Toro 101884

NUT

$7.49

$

In Stock, only 1 left!

0

17:2

Toro 9201604

WASHER-LOCK

$0.99

$

In Stock, only 3 left!

0

18

Toro 115392

CONTROL-THROTTLE

$112.99

$

In Stock, only 3 left!

0

19

Toro 79-0450

LAMP-MINIATURE GE 53X

$

$

Not available
