73521 (520-H) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) 520-WIRE HARNESS ATTACHMENT & COMPONENT-S Parts Diagram

Garden Tractor

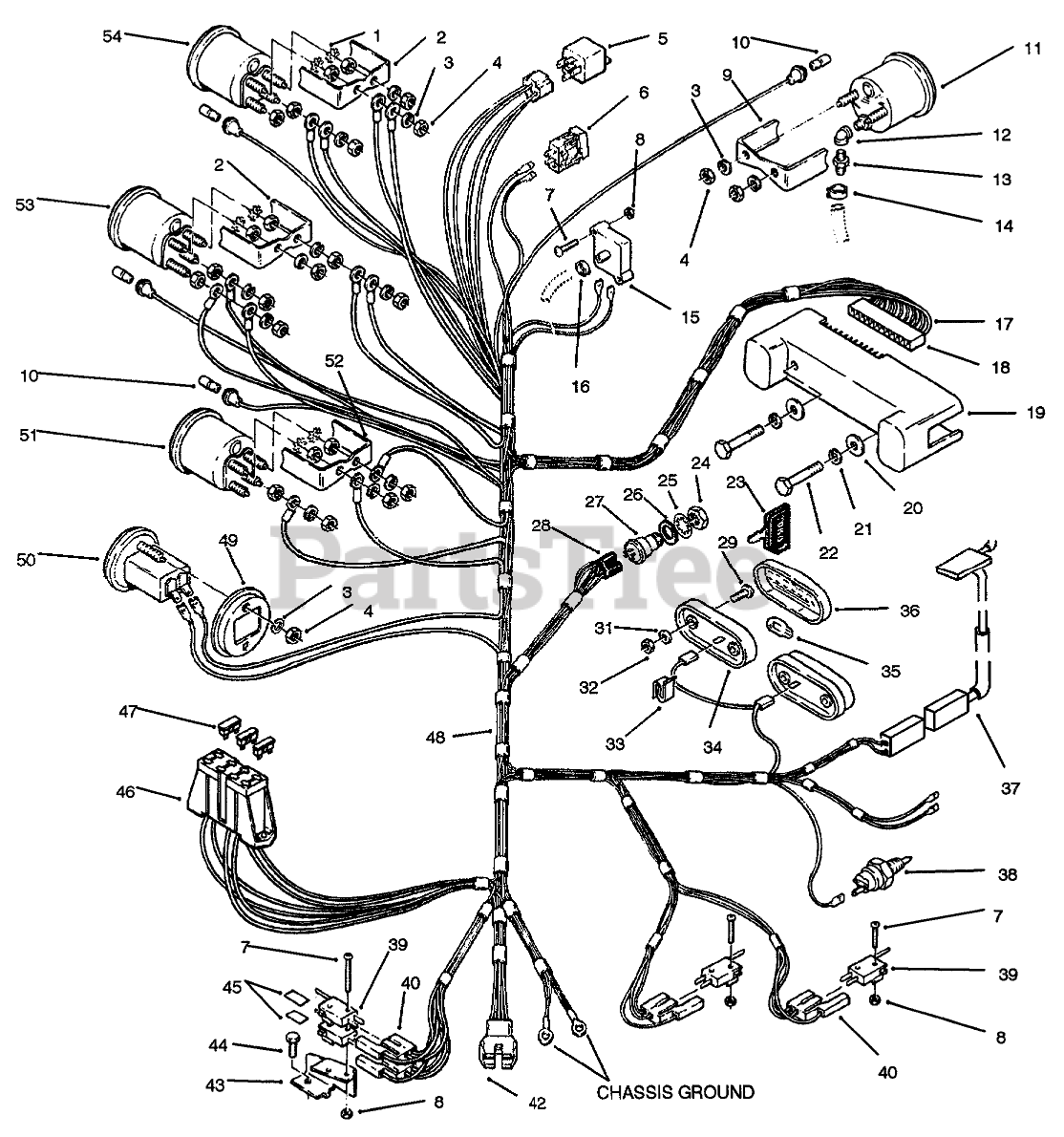

520-WIRE HARNESS ATTACHMENT & COMPONENT-S Parts Diagram

  • Title

1

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, Qty 6

0

2

Toro 78-0080

CLAMP-MOUNTING

$

$

Not available

3

Toro 3255-25

WASHER-LOCK
(Superseded to 3255-20)

$0.99

$

Usually ships in 3-6 days

0

4

Toro 3217-27

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

5

Toro 116397

RELAY

$40.99

$

In Stock, only 1 left!

0

6

Toro 92-9844

SWITCH-HEADLIGHT
(Superseded to 107-9238)

$60.99

$

Usually ships in 3-6 days

0

7

Toro 910948

Screw
(Superseded to 9109484)

$0.99

$

In Stock, Qty 10

0

8

Toro 915732

NUT HEX 4-40 ELAST
(Superseded to 9157324)

$1.49

$

In Stock, Qty 7

0

9

Toro 78-0100

Bracket-Mounting

$

$

Currently unavailable

10

Toro 79-0450

LAMP-MINIATURE GE 53X

$

$

Not available

11

Toro 79-2660

Gauge-Vacuum (Incl. Ref. #3-4 & 9)

$

$

Not available

12

Toro 943021

ELBOW

$

$

Not available

13

Toro 105076

FITTING STRAIGHT

$

$

Not available

14

Toro 950154

Clamp

$

$

Not available

15

Toro 94-1836

ASSEMBLY - CHUTE W/DECAL
(Superseded to 99-3707)

$

$

Not available

16

Toro 114767

CLAMP-HOSE 5/16"

$

$

Not available

17

Toro 114633

Terminal

$

$

Currently unavailable

18

Toro 114632

Connector-Male

$

$

Currently unavailable

19

Toro 79-2130

CIRCUIT-BRD 8 LIGHT

$

$

Not available

20

Toro 3256-21

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

21

Toro 3253-15

WASHER-LOCK

$2.49

$

Usually ships in 3-6 days

0

22

Toro 910783

SCREW

$

$

Not available

23

Toro 62-7770

KEY-IGNITION

$4.99

$

In Stock, only 1 left!

0

24

Toro 101884

NUT

$7.49

$

In Stock, only 1 left!

0

25

Toro 9201604

WASHER-LOCK

$0.99

$

In Stock, only 3 left!

0

26

Toro 920262

Washer
(Superseded to 9202624)

$8.99

$

Usually ships in 3-6 days

0

27

Toro 111216

Switch-ignition (Incl. Ref. #24-26)
(Superseded to 103990)

$28.99

$

In Stock, only 4 left!

0

28

Toro 105302

CONNECTOR-5 WAY-SERV
(Superseded to 32160-014)

$5.99

$

In Stock, only 2 left!

0

29

Toro 910809

Screw
(Superseded to 3250-25)

$0.99

$

Usually ships in 3-6 days

0

31

Toro 3254-1

WASHER-LOCK, INT

$0.99

$

Usually ships in 3-6 days

0

32

Toro 3219-14

NUT-HEX

$0.99

$

In Stock, only 1 left!

0

33

Toro 3023

SPEED CLIP

$

$

Not available

34

Toro 105202

BASE-TAIL LIGHT

$

$

Not available

35

Toro 109045

LIGHT BULB

$

$

Not available

36

Toro 112564

LENS-TAIL LIGHT

$9.99

$

In Stock, Qty 5

0

37

Toro 38-1420

SWITCH-SEAT

$

$

Not available

38

Toro 113193

SENSOR-HYDRO OIL HOT

$

$

Not available

39

Toro 111332

SWITCH

$12.99

$

In Stock, only 2 left!

0

40

Toro 111498

CONNECTOR BODY

$5.49

$

In Stock, only 3 left!

0

42

Toro 113119

9-CIRCUIT CAP

$

$

Not available

43

Toro 111488

Support-Switch
(Superseded to 115411)

$

$

Not available

44

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 5

0

45

Toro 111642

BARRIER - SWITCH

$

$

Not available

46

Toro 120930

FUSE-HOLDER 4 WAY
(Superseded to 67-7160)

$22.99

$

In Stock, only 1 left!

0

47

Toro 218-578

FUSE-BLADE, 10 AMP

$2.99

$

In Stock, Qty 6

0

Toro 109101

FUSE-BLADE, 20 AMP

$2.49

$

In Stock, Qty 6

0

Toro NN10277

FUSE-30 AMP

$9.99

$

Usually ships in 3-6 days

0

48

Toro 79-3630

WIRING-HARNESS & DIA

$

$

Not available

49

Toro 78-3220

Bracket-Mountin
(Superseded to 78-3221)

$

$

Not available

50

Toro 78-0020

Hourmeter (Incl. Ref. #3-4 & 49)
(Superseded to 66-2950)

$

$

Not available

51

Toro 78-0060

Tachometer (Incl. Ref. #1, 3-4 & 5 52)

$

$

Not available

52

Toro 114018

MOUNTING-BRACKET

$

$

Not available

53

Toro 78-0040

Gauge-Fuel (Incl. Ref. #1-4)
(Superseded to 95-3830)

$215.99

$

Usually ships in 3-6 days

0

54

Toro 78-0030

Voltmeter (Incl. Ref. #1-4)
(Superseded to 17-8049)

$

$

Not available

Toro 117257

TIE-WRAP SNAP IN

$

$

Not available
