73520 (520-H) - Toro Garden Tractor (SN: 059000178 - 059999999) (1995) HYDROSTATIC LIFT LINKAGE Parts Diagram

Garden Tractor

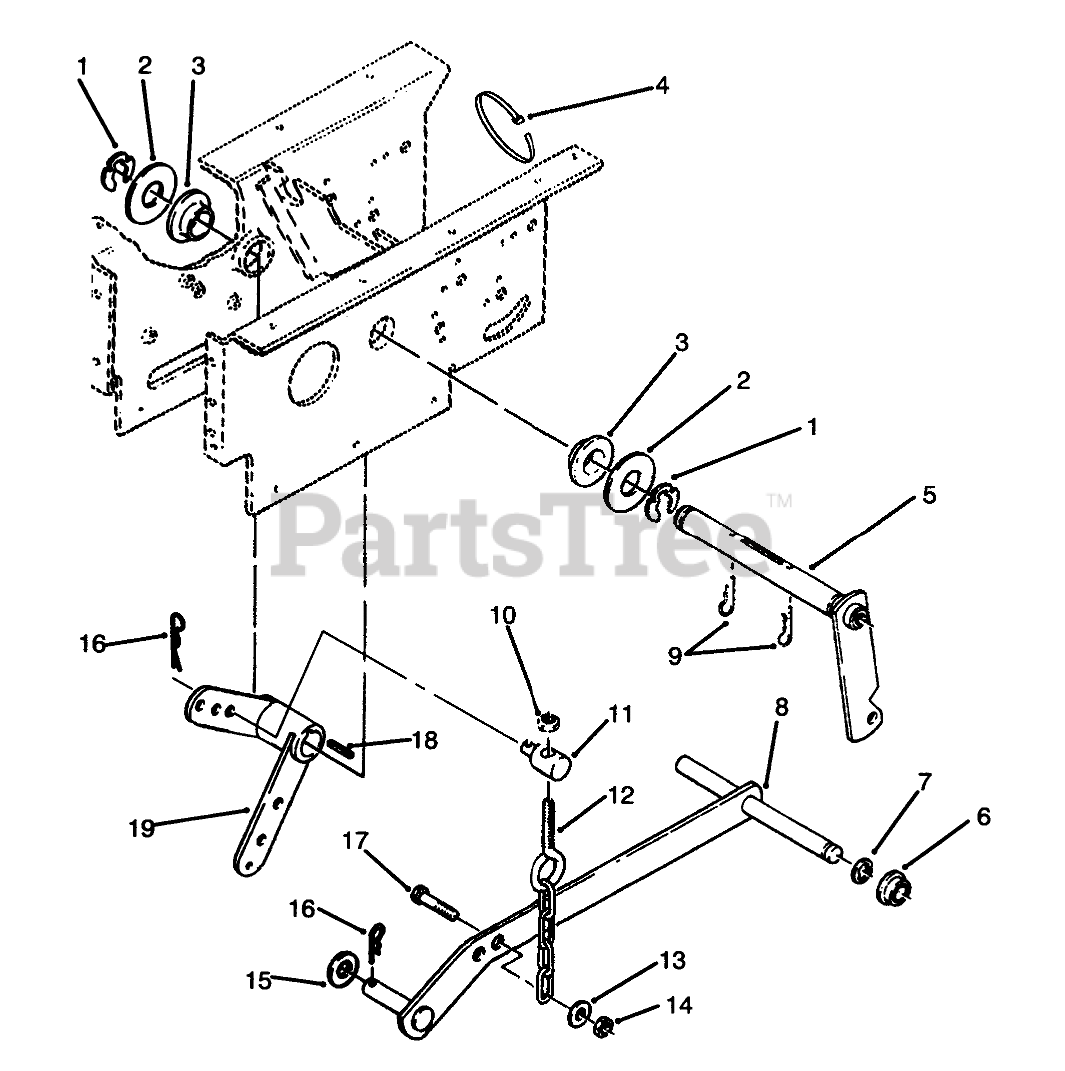

HYDROSTATIC LIFT LINKAGE Parts Diagram

  • Title

1

Toro 32151-91

RING-RETAINING

$2.49

$

In Stock, Qty 5

0

2

Toro 3256-30

WASHER-FLAT

$6.99

$

Usually ships in 3-6 days

0

3

Toro 106269

BEARING-FLANGE

$8.99

$

Usually ships in 3-6 days

0

4

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

5

Toro 121100

WLDMT-LIFT ARM

$

$

Not available

6

Toro 6229

BUSHING

$10.99

$

In Stock, only 2 left!

0

7

Toro 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 8

0

8

Toro 113445

Bar-Lift
(Superseded to 113445-03)

$114.99

$

Usually ships in 3-6 days

0

9

Toro 933507

Pin-Cotter
(Superseded to 9335074)

$4.99

$

In Stock, Qty 5

0

10

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

11

Toro 6739

TRUNNION-LIFT

$23.99

$

In Stock, Qty 6

0

12

Toro 106522

CHAIN-LIFT

$31.99

$

In Stock, only 1 left!

0

13

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

15

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

17

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 1121

KEY-SQUARE

$10.99

$

Usually ships in 3-6 days

0

19

Toro 78-1550

LIFT LEVER ASM

$108.99

$

In Stock, only 1 left!

0
