73520 (520-H) - Toro Garden Tractor (SN: 059000001 - 059000177) (1995) STEERING GEAR ASSEMBLY Parts Diagram

Garden Tractor

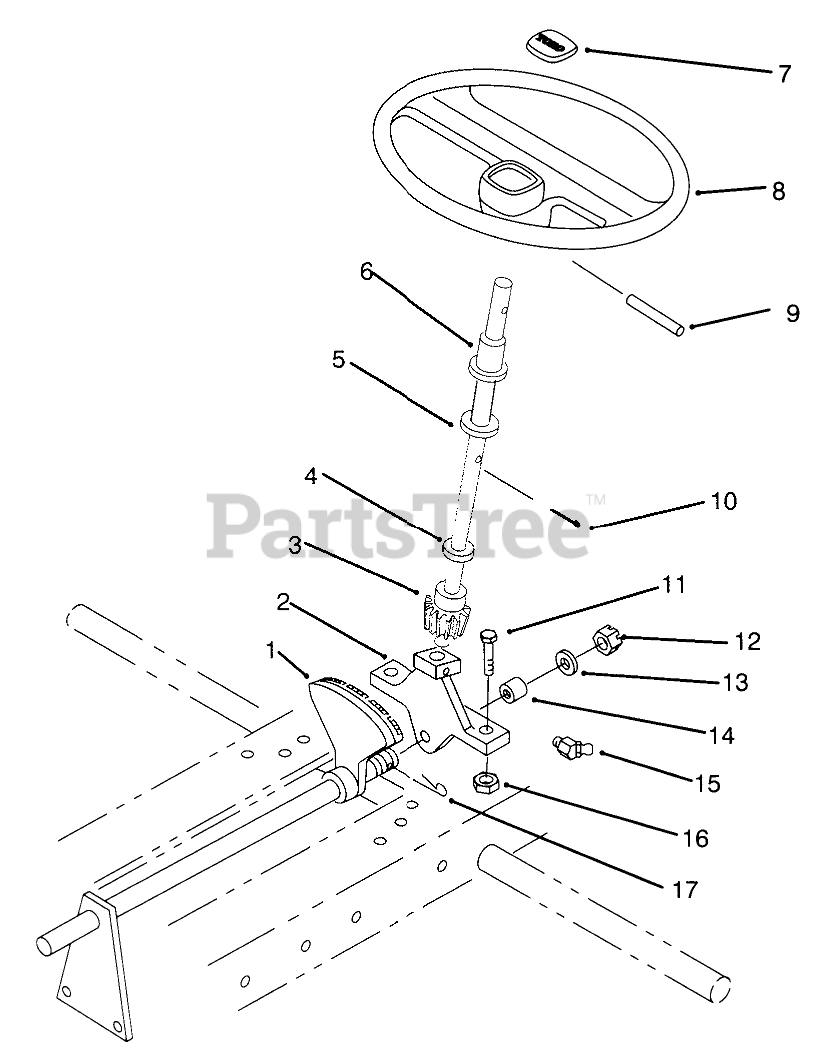

STEERING GEAR ASSEMBLY Parts Diagram

  • Title

1

Toro 78-2880

Shaft
(Superseded to 78-2880-03)

$249.99

$

Usually ships in 3-6 days

0

2

Toro 88-2710

Support-Steering
(Superseded to 88-2710-03)

$

$

Not available

3

Toro 92-3129

STEERING SHAFT WA

$

$

Not available

4

Toro 237-69

O-RING

$6.99

$

Usually ships in 3-6 days

0

5

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 8

0

6

Toro 109189

BEARING-FLANGED

$3.49

$

In Stock, Qty 20+

0

7

Toro 78-0370

STRG-WHL INSERT TORO

$

$

Not available

8

Toro 76-1420

Wheel-Steering(Incl. Ref. #7)

$217.99

$

Usually ships in 3-6 days

0

9

Toro 32121-111

PIN-ROLL

$2.99

$

In Stock, Qty 20+

0

10

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, only 3 left!

0

11

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 32136-5

NUT-HEX, SLOTTED

$7.99

$

Usually ships in 3-6 days

0

13

Toro 1278

WASHER

$2.99

$

In Stock, only 4 left!

0

14

Toro 6397

BEARING-BRONZE

$24.99

$

In Stock, only 1 left!

0

15

Toro 1481

FITTING-GREASE

$6.49

$

Usually ships in 3-6 days

0

16

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 16

0

17

Toro 3272-19

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0
