73520 (520-H) - Toro Garden Tractor (SN: 059000001 - 059000177) (1995) INTAKE MANIFOLD Parts Diagram

Garden Tractor

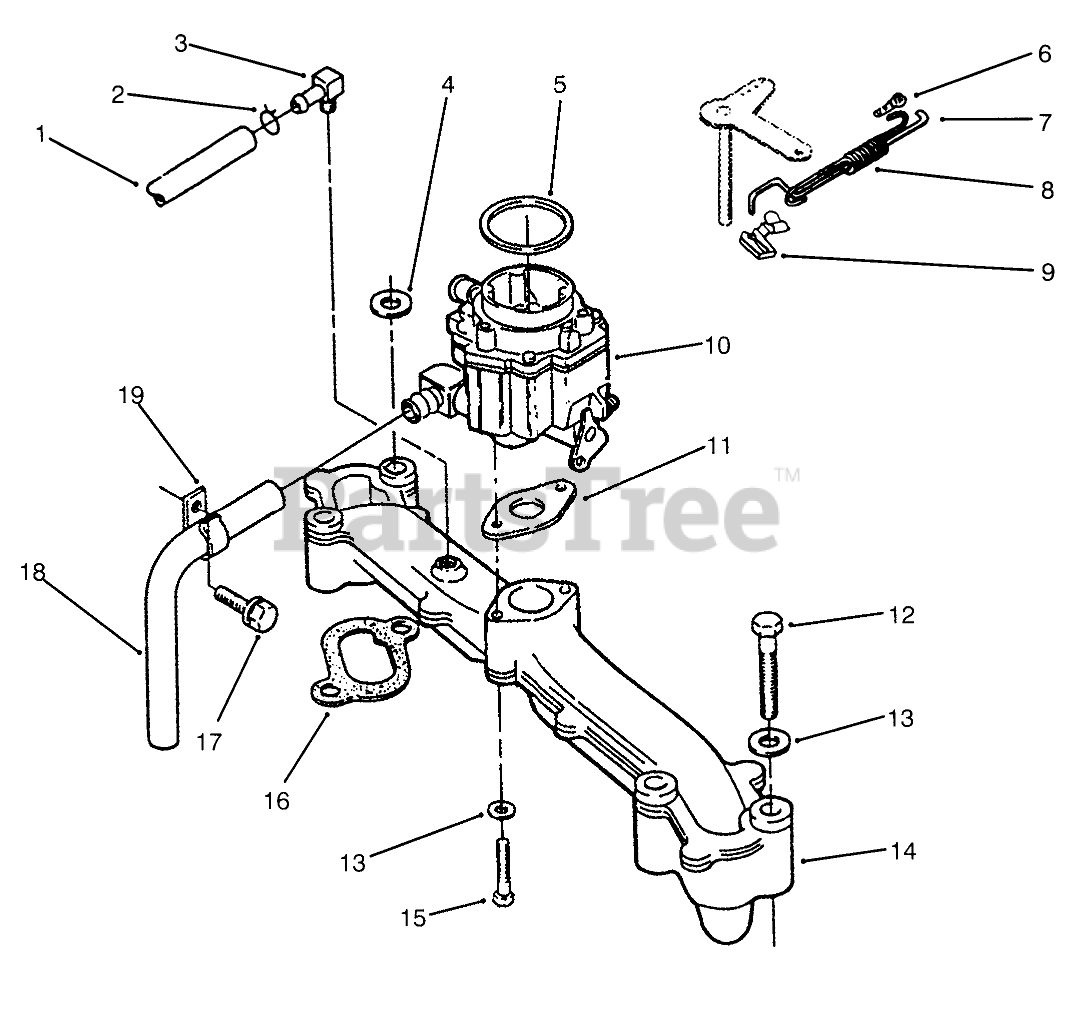

INTAKE MANIFOLD Parts Diagram

  • Title
1

Toro 82-1120

HOSE-RUBBER, BREATHER

$

$

Not available

2

Toro 82-1080

CLAMP-HOSE

$7.49

$

In Stock, only 3 left!

0

2

Toro 82-1090

CLAMP-HOSE, BREATHER

$

$

Not available

3

Toro 82-1070

FITTING-BARB

$

$

Not available

4

Toro NN10362

FLAT WASHER

$

$

Not available

5

$6.99

$

Usually ships in 3-6 days

0

6

$

$

Not available

7

Toro NN10227

Governor Control Rod
(Superseded to 57-9160)

$

$

Not available

8

Toro NN10877

Spring-Governor Rod
(Superseded to NN10928)

$

$

Not available

9

$5.99

$

Usually ships in 3-6 days

0

10

Toro 62-2790

Assembly-Carburetor (Incl. Ref. #5 & 11)
(Superseded to NN10204)

$

$

Not available

11

Toro 82-0850

GASKET-CARBURETOR

$11.99

$

In Stock, only 1 left!

0

12

$

$

Not available

13

Toro 82-1350

WASHER-FLAT

$

$

Not available

14

Toro 92-0918

MANIFOLD

$

$

Not available

15

Toro NN10545

HEX-HEAD CAP SCREW

$

$

Not available

16

Toro 71-5980

GASKET

$14.99

$

In Stock, only 3 left!

0

17

Toro 82-1540

SCREW-HWH

$

$

Not available

18

Toro NN10306

FUEL HOSE

$

$

Not available

19

Toro 71-6220

CLIP-WIRE

$

$

Not available
