73520 (520-H) - Toro Garden Tractor (SN: 059000001 - 059000177) (1995) HOOD ASSEMBLY Parts Diagram

Garden Tractor

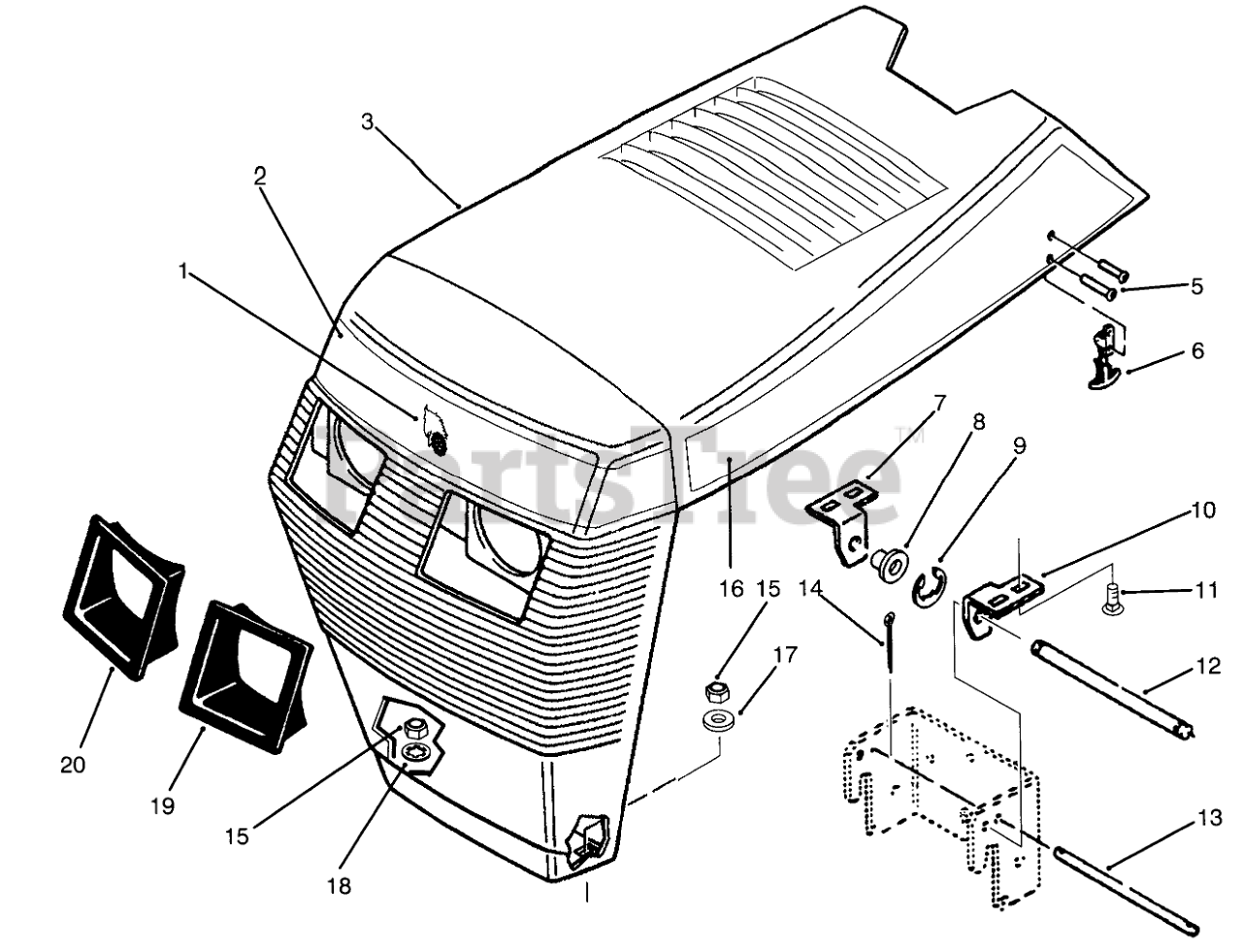

HOOD ASSEMBLY Parts Diagram

  • Title

1

Toro 92-9836

PLATE - LOGO WHL HORSE

$

$

Not available

2

Toro 92-9826

DECAL-FRONT HOOD, TOP

$33.99

$

Usually ships in 3-6 days

0

3

Toro 114709

SERV.ASSY-HOOD & PKG

$

$

Not available

5

Toro 117432

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

6

Toro 117344

HANDLE ASM

$36.99

$

Usually ships in 3-6 days

0

7

Toro 116746

BRACKET-GRILL, R H

$12.99

$

In Stock, Qty 11

0

8

Toro 5979

BUSHING-NYLINER

$3.49

$

In Stock, Qty 20+

0

9

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 20+

0

10

Toro 116747

BRACKET-GRILL, LH

$12.99

$

In Stock, Qty 6

0

11

Toro 3229-25

SCREW-CARR
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 20+

0

12

Toro 116745

ROD-GRILL PIVOT

$16.99

$

In Stock, only 2 left!

0

13

Toro 101850

ROD-HOOD STOP

$21.99

$

Usually ships in 3-6 days

0

14

Toro 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 16

0

15

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

16

Toro 92-9834

DECAL - LH HOOD TOP

$

$

Not available

Toro 92-9835

DECAL - RH HOOD TOP

Note: Not illustrated

$

$

Not available

17

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 3254-2

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

19

Toro 109495

BEZEL-HEADLIGHT, LH

$

$

Not available

20

Toro 109494

BEZEL-HEADLIGHT, RH

$

$

Not available
