73520 (520-H) - Toro Garden Tractor (SN: 059000001 - 059000177) (1995) FENDER AND SEAT ASSEMBLY Parts Diagram

Garden Tractor

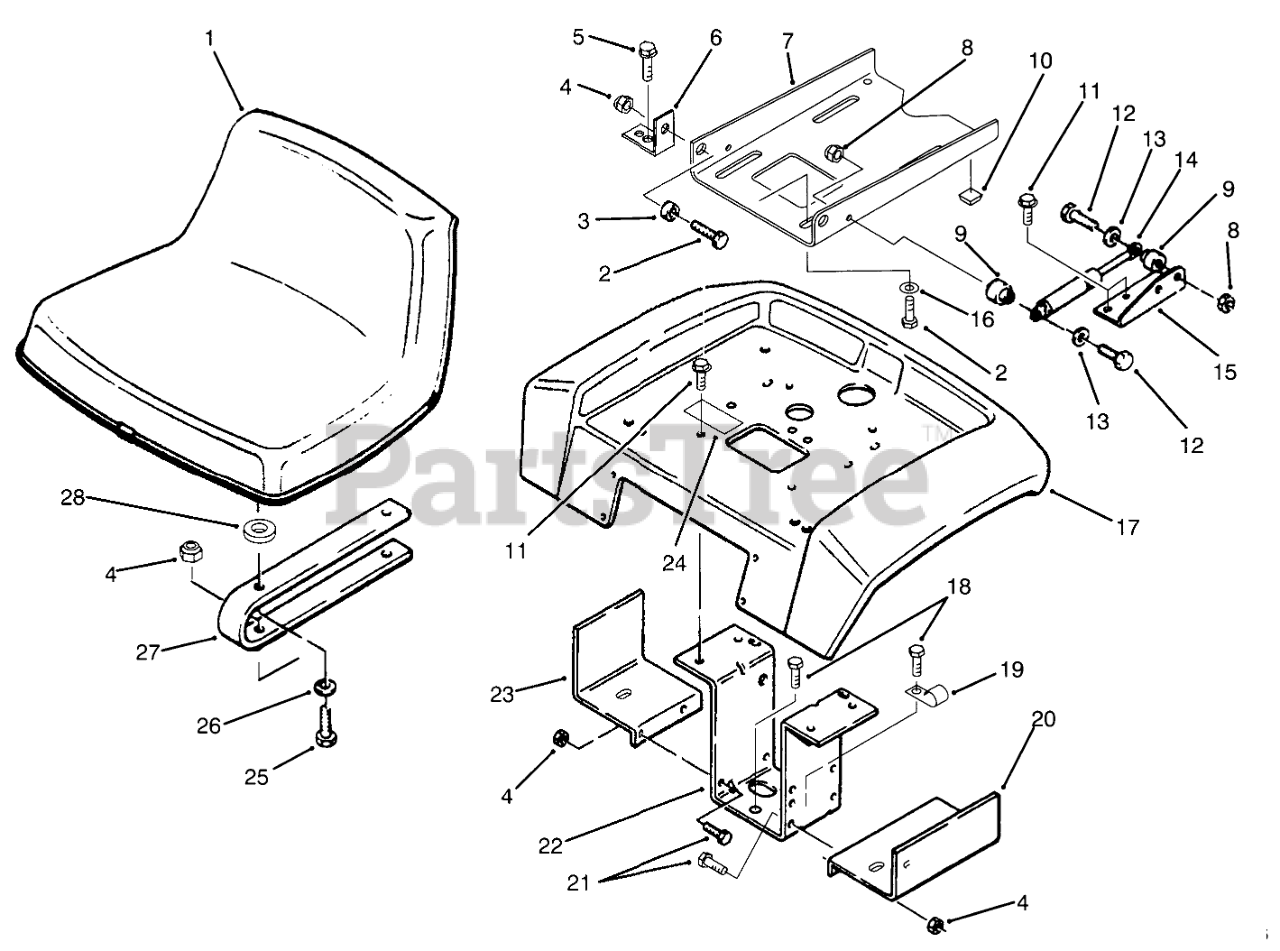

FENDER AND SEAT ASSEMBLY Parts Diagram

  • Title

1

Toro 79-0670

SEAT V-510

$

$

Not available

2

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 105503

BUSHING

$1.49

$

In Stock, Qty 7

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 926697

Bolt
(Superseded to 130-9795)

$1.49

$

Usually ships in 3-6 days

0

6

Toro 105524

BRACKET-PIVOT

$

$

Not available

7

Toro 78-2990

Plate-SeatPivot
(Superseded to 78-2990-03)

$

$

Not available

8

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 10

0

9

Toro 114344

SPACER

$2.49

$

Usually ships in 3-6 days

0

10

Toro 111071

BUMPER SJ5514 BLACK

$3.49

$

In Stock, Qty 5

0

11

Toro 926694

SCREW

$

$

Not available

12

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 9

0

13

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 114343

GAS SPRING

$133.99

$

In Stock, only 1 left!

0

15

Toro 114345

BRACKET-CYLINDER R

$

$

Not available

16

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

17

Toro 16-0079

Fender
(Superseded to 94-3722-01)

$

$

Not available

18

Toro 3235-22

SCREW-HH, LOCK

$2.99

$

In Stock, only 2 left!

0

19

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

20

Toro 108464

Fuel Tank Support LH
(Superseded to 108464-03)

$38.99

$

Usually ships in 3-6 days

0

21

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

22

Toro 79-4990

Bracket-Fender
(Superseded to 79-4990-03)

$126.99

$

Usually ships in 3-6 days

0

23

Toro 106236

Support-FueITank RH
(Superseded to 94-6692-03)

$53.99

$

Usually ships in 3-6 days

0

24

Toro 116446

DECAL-DO NOT TOW

$7.49

$

In Stock, only 1 left!

0

25

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

26

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

27

Toro 110920

Seat Spring
(Superseded to 110920-03)

$195.99

$

Usually ships in 3-6 days

0

28

Toro 109989

SPACER-NYLON

$5.49

$

In Stock, only 2 left!

0
